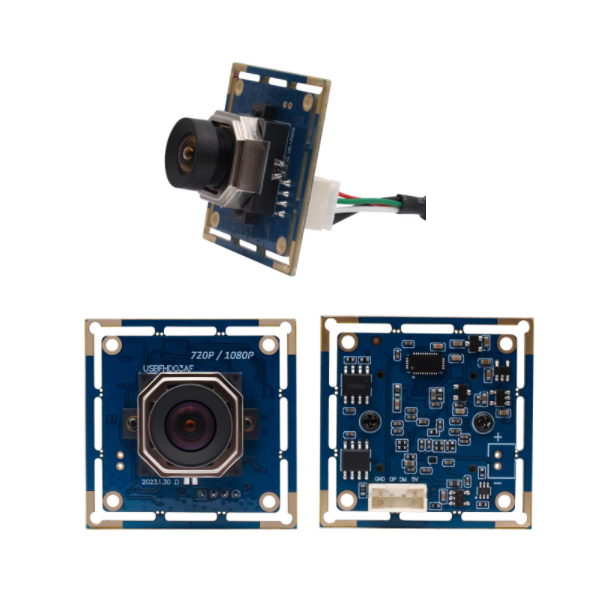

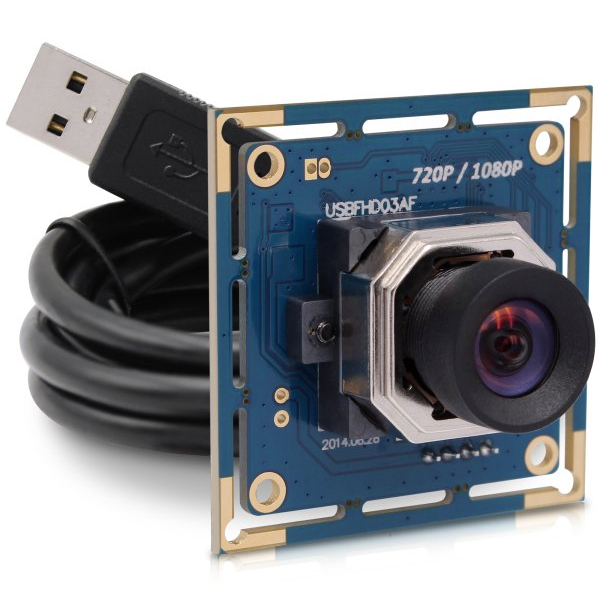

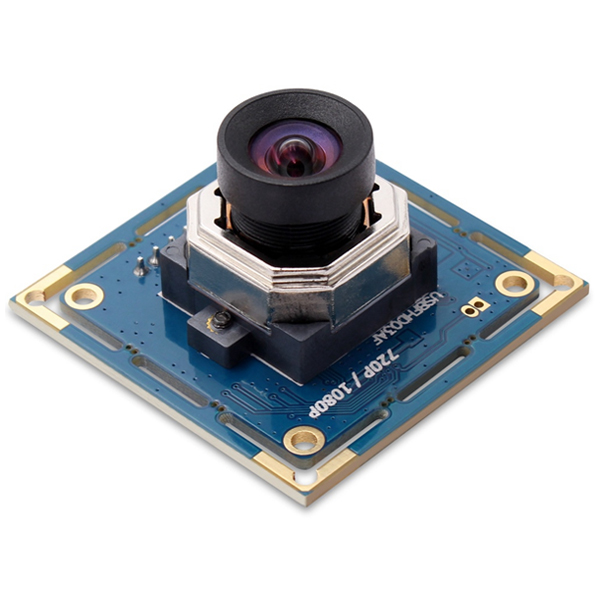

1080P 30fps Auto Focus USB Camera No Distortion Lens Machine Vision USB Industrial Camera
Product Features
*Full HD 1080P 2Mega pixels USB Camera
*FOV(D)100 Degree Lens with AUTOFOCUS MOTOR
*Can drive 30fps@1080P
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Description:
1080P 30fps Auto Focus USB Camera No Distortion 720P 60fps 480P 100fps AutoFocus Machine Vision USB Industrial Camera
* 2Megapixel Full HD 1080P USB Camera module with USB 2.0 interface
* Autofocus USB Camera with 1/2.7″ OV2710 CMOS Sensor
* Mjpeg YUY2 Camera module With Autofocus
* USB Camera autofocus, with standard 1m cable (2m, 3m, 5m optional).
* Mini micro USB Camera for Android/ WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC
* Autofocus Camera USB, Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.
Package Include

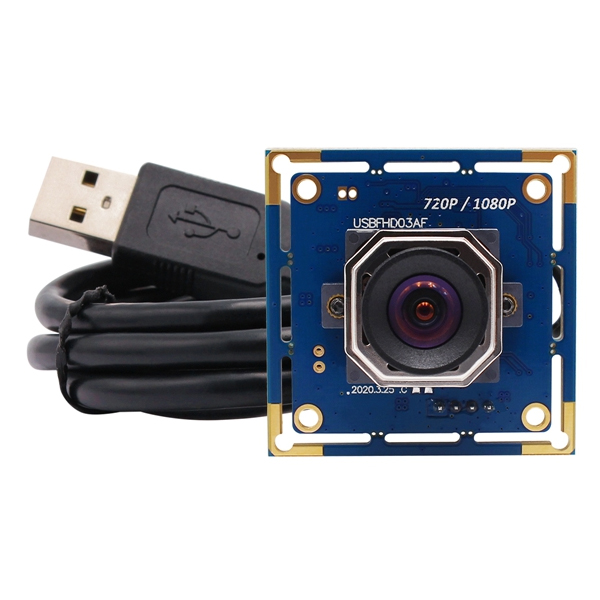

1pc of 2MP Autofocus USB Camera with no distortion lens
1pc of 1m USB Cable supplied
Specifications:
Model | SMK-USBFHD03AF-A100 |
Sensor | CMOS OV2710 |
Sensor Size | 1/2.7 inch |
| Pixels Size | 3µm x 3µm |
| Image Area | 5856μm x 5856μm |
| Max. Resolution | Full HD , 1920(H)*1080(V) |
Compression format | MJPEG / YUY2(YUYV) |
Resolution & frame | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| Special Function | Lens correction/Defective pixel correction/Black sun cancellation |
| Mini illumination | 0.05 Lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
USB Protocol | USB 2.0 HS/FS |
| Connection Port Type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
AEC | Support |
AWB | Support |
| AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure, Backlight contrast . |
Lens Parameter | No distortion L100 lens, FOV about 100 degree.,Autofocus |
| LED Board power connector | Support 2P-2.0mm socket |
Power supply Interface | USB BUS Power 4P-2.0mm socket |
Operating Voltage | DC 5V |
Working current | 120mA – 220mA |
Storage Temperature | -20～75℃ |
Working temperature | 0～60℃ |
Board size /Weight | 38 x 38mm (Compatible 32x32mm)/ About 30g |
Cable equipments | Standard 1m (Optional 1m,3m,5m ) |
Operating system request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC |
