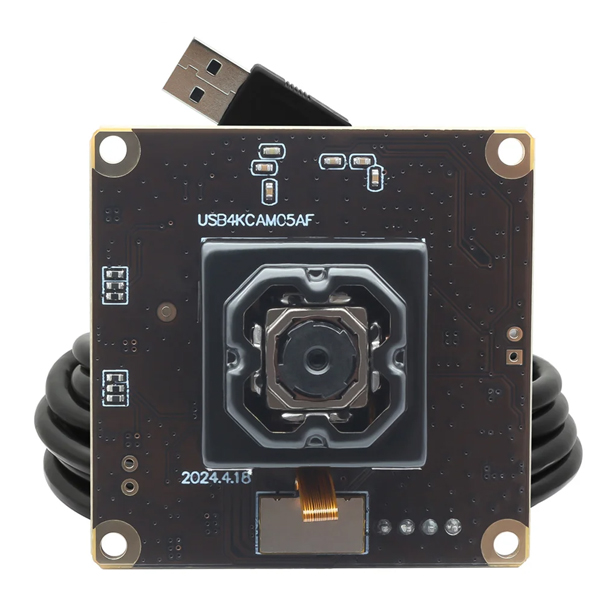

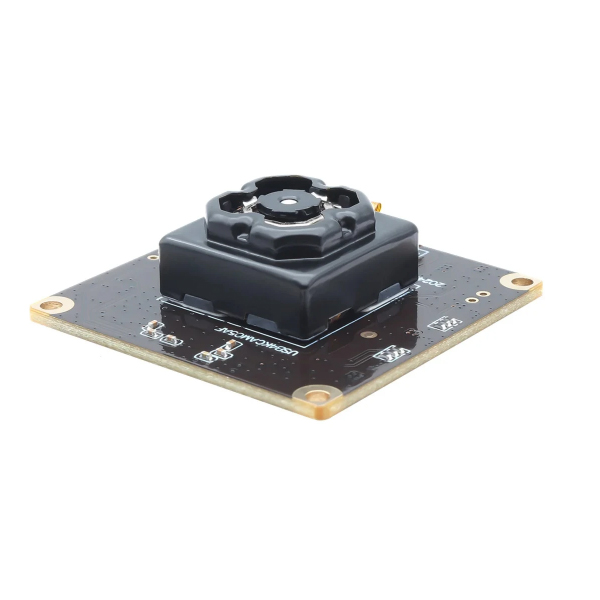

11MP OIS Anti-Shake Autofocus USB Camera Module 4K 30fps No Distortion Lens
Product Features
*High Definition 11 Megapixels Max Resolution 3840(H)*2880(V)
Description:
Anti-Shake USB Camera With Autofocus No Distortion Lens 4K 30fps Webcam
*Based on the Anti-shake structure and autofocus motor lens, Cameras with image stabilization reduce the number of wasted shots due to shake, enhancing shooting efficiency.
*Image stabilization cameras are particularly suitable for handheld shooting, low-light environments, telephoto photography, and long exposure shots.
*Adopt 1/3.06 inch Color Sony IMX258 image sensor, the image resolution up to 11megapixels 3840×2880, enabling more accurate color rendition and detail capture, enhancing the overall image quality.
*High Speed 11MP 2880P 15fps; 4K 2160P 30fps, well used for the scenarios that requiring fast capture of fleeting moments, such as sports photography or wildlife photography
Package Include :
1pc of 11MP Anti-Shape USB Camera Module with autofocus lens
1pc of 1meter USB Cable .
Features
- High Definition 11Megapixels max resolution 3840(H)*2880(V)
- Anti Shake – Optical Image Stabilization OIS with Micro Gimbal Stabilizer (MGS), ensure the picture always remains clear and stable during vibration or shaking
- Color Image Sensor Sony IMX258 CMOS 1/3.06inch
- High Frame Rare 4K 3840X2160 30FPS, 3840X2880 15FPS
- Auto Focus – Automatically focus clear at different distances, no need to adjust the lens.
- No Distortion Lens – With mini 90 degree No distortion Lens
- Adjustable Parameters – available to adjust parameters accoding to your needs, like Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, WhiteBalance, Exposure.
- Super mini camera – 38*38mm board size and lightweight for many Portable Devices
- High speed USB2.0 Interface -Plug and play ,no need any driver ,just plug to USB Port and work with the camera video software .
- OTG Support -Can work with Android development board, mobile via OTG Cable .
- High Compatibility- compatible with operation systems Android, Windows, Linux. Mac OS
- Wide Application: Vehicle monitoring,Road monitoring,Sports photography, Industrial Inspection, ICT Testing Machine, Quality Control, 3D Scanning, Remote Inspection, Crop Monitoring, Precision Agriculture, Robotic Picking, Livestock monitoring, Drone etc.
Specifications:
Model NO.: | SMK-USB4KCAM05AF-V90 | |
Image Sensor | 1/3.06” SONY IMX258 | |
Pixel Size | 1.4μm x 1.4μm | |
Max. Resolution | 3840(H) *2880(V) | |
Default Resolution | 3840(H) *2160(V) | |
Compression Format | MJPEG /YUY2 (YUYV) | |
Resolution & Frame Rate | 3840×2880@ 15fps MJPEG/ 2592×1944@ 30fps MJPEG/ 1600×1200@ 30fps MJPEG/ 1280×960@ 30fps MJPEG/ 800×600@ 30fps MJPEG /
3840×2880@ 1fps YUY2/ 2592×1944@ 1fps YUY2/ 1600×1200@ 5fps YUY2/ 1280×960@ 5fps YUY2/ 800×600@ 20fps YUY2/ | 3840×2160@ 30fps MJPEG 2048×1536@ 30fps MJPEG 1920×1080@ 30fps MJPEG 1280×720@ 30fps MJPEG 640×480@ 30fps MJPEG
3840×2160@ 1fps YUY2 2048×1536@ 3fps YUY2 1920×1080@ 5fps YUY2 1280×720@ 10fps YUY2 640×480@30fps YUY2 |
Center Definition | 800LW/PH (Center) | |
S/N Ratio | 24dB | |
Sensitivity | 0.65V/Lux-sec@550nm | |
Minimum illumination | 0.1 Lux | |
Shutter Type | Electronic Rolling Shutter / Frame Exposure | |
Connecting Port type | USB2.0 High Speed | |
AEC | Support | |
AWB | Support | |
AGC | Support | |
Auto Focus | Support | |
Adjustable Parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure | |
Lens Parameter | 90 degrees Anti-shake Auto-focus Lens | |
Power Supply & Connector | USB BUS POWER 4P-2.0mm Socket | |
Power Voltage | DC 5V | |
Power Current | 240mA | |

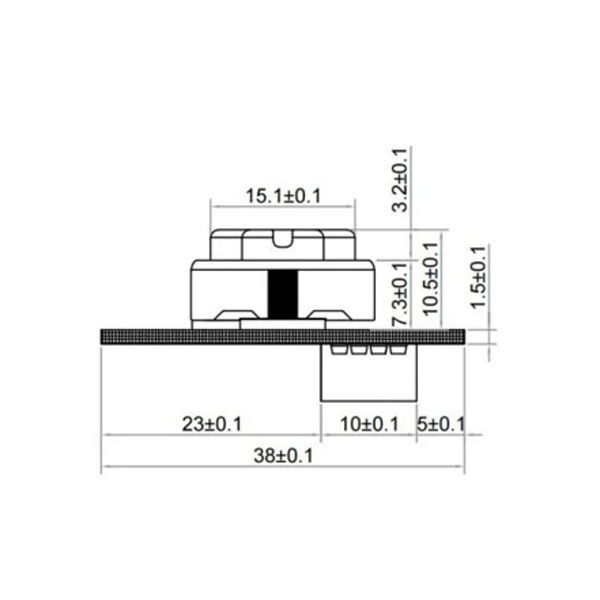

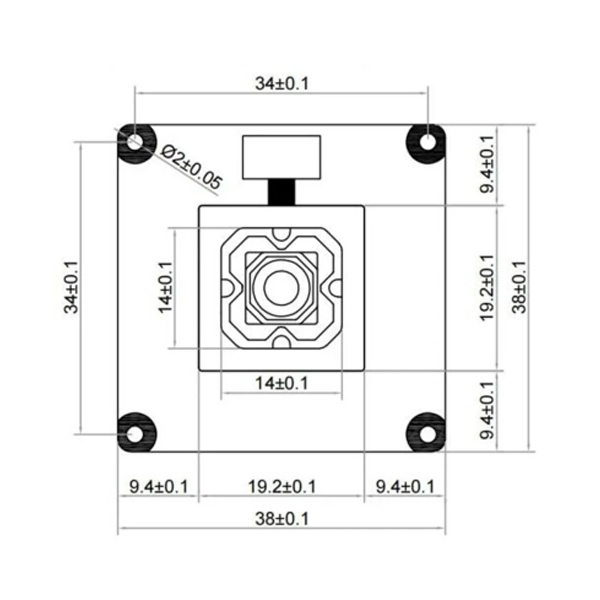

Board Size | 38mmx38mm | |
Storage Temperature | -10°C to 75°C | |
Working Temperature | -10°C to 65°C | |
USB Cable | 1M(2M/3M/5M… optional) | |
Operating System Support | Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC OS X 10.4.8 or later Android 4.0 or above with UVC | |
