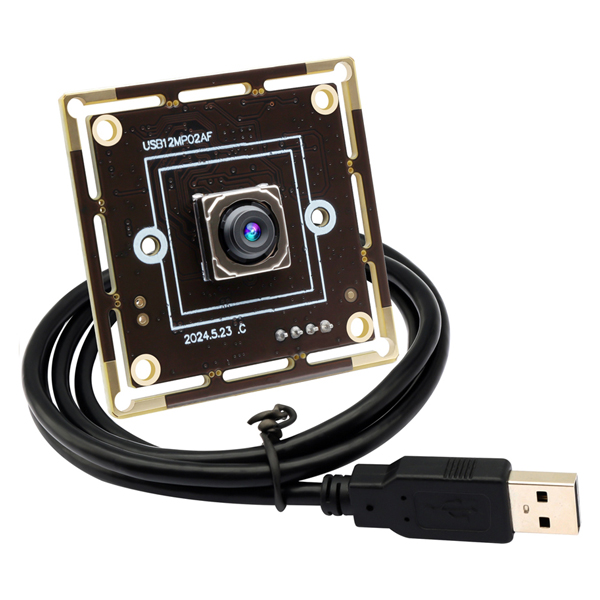

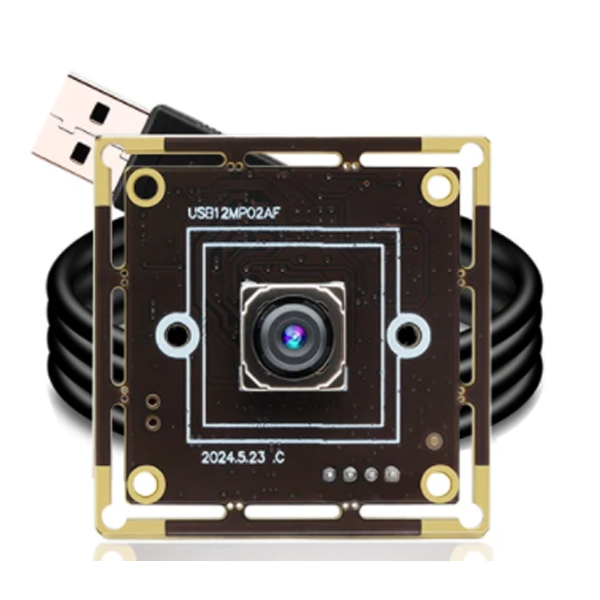

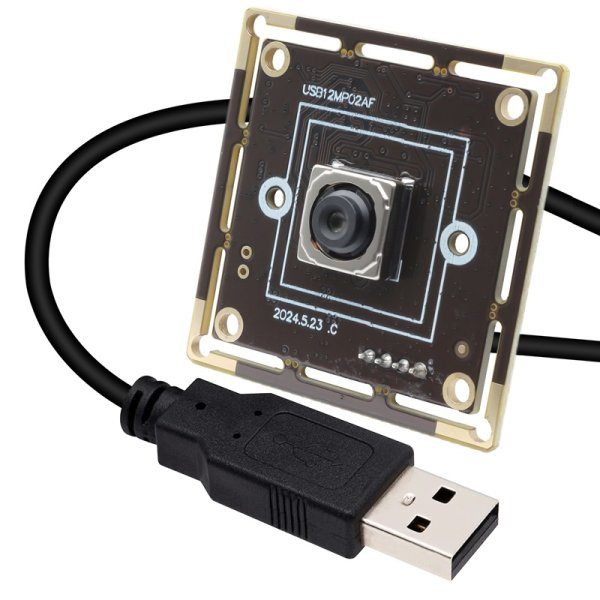

12MP IMX362 Autofocus Mini Lens PDAF Fast Focus 200ms/300ms USB Camera Module

12MP IMX362 Autofocus Mini Lens PDAF Fast Focus 200ms/300ms USB Camera Module

Product Features

* 1/2.55″ CMOS IMX362 Sensor

* Max Resolution: 4000(H) X 3000(V) 12 Megapixel

* 4000×3000 MJPEG@15fps, 3840×2160 MJPEG@30fps, 1920×1080 MJPEG@60fps

* Lens: Autofocus lens, 76 degree, PDAF fast focus speed: about 200ms at 60fps/ 300ms at 30fps

* Board size 38x38mm, small size, easy to embedded in kinds of smart machines.

* Standard with 1m cable (0.3m/0.5m/2m/3m/5m…optional)

* Free driver, Plug & Play

* Exposure, Hue, White Balance, Contrast, Gamma, Brightness….Parameters adjustable.

* Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…

* Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time…)

* OTG support

Description:

12MP USB Camera Module with IMX362 Sensor High Speed 30fps 4K Autofocus PDAF (300ms Fast Focus), 1080P 60fps UVC Compliant PC Webcam for Face Recognition

12Megapixel USB Camera Module, high resolution, Max resolution 4000X3000.
Fast frame 4K@30fps, 1080P@60fps for quick moving objects capturing.
1/2.55” IMX362 sensor for high-quality image and low power consumption.
Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
Focus Speed About 200ms at 60fps/ 300ms at 30fps.
HD Megapixel 65degree AF low distortion lens, Focus: 3.3mm, DFOV: about 76 Degree , HFOV: about 65 Degree.
Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional.
High speed USB 2.0 interface for high resolution PC camera interface.
USB Interface , Plug & Play. No need any drivers. Just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.
UVC-compliant, Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

Package include :

1 Piece of 12MP IMX362 USB Camera with 65Degree AF Lens ,

1 piece of USB Cable supplied.

Specifications:

Model	SMK-USB12MP02AF-V65
Sensor	CMOS IMX362
Sensor Size	1/2.55 inch
Pixel Size	1.4um x 1.4um
Image Area	6.8mm x 5.67mm
Max. Resolution	4000(H) X 3000(V) 12 Megapixel
Default Resolution	4000(H) X 3000(V)
Compression Format	MJPEG / YUY2 (YUYV)
Auto Focus Mode	PDAF Mode
Focus Speed	About 200ms at 60fps/ 300ms at 30fps
Resolution & Frame Rate	4000 x 3000 MJPEG@15fps 3840 x 2160 MJPEG@30fps 2592 x 1944 MJPEG@30fps YUY2@3fps 2560 x 1440MJPEG@30fps YUY2@3fps 2048 x 1536 MJPEG@30fps YUY2@3fps 1920 x 1080 MJPEG@60fps YUY2@5fps 1600 x 1200 MJPEG@45fps YUY2@5fps 1280x 1024 MJPEG@60fps YUY2@10fps 1280 x 720 MJPEG@60fps YUY2@10fps 800 x 600 MJPEG@45fps YUY2@25fps 640 x 480 MJPEG@45fps YUY2@25fps 640 x 360 MJPEG@60fps 320 x 240 MJPEG@45fps YUY2@25fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	Autofocus Lens Focus: 3.3mm, no distortion DFOV: about 76 Degree , HFOV: about 65 Degree

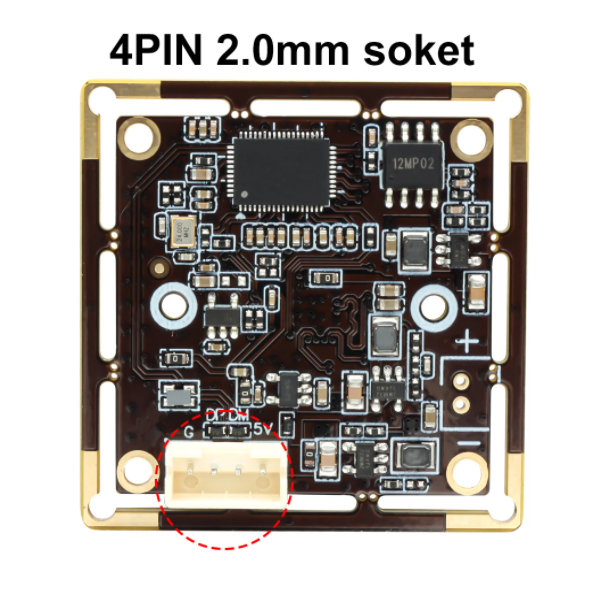

Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	160mA~ 180mA
Working Temperature	-20~60℃
Storage Temperature	-20~85℃

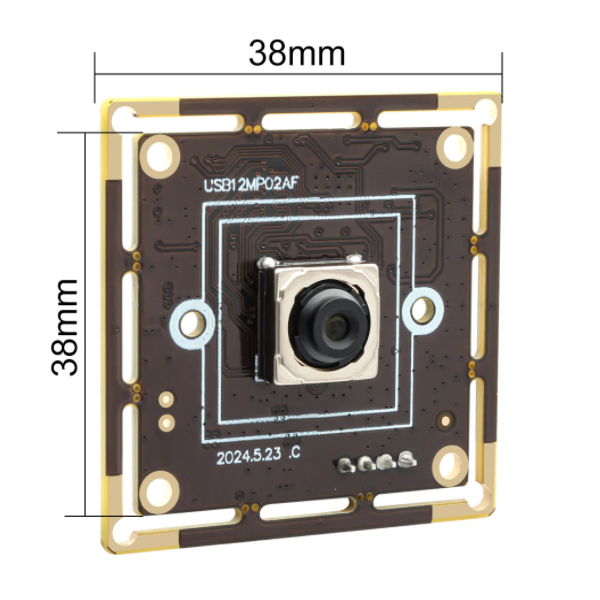

Board Size /Weight	38X38mm (Compatible 32X32mm) / about 30g
Cable	Standard 1m / Optional 2m,3m,5m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
