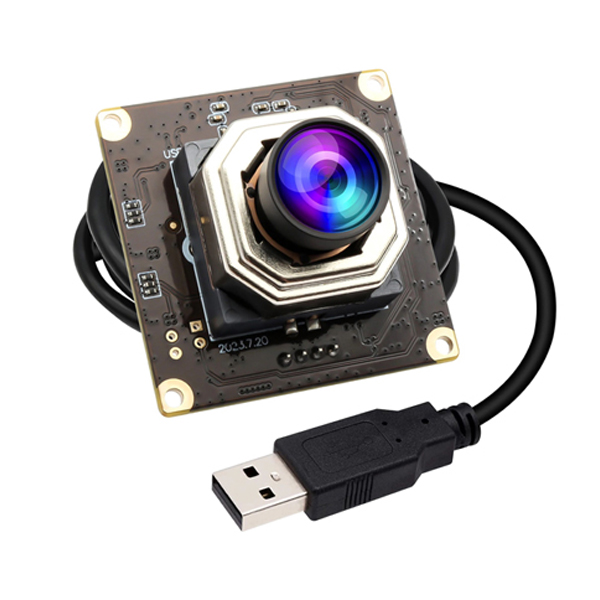

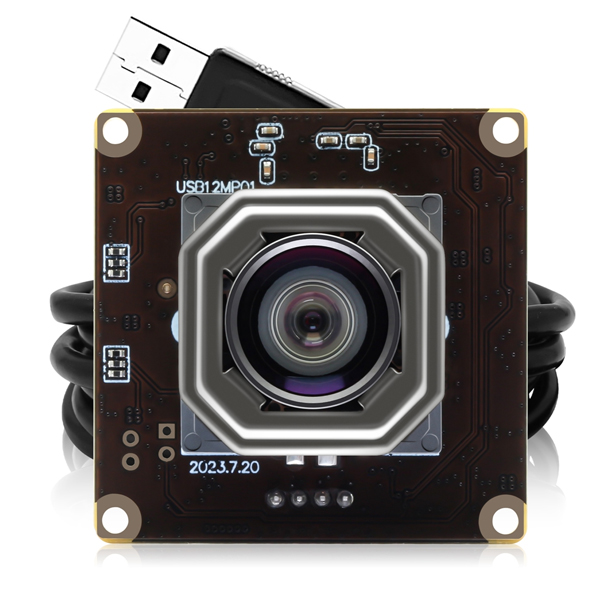

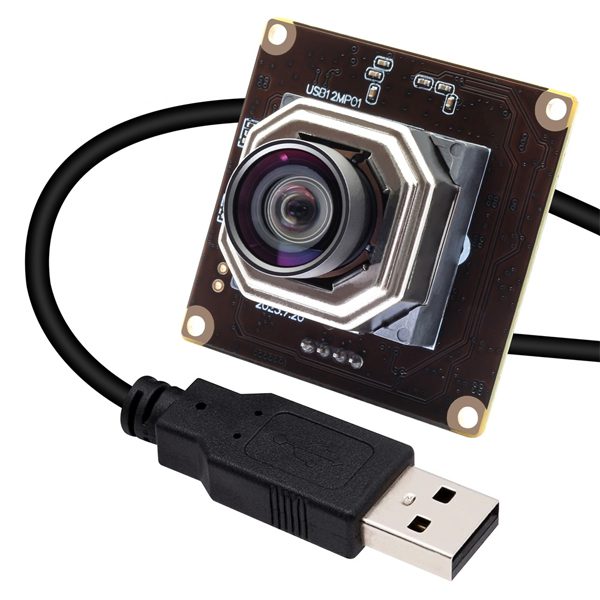

12MP IMX577 Autofocus High Frame 30fps 120fps Mini USB Camera No Distortion Lens

12MP IMX577 Autofocus High Frame 30fps 120fps Mini USB Camera No Distortion Lens

Product Features

* 1/2.3″ SONY IMX577 Sensor

* Max Resolution:3840(H)*3040(V) 11.6MP

* 3840×3040 MJPEG@20FPS, 3840×2880 MJPEG@20FPS, 3840×2160 MJPEG@30FPS, 1920×1080 MJPEG@120FPS

* Lens: Autofocus lens, 88 degree

* Board size 38x38mm, small size, easy to embedded in kinds of smart machines.

* Standard with 1m cable (0.3m/0.5m/2m/3m/5m…optional)

* Free driver, Plug & Play

* Exposure, Hue, White Balance, Contrast, Gamma, Brightness….Parameters adjustable.

* Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…

* Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time…)

* OTG support

Description:

12MP IMX577 Autofocus Camera High Frame 30fps 120fps Golf Swing Machine Vision AF Mini USB Camera With No Distortion Lens

Model: SMK-USB12MP01-AFV100

Package include :

1 Piece of 12MP IMX577 USB Camera with Autofocus Lens No Distortion ,

1 piece of USB Cable supplied . (standard 1meter )

Lens Optional : (All are no distortion lens, image without fisheye )

71degree (Model: SMK-USB12MP01-AFLC1100 Lens),

88degree (Model: SMK-USB12MP01-AFV100 Lens),

100degree (Model: SMK-USB12MP01-AFH100 Lens),

Specifications:

Model NO.:	SMK-USB12MP01-AFV100
Image Sensor	SONY IMX577 (1/2.3” )
Max. Resolution	3840(H) *3040 (V)
Sensor Size/ Image Size	10.7mmX8.5mm/5.95mmX4.71mm
Default. Resolution	3840(H) *2880(V)
Focus	Autofocus
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	3840X3040 MJPEG@20fps YUY2@1fps 3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fps YUY2@1fps 2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps 1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps 1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps 800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps 320X240 MJPEG@120fps YUY2@30fps
Center Definition	1000LW/PH (Center)
S/N Ratio	24dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.1 lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC/ AWB/ AGC	Support
Auto Focus	Support optional
Adjustable Parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure

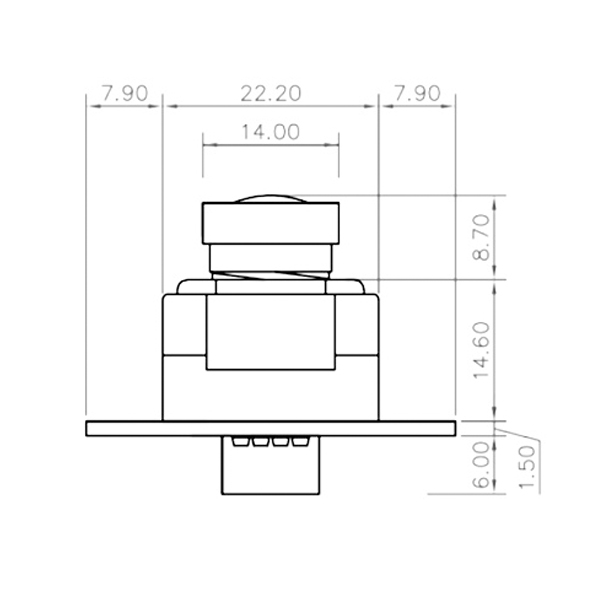

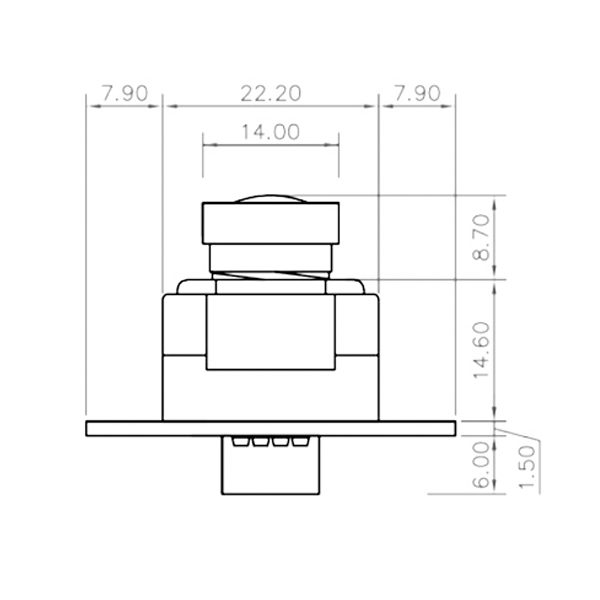

Lens Parameter	M12 Autofocus and No Distortion Lens, HFOV 88 degree/ VFOV 74 degree
Power Supply& Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC 5V
Power Current	240mA

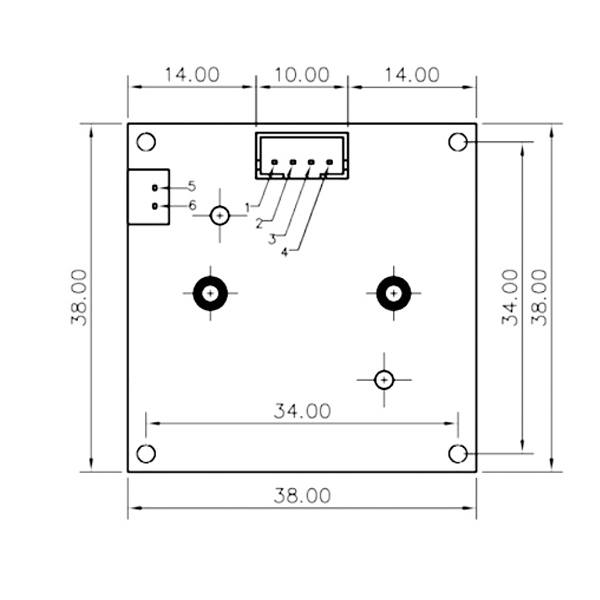

Board Size	38mm × 38mm
Storage Temperature	-20°C to 85°C
Working Temperature	-10°C to 65°C
USB Cable	1M(2M/3M/5M optional)
Operating System Support	Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
