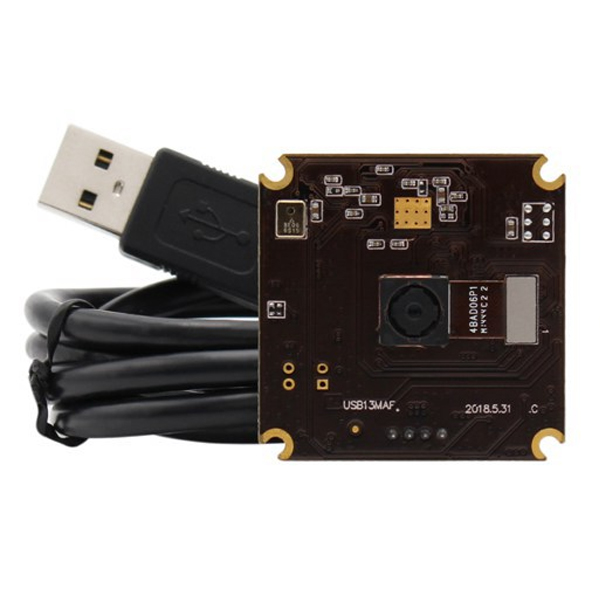

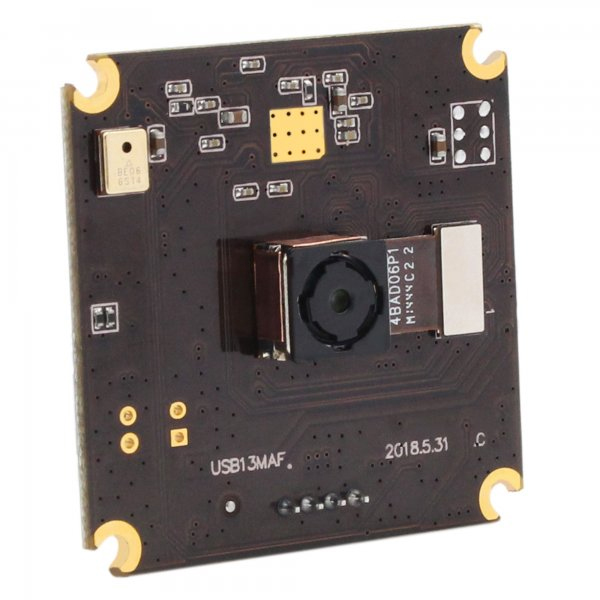

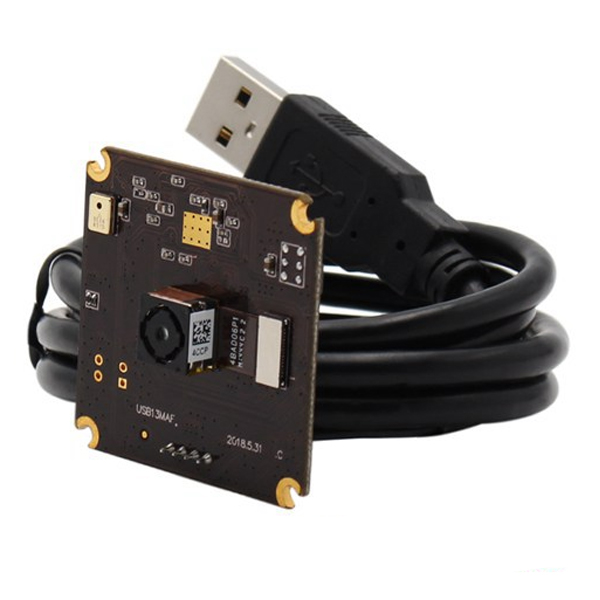

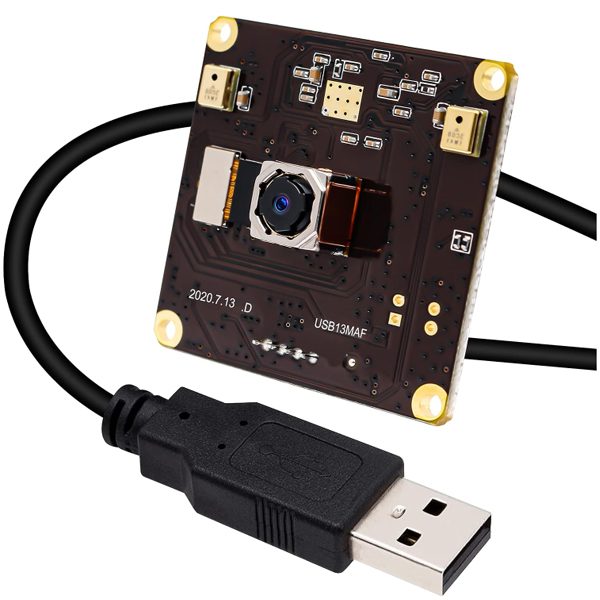

13MP IMX214 3840*2880 Autofocus UVC USB Camera module for Android Linux Windows

Product Features

*Super high resolution 13mp 3840×2880 USB autofocus camera module

*1/3″ IMX214 sensor for high quality image.

* High quality no distortion 75 degree lens .

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline 38*38mm and thin profile for embedded applications.

*High quality lens, true and undistorted color image.

*Low power consumption – ideal for portable equipment.

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android4.0 above.

Module No.	SMK-USB13MAF-V75
Sensor	IMX214 (1/3″ ) AF
Max. Resolution	3840(H) *2880 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Maximum Image Transfer Rate	3840×2880 MJPEG@15fps YUY2@1fps/ 3264×2448 MJPEG@ 20fps YUY2@1fps 3840×2160 MJPEG@ 25fps YUY2@1fps/ 2592×1944 MJPEG@ 20fps YUY2@1fps 2048×1536 MJPEG@ 30fps YUY2@3fps/ 1600×1200 MJPEG@ 30fps YUY2@5fps 1920×1080 MJPEG@ 30fps YUY2@5fps/ 1280×960 MJPEG@30fps YUY2@5fps 1280×720 MJPEG@ 30fps YUY2@10fps/ 1024 x 768 MJPEG@30fps YUY2@15fps 800 x 600 MJPEG@ 30fps YUY2@20fps/ 640×480 MJPEG@ 30fps YUY2@30fps
Focus	Auto
Object distance	8CM-100M
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class(UVC)
S/N Ratio	33dB
Shutter	Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
Lens Parameter	Size: 1/3, FOV: 75Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
LED board power connector	Support 2P-2.0mm socket

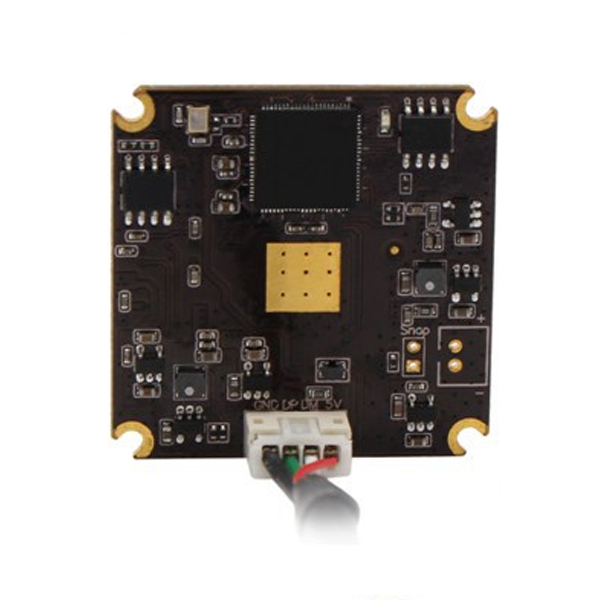

Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW

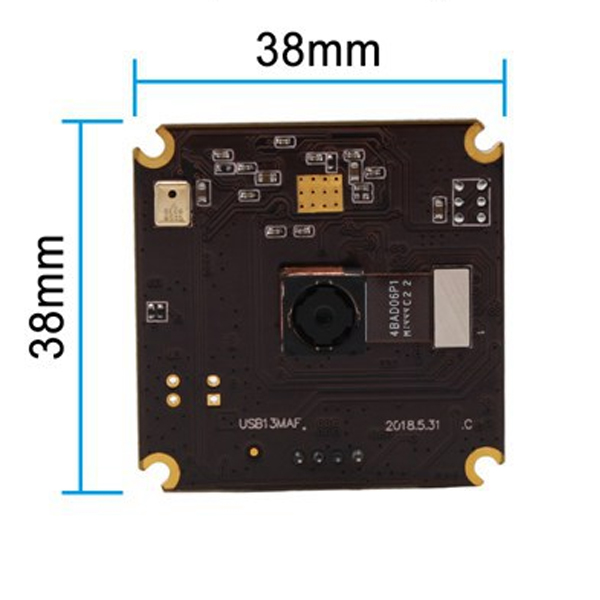

Module Size	38mm × 38mm
Storage Temperature	-20~80℃
Working Temperature	-10~70℃
USB Cable	Standard 1m / Optional 2m,3m,5m…
Operating system request	Win XP/Vista/Win7/Win8 / Win9/ Win10/Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
