16MP IMX298 Autofocus Camera with Microphone 100Degree No Distortion Lens

16MP IMX298 Autofocus Camera with Microphone 100Degree No Distortion Lens

Product Features

*Sensor: 1/2.8” IMX298 Sensor

*High Resolution: 6456×3496 (16 megapixel)

*Dimension: 62.3x9x5.5mm

*Autofocus: Auto Focus with 100 degree No distortion lens, FOV 97 degree, (68 degree lens optional)

*USB Cable: with 1m USB Cable

*Parameters Adjustable: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure…

*Free Driver: UVC, Driver Free, Plug & Play

*Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…

Description:

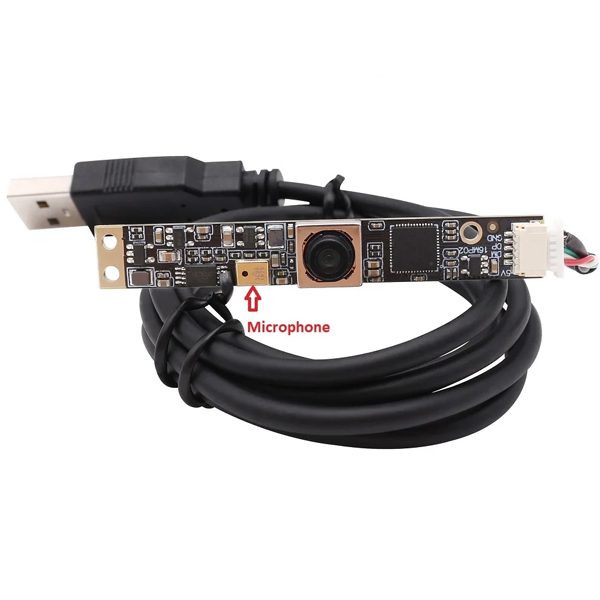

16MP Autofocus Camera Module Support Microphone 100Degree Non Distortion Wide Angle Super Mini USB2.0 Embedded Industrial Slim Board Module Camera for Eye Tracking and Face Recognition

1) More than HD ,high definition Max. still resolution 4656 x 3496 : This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction,

2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

3) Super mini AF Lens Autofocus camera module : This camera module has a AF Lens, transmitting the most realistic image effect.

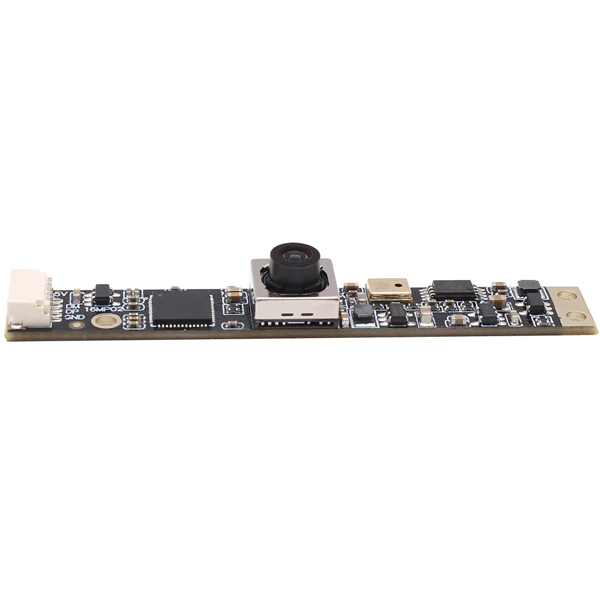

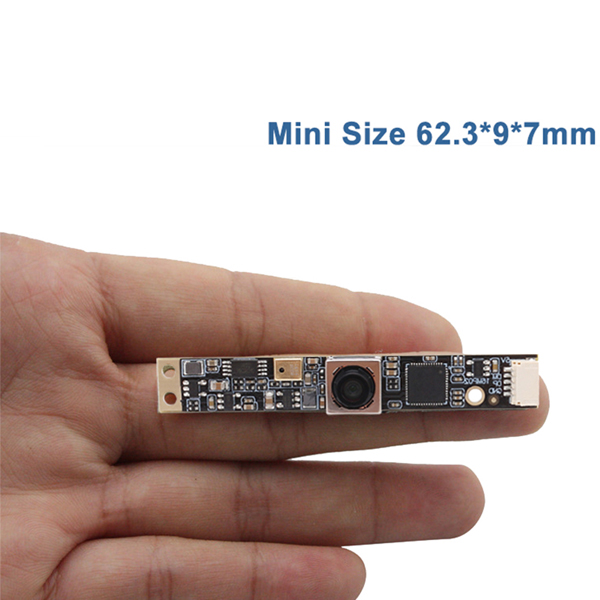

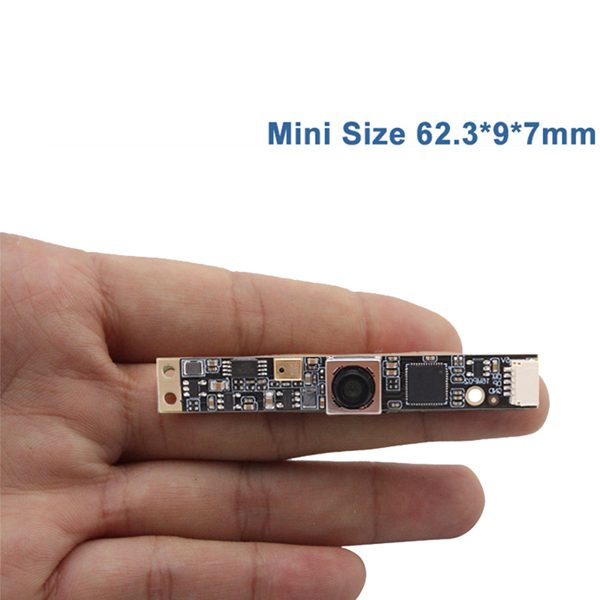

Mini Size: 62.3*9*5.5mm mini usb strip camera board

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

5) Widely Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other vision

Package Includes:

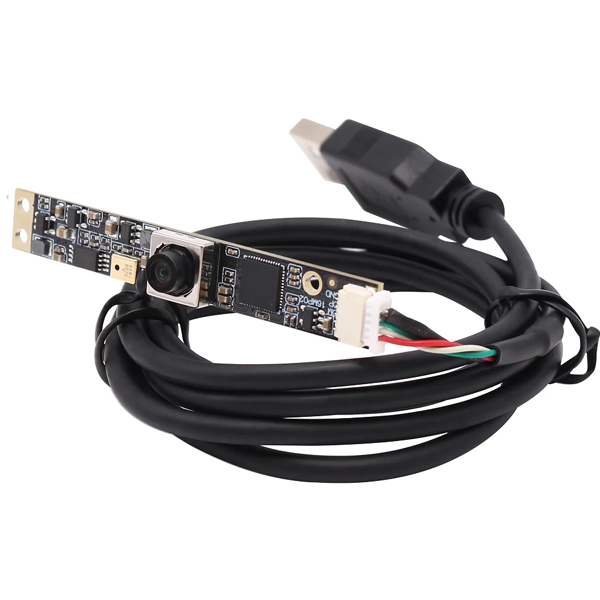

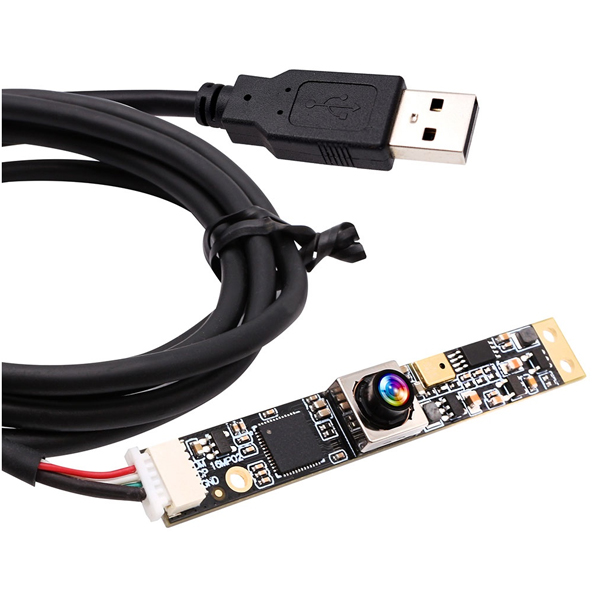

*1 Piece of 16MP IMX298 USB Camera with AF lens non distortion

*1Piece 1m USB Cable

Optional Models

SMK-USB16MP02-AF68 (HFOV about 68°)

SMK-USB16MP02-AF100 (HFOV about 100°)

Specifications:

Model	SMK-USB16MP02-AF100
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um x 1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG@10fps YUY2@1fps 4208 x 3120 MJPEG@10fps 4160 x 3120 MJPEG@10fps 4000 x 3000 MJPEG@10fps 3264 x 2448 MJPEG@10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps 2320 x 1744 MJPEG@15fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps 1920 x 1080 MJPEG@30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps 1280 x 960 MJPEG@30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps 1024 x 768 MJPEG@30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps 640 x 480 MJPEG@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	100 degree no distortion lens, HFOV 97 degree (68 degree lens optional)
Power Supply	USB BUS POWER 4P-1.0mm Socket
Digital Audio	Support
Operating Voltage	DC 5V
Working Current	150mA~280mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size /Weight	62.3 x 9 x 7mm / about 20g
Cable	Standard 1m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
