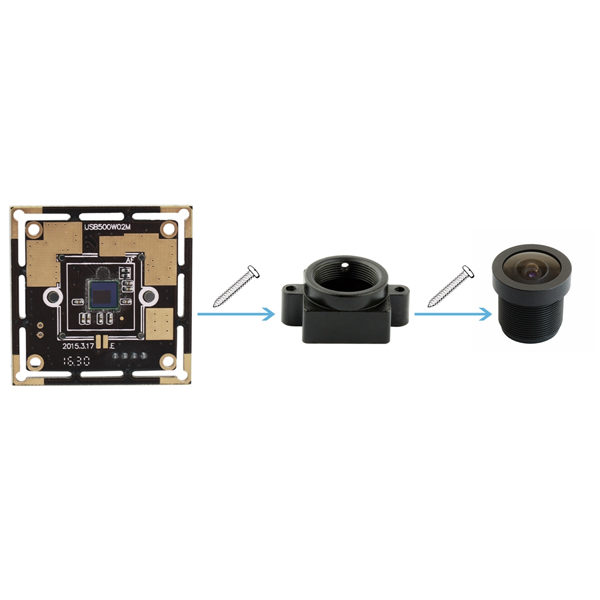

2.1mm Wide Angle 5MP OV5640 Camera Module Driverless Embedded USB 2.0 Web Camera
Product Features
*5MP HD USB Camera Board with 1/4″ OV5640 sensor
*UP to 2592 (H) x 1944 (V) resolution
*High speed USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications. 38x38mm/32x32mm optional
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Description:
5 Megapixel HD USB Camera board free driver usb camera module with OV5640 Sensor
*5 Megapixel HD Webcam for portable video system
*1/4inch CMOS OV5640 sensor ,
*Wide angle .2.1mm lens
*2592×1944 super HD resolution for faster, smoother HD experiences
*high speed USB1.1&2.0 compatible, occupy less bandwidth
*Support Free driver, camera with UVC
*UVC Class camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*OV5640 USB Cameras Do NOT Support OTG
Optional Models
SMK-USB500W02M-L21 (2.1mm)
SMK-USB500W02M-L28 (2.8mm) SMK-USB500W02M-L36 (3.6mm)
SMK-USB500W02M-L60 (6mm) SMK-USB500W02M-L80 (8mm)
SMK-USB500W02M-L12 (12mm) SMK-USB500W02M-L100 (No distortion lens)
SMK-USB500W02M-L170 (fisheye lens, HFOV about 140-150 degree)
All above models, specifications are same, just lens different
Specifications:
Module No. | SMK-USB500W02M-L21 |
Sensor | OV5640 (1/4inch ) |
Max. Resolution | 2592 (H) *1944 (V) |
Sensitivity | 600mV/ Lux-sec |
Pixel Size | 1.4µm x1.4µm |
Image area | 3673.6µmx2738.4µm |
Maximum Image Transfer Rate | 2592×1944@ 15fps MJPEG / 2048×1536@ 15fps MJPEG 1600×1200@ 15fps MJPEG / 1920×1080@ 15fps MJPEG 1280×1024@15fps MJPEG/ 1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG |
Camera Board Assembly technique | SMT (ROSH) |
Object distance | 5CM-100M |
Resolution | 600LW/PH (Center) |
interface | USB 2.0 High Speed |
protocol | USB Video Class（UVC） |
S/N Ratio | 36dB |
Dynamic Range | 68dB |
Shutter | Rolling shutter/ frame exposure |
Package | CSP, Bare Die |
AGC/AEC/AWB/ABF | Auto |
Output Formats | YUYV/MJPEG |
Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |
Package | LQFN-40pin |
Lens Parameter | Standard 2.1mm, optional 2.5/2.8/3.6/6mm/ FOV(D)170 Degree |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Power consumption | 150mW （VGA）; 200mW （QSXGA）; |
Module Size | 38mm × 38mm （compatible 32X32mm） |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 60°C |
USB Cable | 1M(2M/3M/5M Optional) |
Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Certifications | FCC and CE |
