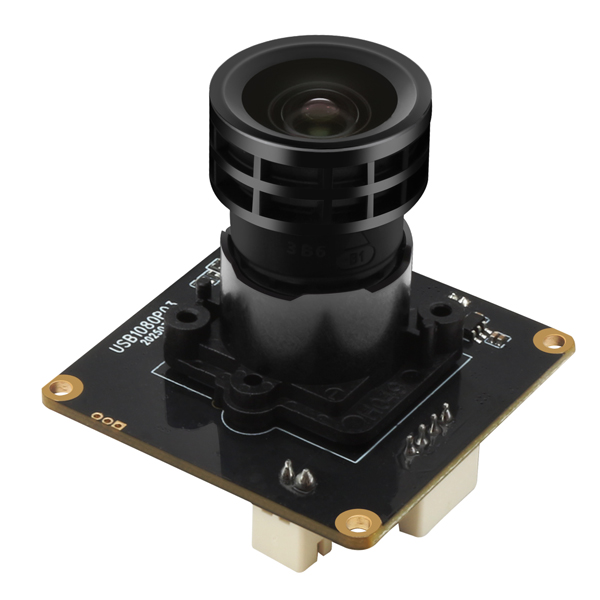

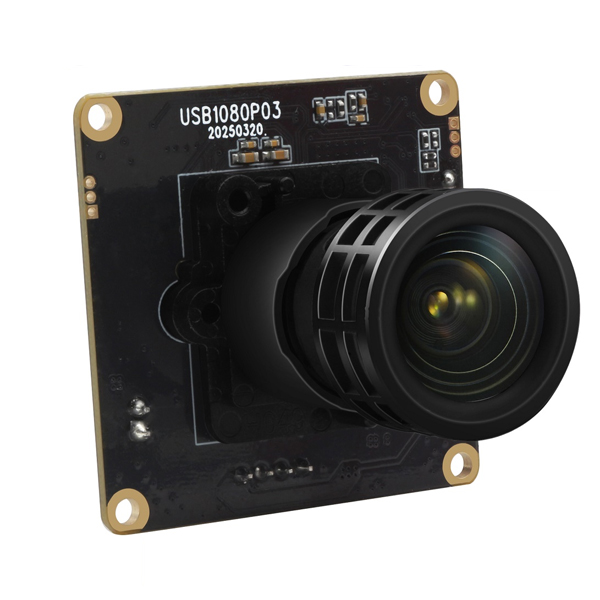

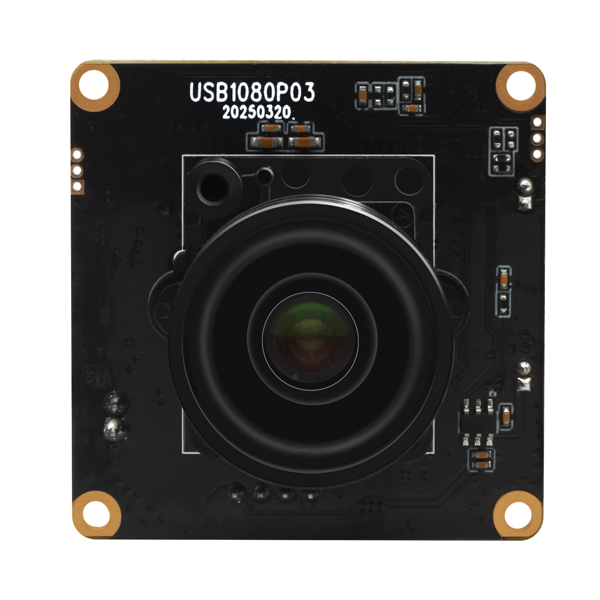

2MP 2K Starvis Low Light 1080P USB Camera Module with HD M16 Mount 4mm Lens
Product Features
*Sensor: 1/1.8” SmartSens SC2210 Starvis CMOS
*Max Resolution: 1920×1080 MJPEG 30fps/ H.264 30fps
*Video Formats: MJPEG / H.264 / YUY2 (UVC)
*Low Illumination: 0.0001Lux, Super Low Light Performance
*HD M16 Mount 4mm lens, HFOV about 95 Degree
*HDR Support: High Dynamic Range, Up to 100dB
*38x38mm, small size, easy to embedded in kinds of smart machines.
*Standard with 1m cable (2m/3m/5m…optional)
*Free driver, Plug & Play
*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…OTG support
*Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time…)
Starvis Low Light Camera Module 0.0001Lux H.264 30fps 1080P USB Camera 100dB SNR for UAVs/Vehicles(F=1.0, 4mm Lens)
High Sensitivity 2K Starvis USB Camera Module, Model: SMK-USB1080P03 series is
This starvis camera is equipped with a high-sensitivity 1/1.8” SC2210 Starvis sensor for ultra low-light imaging.
It supports 1080P resolution, high dynamic range, and multiple video compression formats including MJPEG, YUY2, and H.264. Ideal for AI vision, industrial inspection, and low-light monitoring systems.
UVC compaliant USB 2.0 cameras. No extra drivers are needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera.
Why choose an H.264 camera?
Package includes:
1PC of 2MP Low light Camera with M16 Mount 4mm lens ,
1pc of USB Cable length default 1m
Specifications:
|
Model |
SMK-USB1080P03-F1L4 |
|
Sensor |
1/ 1.8” SmartSens SC2210 |
|
Max Resolution |
1920(H)*1080(V) |
|
Sensitivity |
1.08V/lux-sec |
|
Pixel Size |
4.0 µm x 4.0 µm |
|
Video Compression |
MJPEG / YUY2(YUYV) / H.264 |
|
Resolution & Frame Rate |
1920×1080 MJPEG 30fps/ H.264 30fps / YUY2 5fps 1280×720 MJPEG 30fps/ H.264 30fps / YUY2 10fps 1024×576 MJPEG 30fps/ H.264 30fps / YUY2 15fps 960×540 MJPEG 30fps/ H.264 30fps / YUY2 15fps 640×480 MJPEG 30fps/ H.264 30fps / YUY2 30fps 640×360 MJPEG 30fps/ H.264 30fps / YUY2 30fps |
|
Image Processing Time |
About 5 seconds after opening the preview software |
|
Central Definition |
1000LW/PH(Center) |
|
S/N Ratio |
UP to 100dB |
|
Min illumination |
Minimum to 0.0001Lux |
|
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
|
Connecting Port Type |
USB2.0 High Speed |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
|
Lens Parameter |
M16 mount 4mm lens, HFOV about 95 degree, VFOV about 51 degree; (M16 lens: 2.8mm, 6mm Lens; M12 S-mount lens: 2.8mm, 4mm, 6mm lens; M12 lens: 12mm, 16mm, 25mm lens; no distortion lens; fisheye lens; CS Mount: 3.6-10mm, 5-50mm Lens optional) |
|
Power Supply & Connector |
USB BUS POWER 4P-2.0mm Socket |
|
Operating Voltage |
DC 5V |
|
Working Current |
150-180mA |
|
Dimension |
38x38mm |
|
Storage Temperature |
-20°C to 80°C |
|
Working Temperature |
-10°C to 70°C |
|
USB Cable |
1M(2M/3M/5M optional) |
|
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above |
Lens options
M12 S-mount Lens:
SMK-USB1080P03-F16L28 (2.8mm lens, HFOV 110 degree) SMK-USB1080P03-F16L4 (4mm lens, HFOV 88 degree)
SMK-USB1080P03-F16L6 (6mm lens, HFOV 60 degree)
M16 Mount Lens:
SMK-USB1080P03-F1L28 (2.8mm lens, HFOV 110 degree) SMK-USB1080P03-F1L4 (4mm lens, HFOV 95 degree)
SMK-USB1080P03-F1L6 (6mm lens, HFOV 59 degree)
M12 Mount Lens:
SMK-USB1080P03-L12 (12mm lens, HFOV 35 degree) SMK-USB1080P03-L16 (16mm lens, HFOV 28 degree)
SMK-USB1080P03-L25 (25mm lens, HFOV 16 degree)
M12 No Distortion Lens:
SMK-USB1080P03-V6 (HFOV 66 degree) SMK-USB1080P03-LC1100 (HFOV 86 degree)
SMK-USB1080P03-V100 (HFOV 101 degree) SMK-USB1080P03-H100 (HFOV 117 degree)
M12 Fisheye Lens:
SMK-USB1080P03-L170 (HFOV 190 degree)
