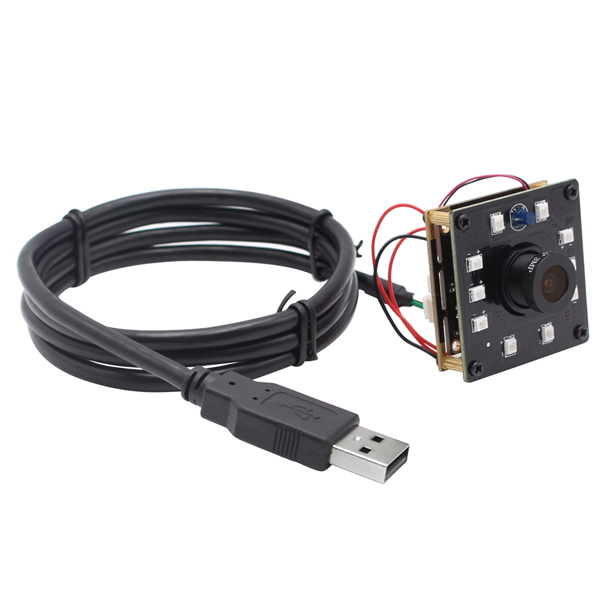

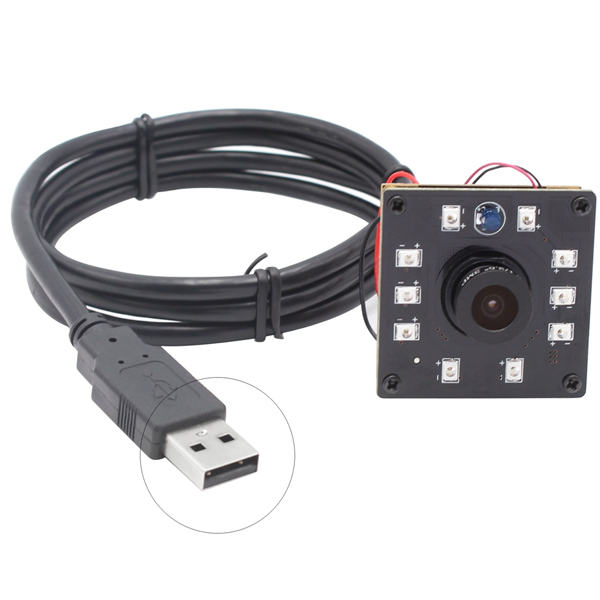

Model

SMK-USBFHD05MT-KRL36

Optional Models

SMK-USBFHD05MT-KRL21 (2.1mm)     SMK-USBFHD05MT-KRL28 (2.8mm)
SMK-USBFHD05MT-KRL36 (3.6mm)     SMK-USBFHD05MT-KRL60 (6mm)
SMK-USBFHD05MT-KIR80 (8mm)         SMK-USBFHD05MT-KRL12 (12mm)
SMK-USBFHD05MT-KRL100 (No distortion lens, HFOV about 85 degree)
SMK-USBFHD05MT-KRL170 (fisheye lens, HFOV about 140degree)
SMK-USBFHD05MT-KRL156 (fisheye lens, HFOV > 180 degree)
All above models, specifications are same, just lens different

Sensor

1/2.7 inches OV2710

Max. Resolution

FULL HD 1920(H)X1080(V)

Compression Format

MJPEG / YUV2（YUYV）

Resolution & Frame Rate

320X240 QVGA MJPEG @100fps/ 352X288 CIF MJPEG @100fps
640X480 VGA MJPEG@100fps/ 800X600 SVGA MJPEG@60fps
1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps
1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps

Special Function

Lens correction/ Defective pixel correction/ Black sun cancellation

Mini Illumination

0lux

Shutter Type

Electronic rolling shutter / Frame exposure

Sensitivity

3.7V/lux-sec@550nm

Connecting Port type

USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）

USB Protocol

USB2.0 HS/FS USB1.1/USB1.0

OTG Protocol

USB2.0 OTG

Free Drive Protocol

USB Video Class（UVC）

AEC, AEB, AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure

Lens Parameter

3.6mm lens (FOV about 90 degree, many other lens optional)

Night Vision

Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

LED board power connector

Support 2P-2.0mm socket

Power Supply

USB BUS POWER 4P-2.0mm socket

Operating Voltage

DC5V

Working Current

120mA~220mA

Working Temperature

-10～70℃

Storage Temperature

-20～85℃

Board Size

38x38mm

Cable

Standard 1m (optional 2/3/5/0.3/0.5m…)

Operating System Request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
