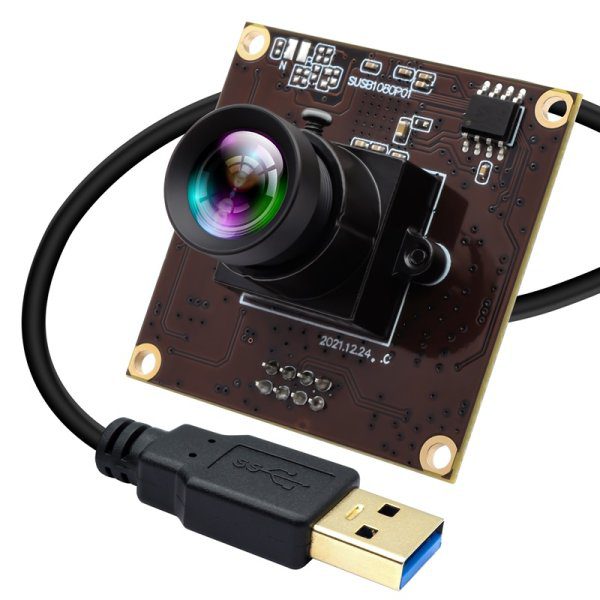

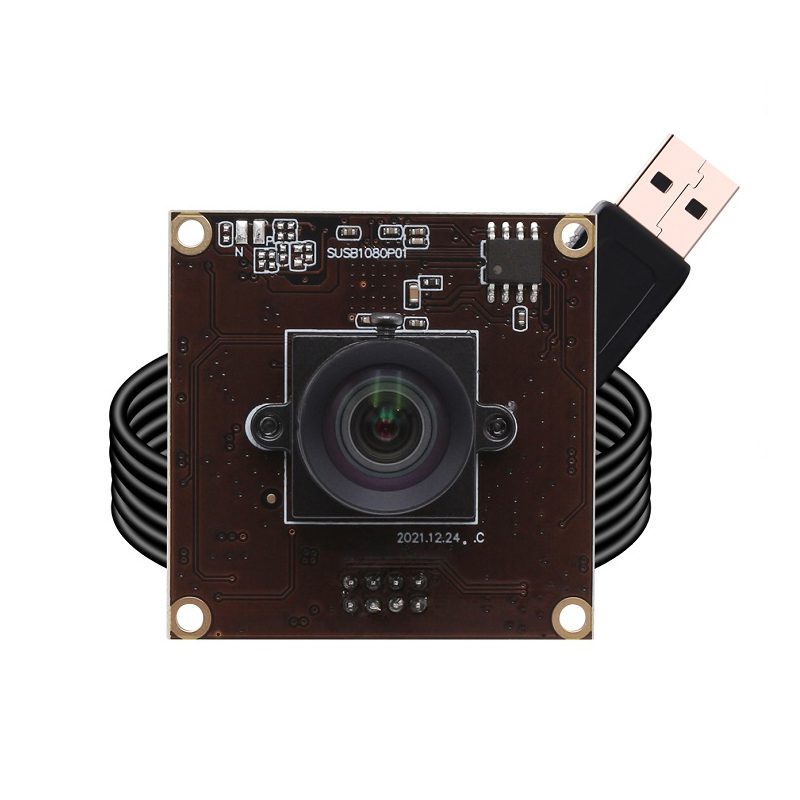

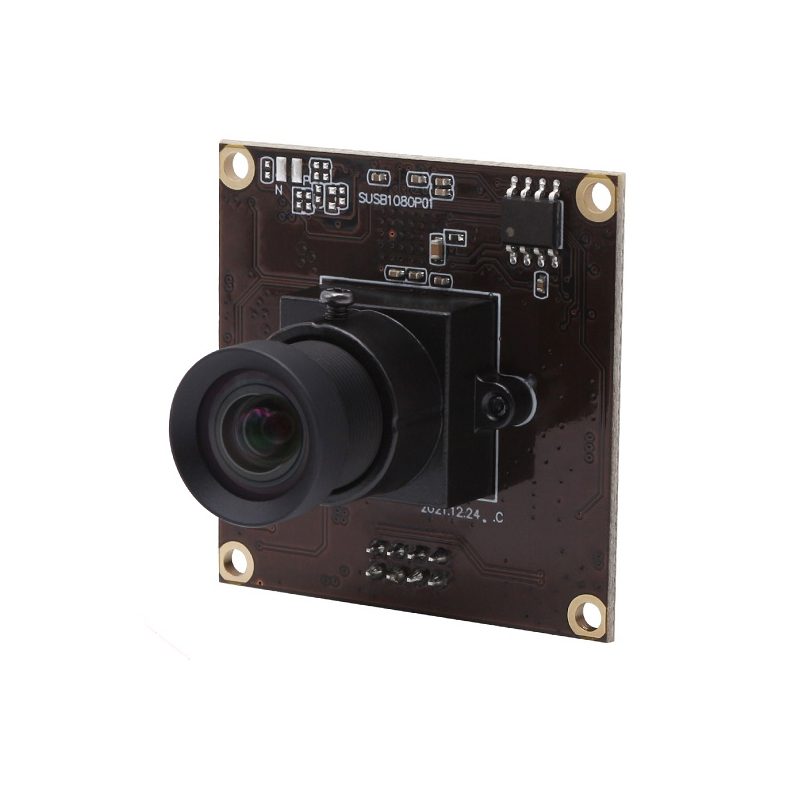

2MP USB 3.0 Camera 1080P 50fps No Distortion Lens Sony IMX291 Plug and Play for Machine Vision
Product Features
* 1080P USB3.0 high speed usb camera module
* 1/2.8” Sony IMX291 sensor for high quality image
* High frame rate-1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
* With HD no distortion M12 lens, HFOV 66 degree
* MJPEG/YUY2 dual video format optional

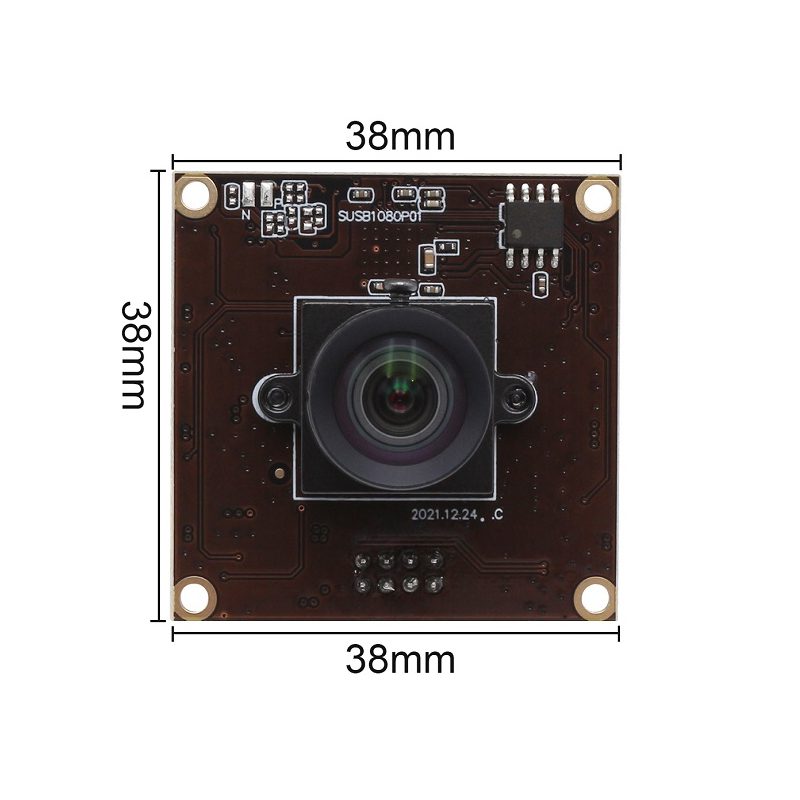

* Mini size 38*38MM embedded application
* High speed USB 3.0 plug&play port – suitable for any PC with USB 3.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
Specification:
|
Model |
SMK-SUSB1080P01-LC1100 |
| Other Lens Optional |
M12 No Distortion Lens:
SMK-SUSB1080P01-LC1100 (HFOV 66 degree)
SMK-SUSB1080P01-V100 (HFOV 82 degree)
SMK-SUSB1080P01-L297 (HFOV 90 degree)
SMK-SUSB1080P01-H100 (HFOV 97 degree)
SMK-SUSB1080P01-H110 (HFOV 110 degree)
SMK-SUSB1080P01-H120 (HFOV 123 degree)
M12 Mount Lens:
SMK-SUSB1080P01-L21 (2.1mm lens, HFOV 110 degree)
SMK-SUSB1080P01-L28 (2.8mm lens, HFOV 115 degree)
SMK-SUSB1080P01-L29 (2.9mm lens, HFOV 116 degree)
SMK-SUSB1080P01-L36 (3.6mm lens, HFOV 83 degree)
SMK-SUSB1080P01-L60 (6mm lens, HFOV 54 degree)
SMK-SUSB1080P01-L80 (8mm lens, HFOV 42 degree)
SMK-SUSB1080P01-L12 (12mm lens, HFOV 24 degree)
SMK-SUSB1080P01-L16 (16mm lens, HFOV 20 degree)
SMK-SUSB1080P01-L25 (25mm lens, HFOV 11 degree)
M12 Fisheye Lens:
SMK-SUSB1080P01-L170 (HFOV 150 degree)
SMK-SUSB1080P01-L180 (HFOV 195 degree)
|
|
Sensor |
IMX291 |
|
Lens Size |
1/2.8 inch |
|
Pixel Size |
2.9µm X 2.9µm |
|
Max. Resolution |
1920(H)X1080(V) |
|
Compression format |
MJPEG / YUV2（YUYV） |
|
Resolution & frame |
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps |
|
S/N Ratio |
40dB |
|
Dynamic Range |
65dB |
|
Sensitivity |
1900mV/lux-sec@550nm |
|
Mini illumination |
0. 01lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB3.0 High Speed |
|
Free Drive Protocol |
USB Video Class（UVC） |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
M12 mount no distortion lens, HFOV about 66 degree/ VFOV 40 degree/ DFOV 73 degree |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC5V |
|
Working current |
170mA~210mA |
|
Working temperature |
0～70℃ |
|

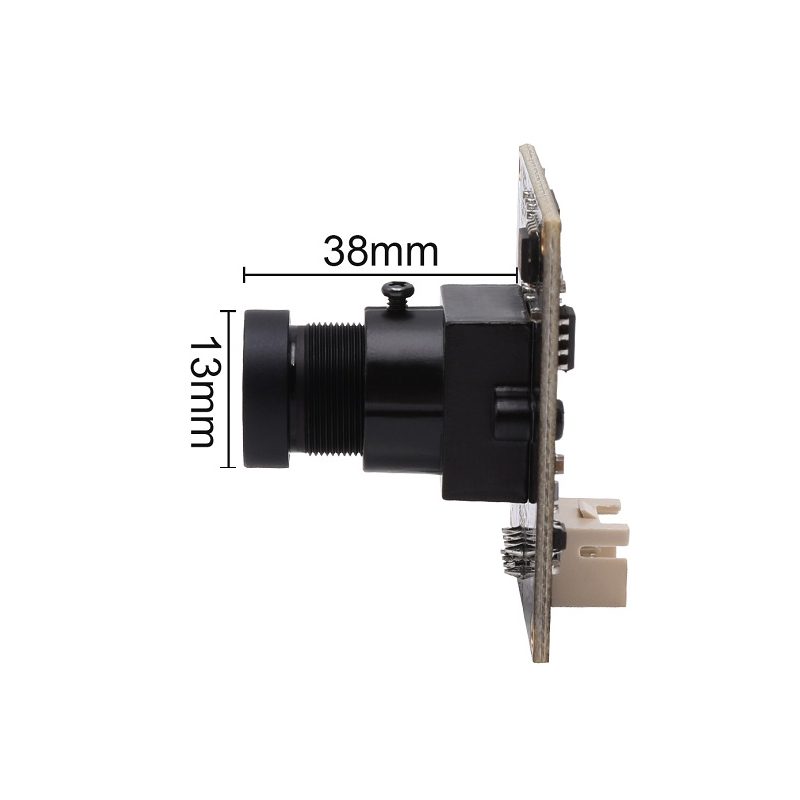

Board size /Weight |
38*38mm |
|
Cable |
Standard 1M (2/3/5m optional) |
|
Operating system request |
Win8 and above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
