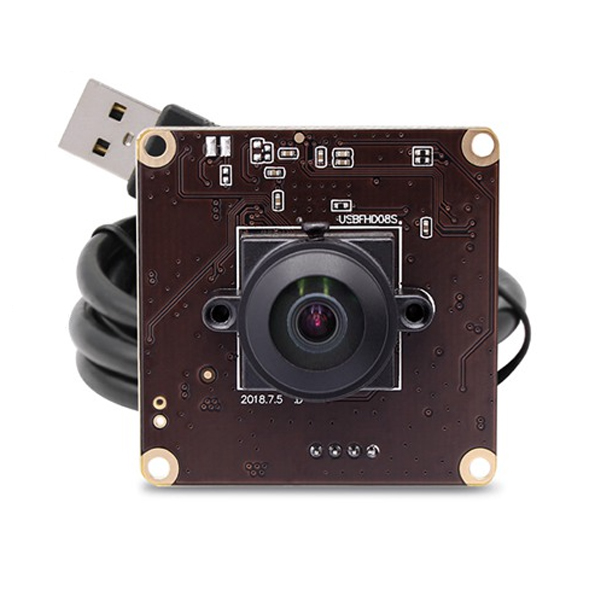

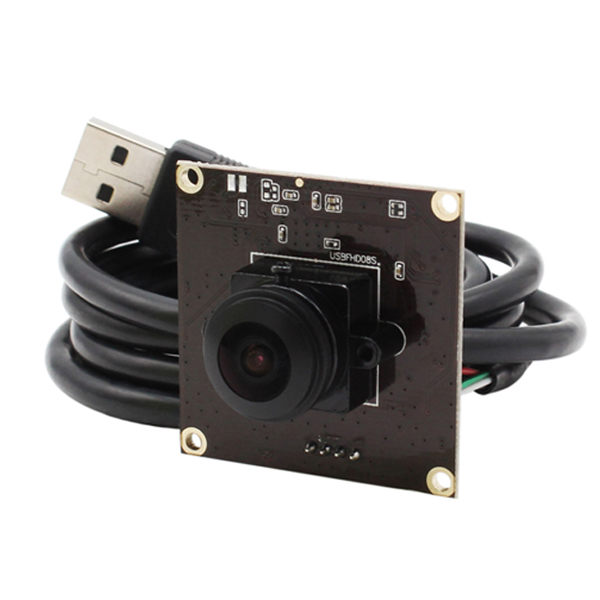

2MP Wide Angle Mini USB Camera MJPEG 60fps /120ps/260fps Webcam with L180 lens

Product Features

* Full HD 1080P free driver USB2.0 high speed 60, 120, 260fps wide angle fisheye usb camera

* USB Camera with 1/3″ OV4689 CMOS Sensor

* High speed Mjpeg 260fps @640×360, 120fps @1280×720, 60fps @1920×1080 USB camera module.

* Mini micro USB webcam, with standard 1m cable (2m, 3m, 5m optional).

* USB with camera for WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

* Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.

About High Speed USB Camera:

High speed real-time uncompressed image recording, real-time display

It ensures frame loss and solves the problems of frame loss and power failure protection loss in traditional memory recording mode;

The system works independently,hardly occupies computer resources, and has high reliability

The software interface is simple, convenient for secondary development and real-time processing.

Optional Models

No distortion lens for option:

SMK-USBFHD08S-H120 (HFOV 117 Degree) SMK-USBFHD08S-H100 (HFOV 92 Degree)

SMK-USBFHD08S-H110 (HFOV 106 Degree) SMK-USBFHD08S-LC1100 (HFOV 62 Degree)

SMK-USBFHD08S-V100 (HFOV 77 Degree)

other M12 lens:

SMK-USBFHD08S-L29 (2.9mm Lens, HFOV 107 Degree) SMK-USBFHD08S-L36 (3.6mm Lens, HFOV 76 Degree)

SMK-USBFHD08S-L28 (2.8mm Lens, HFOV 104 Degree) SMK-USBFHD08S-L60 (6mm Lens, HFOV 50 Degree)

SMK-USBFHD08S-L80 (8mm Lens, HFOV 39 Degree) SMK-USBFHD08S-L12 (12mm Lens, HFOV 22 Degree)

SMK-USBFHD08S-L16 (3.6mm Lens, HFOV 18 Degree)

other fisheye lens:

SMK-USBFHD08S-L170 (Fisheye Lens, HFOV 137 Degree) SMK-USBFHD08S-L180 (Fisheye Lens, HFOV 180 Degree)

Package Include :

1pc of 2MP USB Camera

1pc of 1meter USB Cable

Model	SMK-USBFHD08S-L180 (fisheye Lens)
Sensor	OV4689
Lens Size	1/3 inch
Pixel Size	2.0µm X 2.0µm
image area	5440 µm x 3072 µm
Max. Resolution	1280(H)X720(V)
Compression format	MJPEG / YUV2(YUYV)
Resolution & frame	1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps
S/N Ratio	38.3dB
Dynamic Range	64.6dB
Sensitivity	1900mV/lux-sec@550nm
Mini illumination	0. 1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard wide angle 180degree fisheye lens optional other M12 Mount lens, 2.8/3.6/6/8/12mm lens, FOV 170/180Degree,
Power supply	USB BUS POWER
Operating Voltage	DC5V
Working current	150mA~185mA
Working temperature	0~70℃

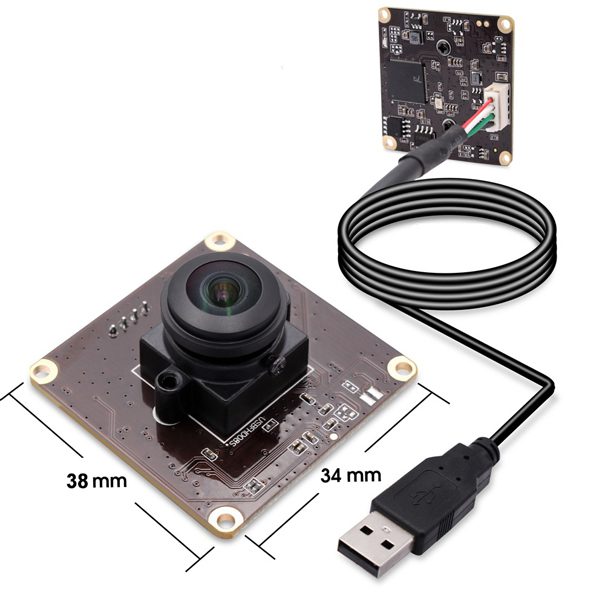

Board size /Weight	38*38mm
Cable	Standard 1M
Operating system request	Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
