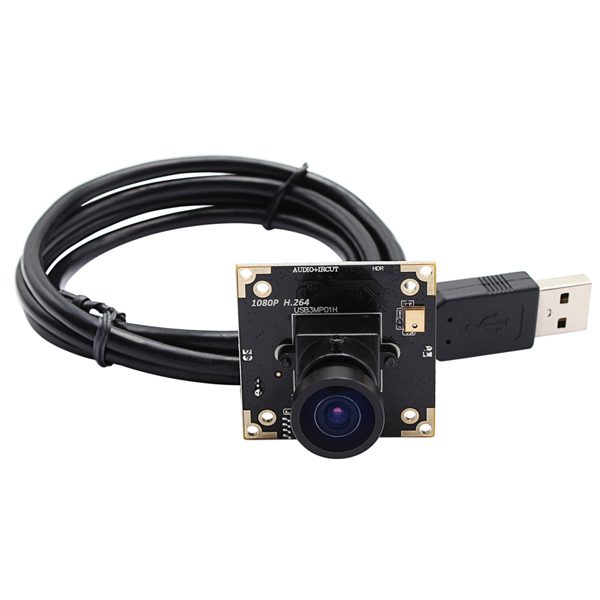

3MP H.264 AR0331 CMOS WDR Camera Module USB with 2.9mm Wide Angle Lens

3MP H.264 AR0331 CMOS WDR Camera Module USB with 2.9mm Wide Angle Lens

Product Features

*3Mpixels, Highest resolution 2048X1536

*1/3inch AR0331 CMOS Sensor

*WDR function, Dynamic Range up to 100dB

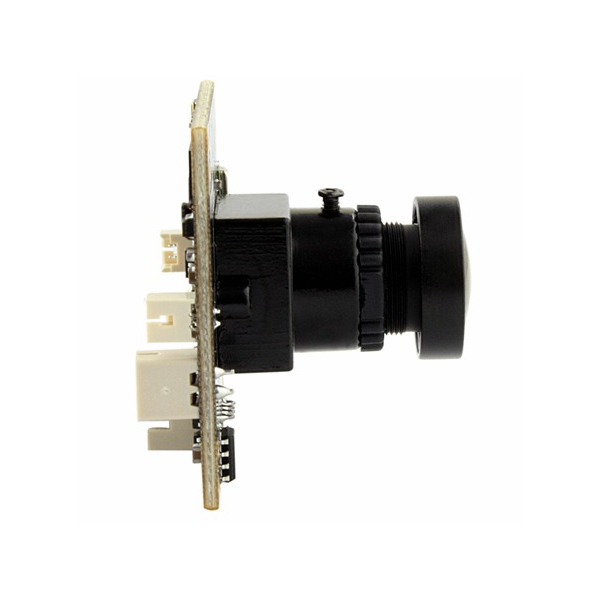

*M12 Mount wide angle 2.9mm lens

*With H.264/MJPEG/ YUY2 High profile compression.

*Can drive 1920*1080 30FPS

*Come with microphone on the board which support single channel and dual channel.

*With 2P-2.0mm socket for connecting IR LED Board for night vision

*USB 2.0 High speed port

*Camera with UVC, Support Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above

Description:

3MegaPixels WDR USB Camera HDR 100db H.264 OTG Support Audio Webcam HD for application in ATM,Kiosk,POS,TV box (2.9mm lens)

SMK-USB3MP01H series is a WDR (Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too)
WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.

Specifications:

Model	SMK-USB3MP01H-L29
Sensor	AR0331
Lens Size	1/3 inches
Pixel Size	2.2um X2.2um
Max. Resolution	2048X1536
Compression format	H.264 /MJPEG / YUV2（YUYV）
Resolution & frame	H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
S/N Ratio	39dB
Dynamic Range	Up to 100 dB
Sensitivity	2.0V/lux-sec@550nm
Mini illumination	0. 05lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 2.9mm lens (2.1/2.8/3.6/3.7/6/8/12mm or fisheye lens or no distortion lens Optional)
Digital audio	High quality digital MIC, support single, dual channel

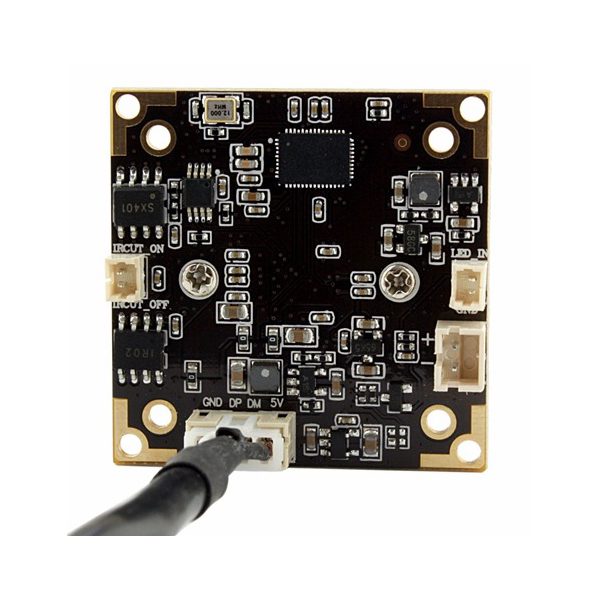

IR CUT Connector	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	140mA~200mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size /Weight	38X38mm / about 30g
Cable	Standard 1M / 2M,3M,5M optional
Operating system request	Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above
