4656X3496P 16MP Webcam IMX298 Color Sensor No Distortion Lens Mini USB Camera Module
Product Features
*High Resolution 16MP Mini HD USB Camera Module
*HD USB webcam camera module With 1/2.8 inch IMX298 Sensor
*Max Resolution: 4656(H) X 3496(V)
*With No distortion lens, FOV is about 76 degree (Many other lens optional)
*UVC free driver, Plug and Play
* Mjpeg/YUY2 compression
* Mini micro USB webcam with Size 38x38mm
*Support different operating systems, different preview softwares.
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2, Camera Fi, Photo Booth….
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
Description:

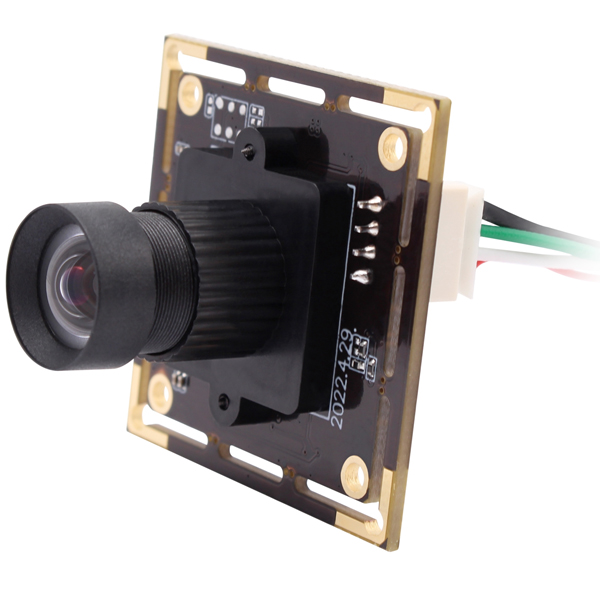

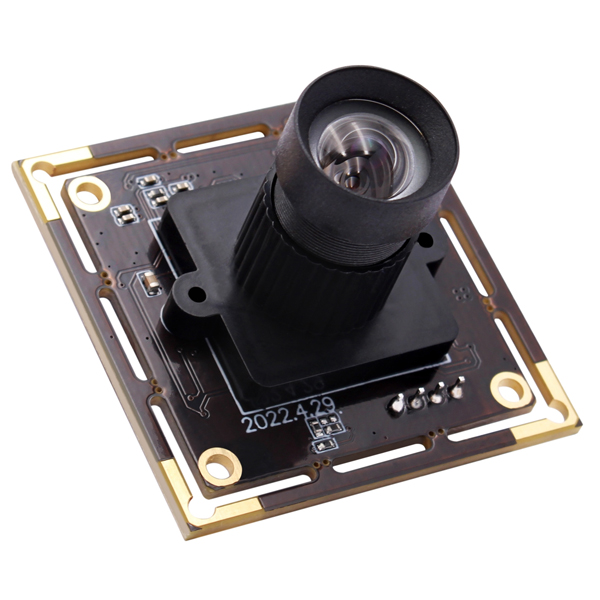

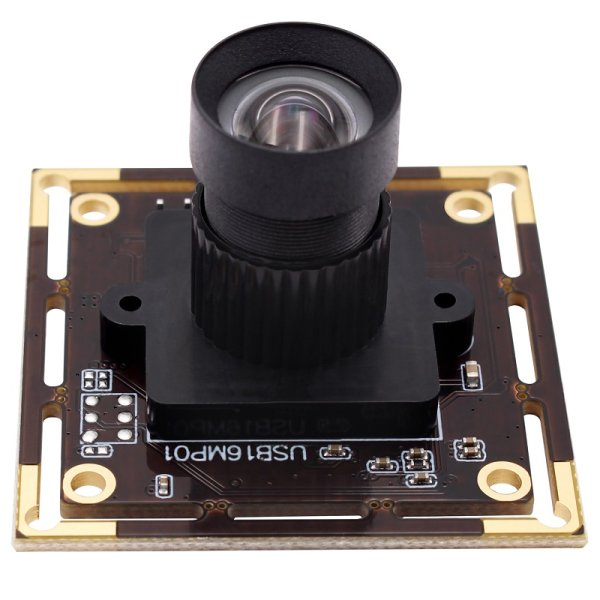

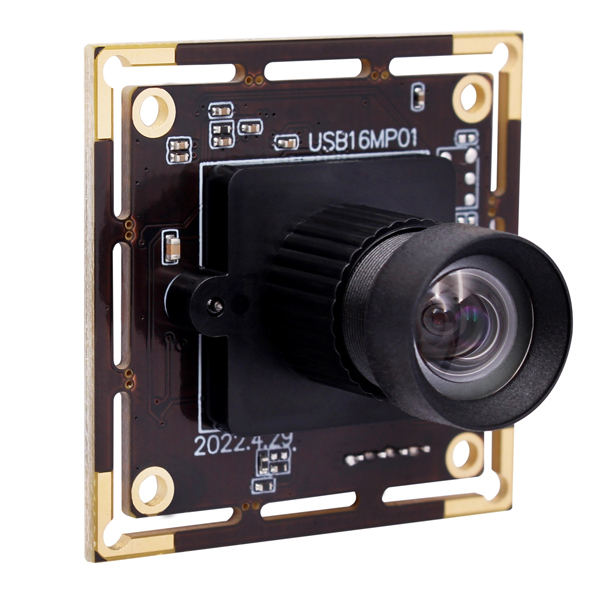

High Definition 4656X3496P 16MP Webcam Built-in IMX298 Color Sensor No Distortion Lens Mini USB Camera Module For Machine Vision Camera For QCR Document Scanning
- This High Resolution 16MP USB Camera is based on big size 1/2.8” CMOS IMX298 image sensor, shoot the images or record videos with super Image reality, real color reproduction.
- Its ultra 4656×3496 resolution can be used in a wide range of applications where high-resolution images and videos with manual focus capabilities are required.
- high quality adjustable lens, M12 Mount, no distortion, fisheye wide angle optional
- USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera,

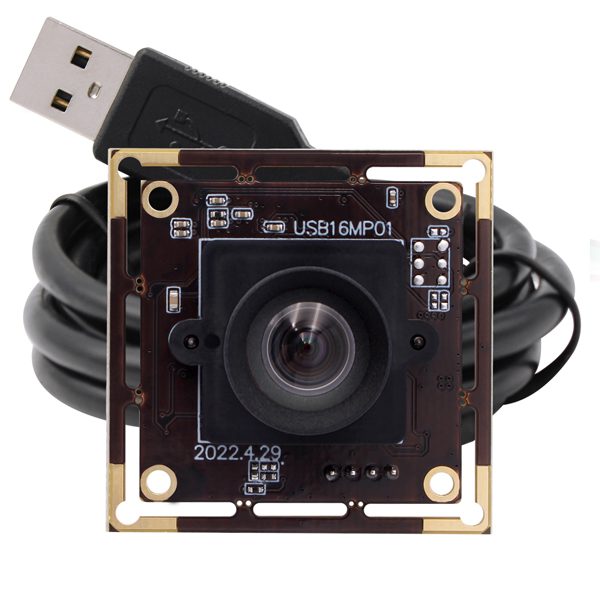

Package Includes:
*1 Piece of 16MP IMX298 Camera with NO Distortion Lens ,
*1Piece 1m USB Cable
Optional Models
With no distortion lens:
SMK-USB16MP01-LC1100 (FOV 63 degree) SMK-USB16MP01-L75 (FOV 76 degree)
Specifications:
Model | SMK-USB16MP01-L75 |
Sensor | IMX298 |
Lens Size | 1/2.8 inch |
Pixel Size | 1.12um X 1.12um |
image area | 6.4mm x 5.3mm |
Max. Resolution | 4656(H) X 3496(V) 16Megapixel |
Compression format | MJPEG / YUV2（YUYV） |
Resolution & frame | 4656 x 3496MJPEG@10fps YUY2 1fps/ 4208 x 3120MJPEG@10fps YUY2 1fps 4160 x 3120 MJPEG@10fps YUY2 1fps/ 4000 x 3000MJPEG@10fps YUY2 1fps 3840 x 2160 MJPEG@10fps YUY2 1fps/ 3264 x 2448MJPEG@10fps YUY2 1fps 2592 x 1944 MJPEG@10fps YUY2 1fps/ 2320 x 1744MJPEG@30fps YUY2 1fps 2048 x 1536 MJPEG@30fps YUY2 1fps/ 1920 x 1080MJPEG@30fps YUY2 5fps 1600 x 1200 MJPEG@30fps YUY2 5fps/ 1280 x 960MJPEG@10fps YUY2 10fps 1280 x 720 MJPEG@30fps YUY2 10fps/ 1024 x 768MJPEG@10fps YUY2 10fps 800 x 600 MJPEG@30fps YUY2 15fps/ 640 x 480MJPEG@30fps YUY2 30fps |
Mini illumination | 0.5lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | Standard L75 No distortion lens ,optional other M12 Mount lens |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 150mA~240mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |
Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
