48MP High Resolution Free Driver Autofocus 100 Degree USB Camera GM1 Image Sensor
Product Features
*High Definition 48Megapixels USB Camera Max. still resolution 8000×6000
*High Technology GM1 Image sensor Webcams
*Mini autofocus AF Lens Wide Angle : FOV 100degree
*High Frame rate 30fps
*Compression format: MJPEG or YUY2 optional .
*With industrial grade high quality sensor GM1 Sensor
*UVC Free Driver , Plug and Play, easily used on different systems.
*Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
*Mini Camera 38*38mm well embeded for industrial machines : the Robotics ,Scanning ID Card/Documents/Bar QR Code , live streaming, video conference, and other machine vision
Description:
High Definition 48Megapixels Fast Autofocus Scanning Camera No Distortion 100Degree Lens 1080P 30fps 4K 8K 48MP Mini USB Camera Module For Raspberry pi Jetson Nano
General Description:
This 48MP High resolution Autofocus USB Camera is baded on Big 1/2″ 48MP GM1 sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye. and shots the imaging you want. Ultra 8000×6000 resolution meets application where high resolution images and video with autofocus capabilities are required.
-High Quality Imaging: 8000×6000 resolution, adpots big 1/2″ 48mp sensor for sharp image.
-Fast Autofocus lens:100 degree, 200ms fast autofocus. Shoot objects in close and far distance.
-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. With super image reality.
-Driver free, Plug & Play:UVC-compliant, free driver, easy operate.
-Applications:Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development, medical machine (image analysis), high-speed photographic apparatus, photo scanner……
–Compatible with muti software & operating system:
Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time, Webcam Viewer, TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam….
Package Includes:
*1 Piece of 48MP USB Camera Autofocus with mini 100 Degree No Distortion AF lens,
*1Piece 1m USB Cable
Specifications:
Model | SMK-USB48MP01-AF100 (HFOV 100 degree) other lens option: SMK-USB48MP01-AF70 (HFOV 70 degree) |
Sensor | GM1 sensor |
Max. Resolution | 8000 (H) *6000 (V) |
Lens Size | 1/2 inch (4:3) |
Compression Format | MJPEG / YUV2 (YUYV) |
Resolution & Frame Rate | 8000×6000 @ 3fps MJPEG / 4000×3000 @ 12fps MJPEG 3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG |
Surface Mount Technology | SMT |
Focus Speed | Fast About 200ms |
Central Definition | 1000LW/PH (Center) |
S/N Ratio | 36dB |
Dynamic Range | 82dB |
Sensitivity | 1.4V/lux-sec@550nm |
Min illumination | 0.3 lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port Type | USB2.0 High Speed |
AEC | Support |
AWB | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | Autofocus Lens, no distortion
HFOV About 100 degree VFOV About 85 degree
|
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 550Ma- 610mA |

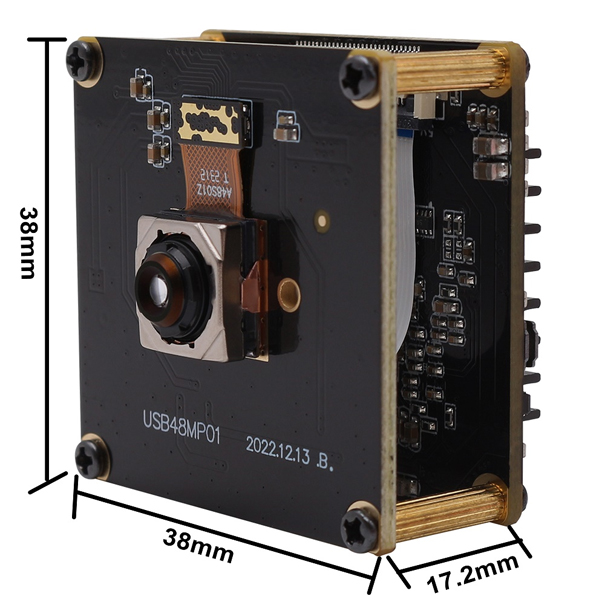

Board Size | Double-deck, 38mm × 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | 0°C to 70°C |
USB Cable | Standard 1m / optional 2m… |
Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
