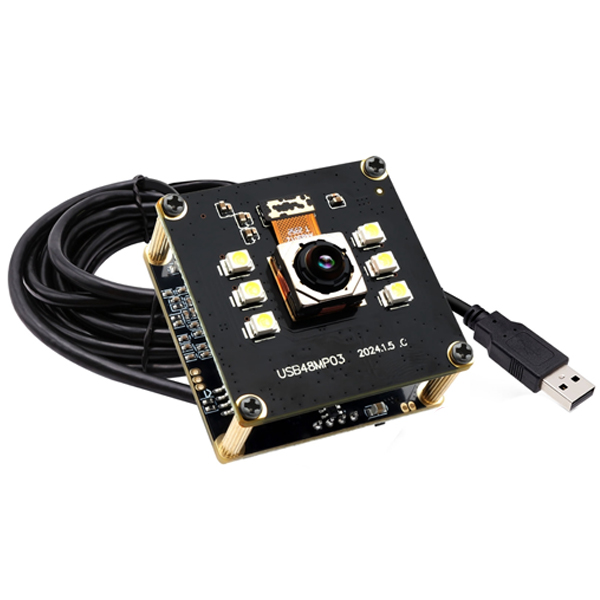

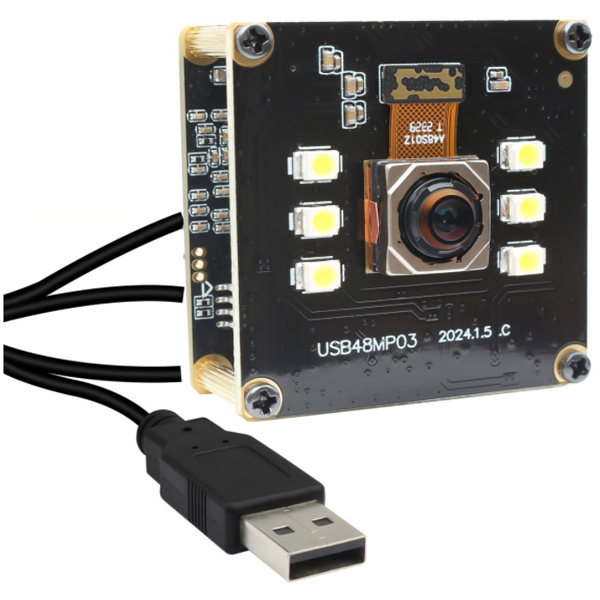

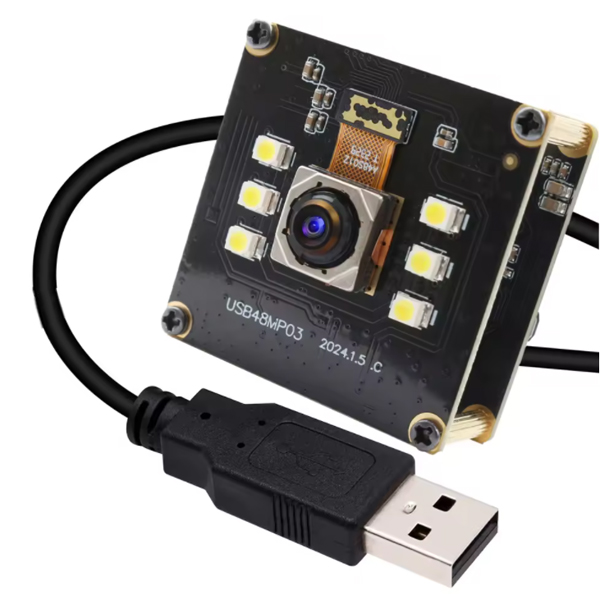

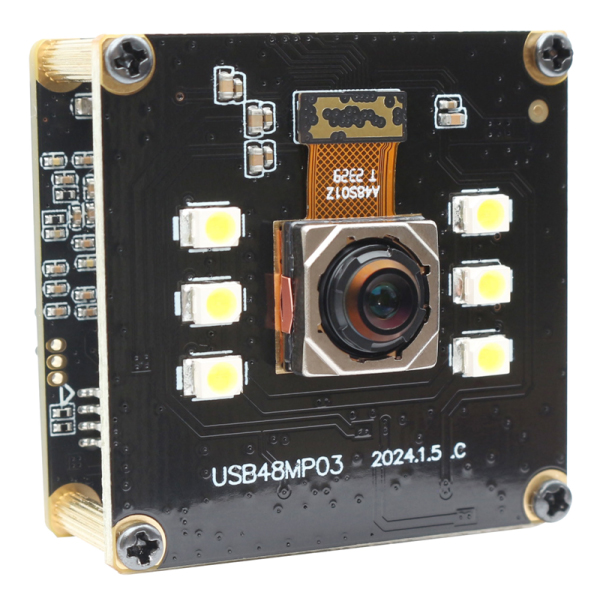

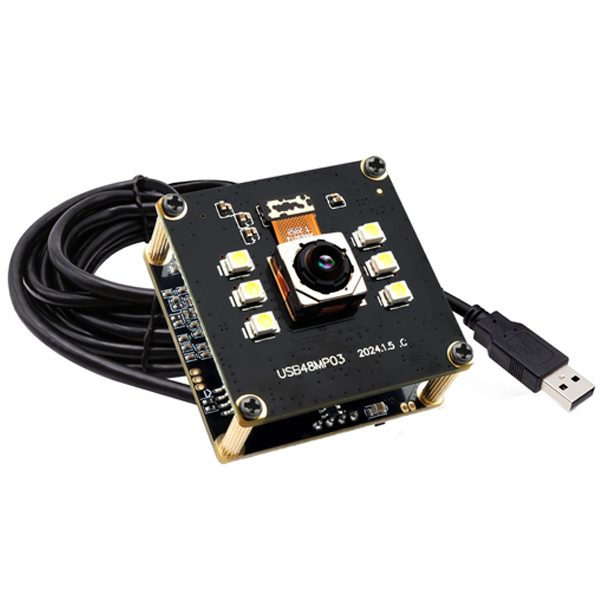

48MP Night Vision Camera Module Autofocus With White LED Free Driver 70 Degree 30fps 4K 8K

Product Features

*Ultra HD 8000X6000 High Resolution 48MP USB Camera.

*High Speed 30fps  @ 4K 3840X2160 HD USB Camera,

*Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.

*6pcs White LED installed in 48mp camera for Night Vision camera

*Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.

*With industrial grade high quality sensor GM1 Sensor

*Super Image reality, real color reproduction, without interpolation.

*UVC Free Driver , Plug and Play, easily used on different systems.

*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…

*Widely application :Online class /live broadcast, high-definition photography,  face recognition, document scanning, ID Card/passpord scanning and etc

Description:

48MP Night Vision Camera Module Autofocus With White LED High Definition 8000x6000P 30fps 4K 8K Auto Focus UVC USB Camera for Raspberry Pi Linux Windows Android

General Description:

This 48MP High resolution Autofocus USB Camera is baded on Big 1/2″ 48MP GM1 sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye and shots the imaging you want. Ultra 8000×6000 resolution meets application where high resolution images and video with autofocus capabilities are required.

-High Quality Imaging: 8000×6000 resolution, adpots big 1/2″ 48mp sensor for sharp image.

-Fast Autofocus Lens:FOV 70 degree, 200ms fast autofocus. Shoot objects in close and far distance.

-White LED: 6PCS

-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.

-Driver free, Plug & Play:UVC-compliant, free driver, easy operate.

-Applications:Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner……

Compatible with muti software & operating system:
Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…

Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer, TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam….

Package Includes:

*1 Pc of 48MP Autofocus USB Camera with mini 70dergee lens, with 6pcs white LED installed ,

*1pc 1m USB Cable

Specifications: ​
Model

SMK-USB48MP03-AF70 (HFOV 70 degree)

other lens option:

SMK-USB48MP03-AF100 (HFOV 102 degree)

SensorGM1
Max. Resolution8000 (H) *6000 (V)
Lens Size1/2 inch (4:3)
Compression FormatMJPEG / YUV2 (YUYV)
Resolution & Frame Rate8000×6000 @ 3fps MJPEG / 4000×3000 @ 12fps MJPEG
3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG
1280×720 @ 30fps MJPEG
1920*1080 @5fps YUY2 / 800*600 @25fps YUY2
640*480 @20fps YUY2
Surface Mount TechnologySMT
Focus SpeedFast About 200ms
Central Definition1000LW/PH (Center)
S/N Ratio36dB
Dynamic Range82dB
Sensitivity1.4V/lux-sec@550nm
Min illumination0.3 lux
Shutter TypeElectronic rolling shutter / Frame exposure
Connecting Port TypeUSB2.0 High Speed
AECSupport
AWBSupport
Adjustable ParametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens ParameterAutofocus Lens, no distortion
DFOV About 82 Degree
HFOV About 70 Degree
Mount M8.15 *P0.35
LED6PCS LED
Power SupplyUSB BUS POWER  4P-2.0mm Socket
Operating VoltageDC5V
Working Current550Ma- 610mA
Board SizeDouble-deck, 38mm × 38mm
Storage Temperature-20°C to 80°C
Working Temperature0°C to 70°C
USB CableStandard 1m, optional 0.3m/0.5m/1.5m/2m…
Operating System Request

Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
