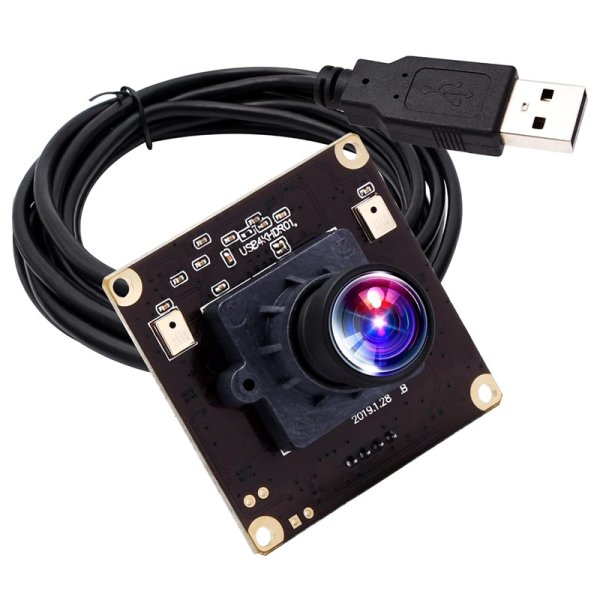

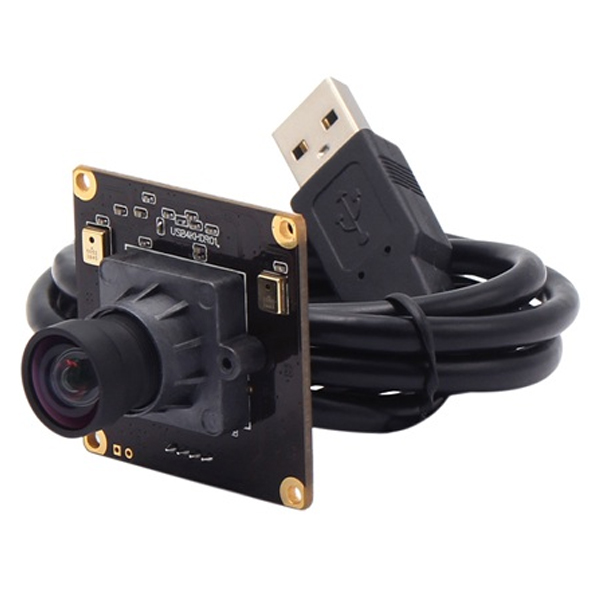

4K USB Camera 3840x2160P Sony IMX317 Mini Camera Module100 Degree No-Distortion Full HD

4K USB Camera 3840x2160P Sony IMX317 Mini Camera Module100 Degree No-Distortion Full HD

Product Features

* 4K 3840*2160 High resolution USB Camera module

* 1/2.5”Sony IMX317 sensor for high quality image

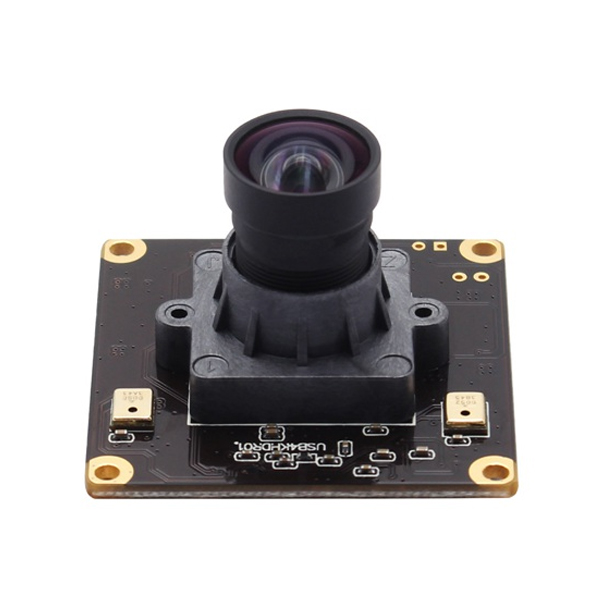

* With HD 100 degree no distortion M12 lens

* With microphone for audio recording

* High frame rate – MJPEG 3840*2160 30fps

* MJPEG/YUY2 dual outpu format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface

* Low power consumption – ideal for portable equipment.

* UVC compliant – support Windows, Linux, Android system with UVC

Specifications:

Model	SMK-USB4KHDR01-V100 (HFOV about 90 Degree) other options: SMK-USB4KHDR01-H100 (HFOV about 105 Degree) SMK-USB4KHDR01-H110 (HFOV about 118 Degree) SMK-USB4KHDR01-H120 (HFOV about 130 Degree)
Sensor	Sony IMX317 (1/2.5” )
Max. Resolution	3840(H) *2160 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Compression format	MJPEG / YUY2（YUYV）
Resolution &Frame rate	MJPEG: 3840×2160@ 30fps / 2592×1944@ 30fps 2048×1536@ 30fps /1600×1200@ 30fps 1920×1080@ 30fps/ 1280×1024@ 30fps / 1280×960@ 30fps /1280×720@ 30fps 1024×768@ 30fps/ 800×600@/ 30fps640x480@ 30fps/ 320×240@ 30fps YUY2: 3840×2160@ 1fps / 2592×1944@ 1fps 2048×1536@ 3fps/ 1600×1200@ 3fps/ 1920×1080@ 3fps/ 1280×1024@3fps 1280×960@5fps/1280×720@ 5fps/ 1024×768@ 5fps/ 800 x 600@ 20fps 640×480@ 30fps/ 320×240@ 30fps
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	26dB
Sensitivity	0.65V/l@550
Mini illumination	0.2Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens Parameter	M12 Mount No Distortion Lens, Size: 1/2.3”, HFOV about 90 degree, DFOV 100 degree; Relative Illumination (Sensor): 70% IR Filter: 650±10nm

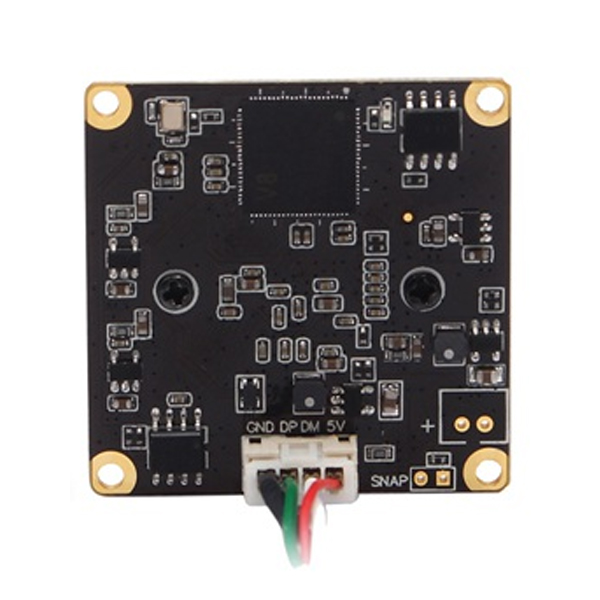

Power Supply &Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC5V
Power Current	200mA

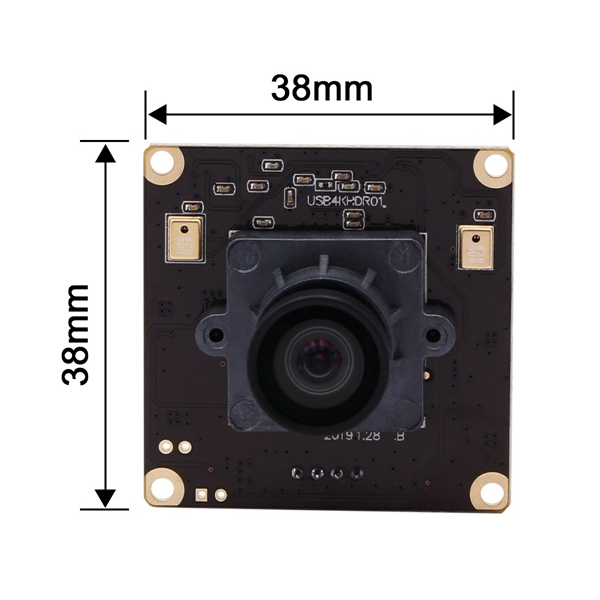

Board Size	38*38mm
Storage Temperature	-20～70℃
Working temperature	0～60℃
USB Cable	Standard 1M ( 2M,3M,5M optional)
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
