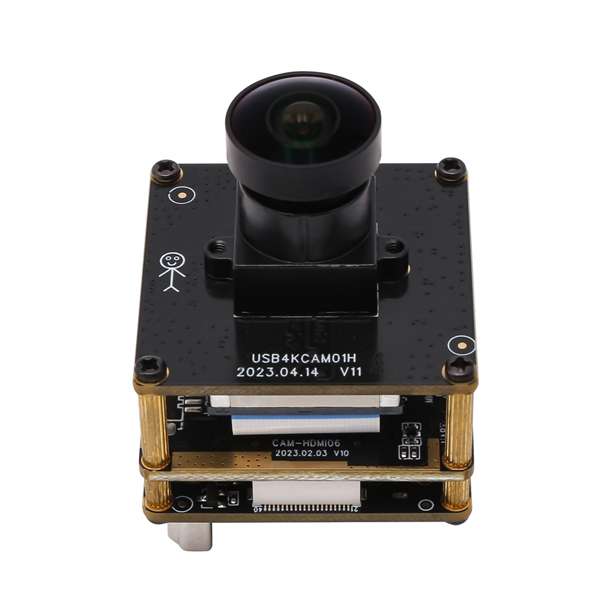

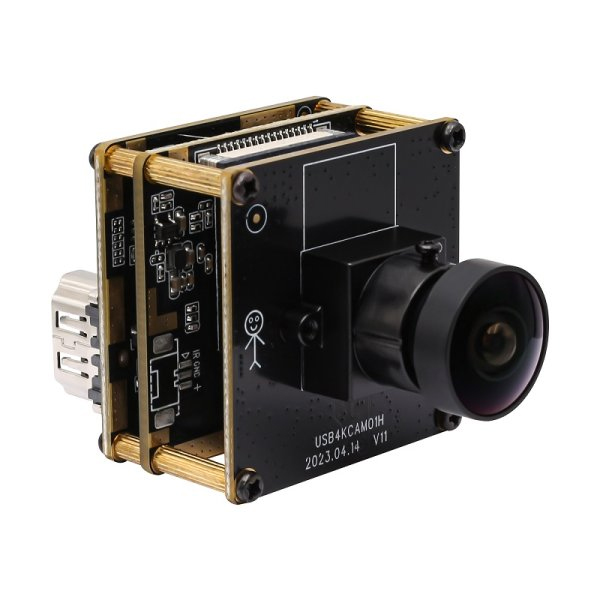

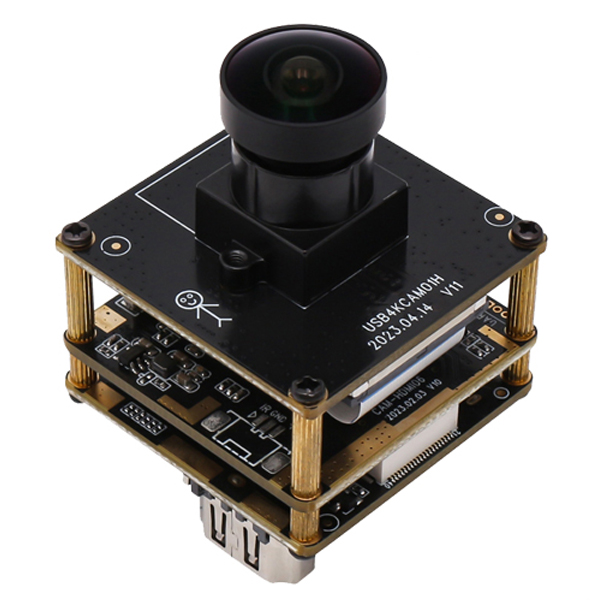

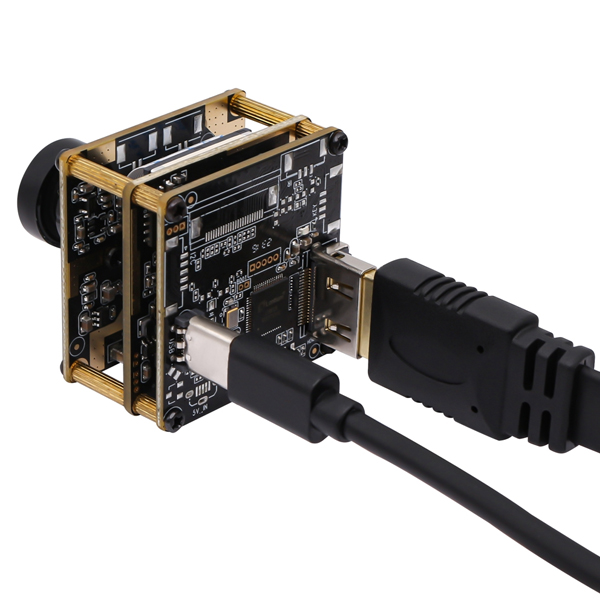

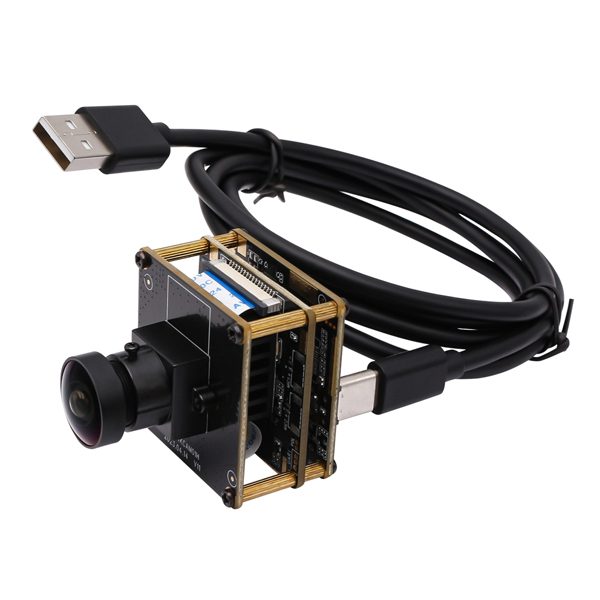

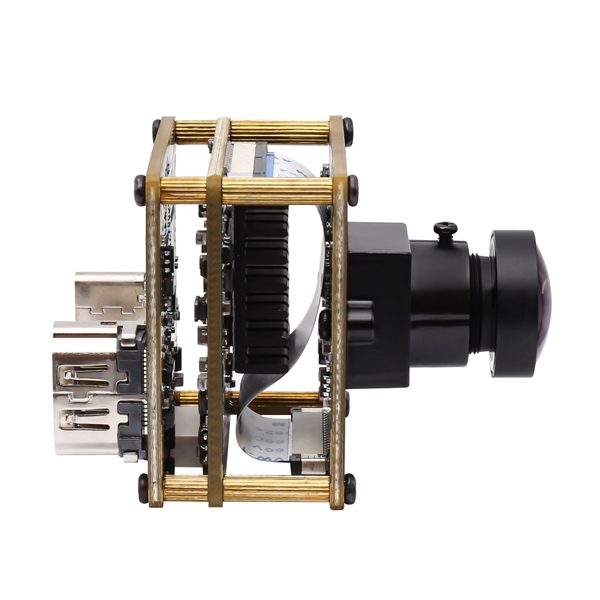

4K USB HDMI Camera Module IMX415 H.265 H.264 MJPEG 30fps with Fisheye 150 Degree Lens
Product Features
*Sensor: 1/2.8” Sony IMX415 Sensor
*Resolution: 3840×2160
*Compression: MJPEG/YUY2/H.264/H.265
*Frame Rate: 3840×2160 MJPEG/H.264/H.265 30fps, HDMI 1920X1080 @30fps
*Lens: Fisheye lens, HFOV about 150 degree (Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree), 180 degree Fisheye lens etc. )
*Power Supply: USB Type-C Power Supply
*Interface: Type-C & HDMI
*Zoom: 2X Digital Zoom
*Cable: 2pcs Cables (1pcs 1.2m cable with Type-C & USB2.0 port; 1pcs 1.5m cable with HDMI port)
*Free Driver: UVC, driver free, Plug & Play
*Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…
Description:
4K HDMI&USB Camera
It adopt 1/2.8″ Sony IMX415 Color CMOS sensor. With powerful H.265 Video Compression& H.265 Video format, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840×2160 30fps,also Full HD 1080P 30fps Video Output. Support Type C and HDMI Dual Output simultaneously. With 2.8-12mm or 5-50mm Manual focus zoom Lens, enable 2X digital Zoom and 4X or 10X optic Zoom for super clear details images
Package Includes:
1) 1pcs 4K USB HDMI Camera with 170degree Lens. ( focal length 1.95mm )
2) 1pcs 1.2m usb cable with type C port
3) 1pcs 1.5m HDMI cable with HDMI port
Optional Models
With no distortion lens:
SMK-USB4KCAM01H-V100 (HFOV about 85 degree)
SMK-USB4KCAM01H-H100 (HFOV about 100 degree)
SMK-USB4KCAM01H-H110 (HFOV about 110 degree)
SMK-USB4KCAM01H-H120 (HFOV about 124 degree)
With normal lens:
SMK-USB4KCAM01H-L12 (12mm, HFOV about 25 degree)
SMK-USB4KCAM01H-L16 (16mm, HFOV about 20 degree)
SMK-USB4KCAM01H-L25 (25mm, HFOV about 11 degree)
With M16 Black Light Lens:
SMK-USB4KCAM01H-LH4 (4mm, HFOV about 90 degree)
With Fisheye Lens:
SMK-USB4KCAM01H-L170 (HFOV about 150 degree)
SMK-USB4KCAM01H-L185 (HFOV > 180 degree)
Specifications:
Model | SMK-USB4KCAM01H-L170 |
Sensor | 1/2.8” SONY IMX415 |
Max Resolution | 3840(H)*2160(V) |
Sensitivity | 0.65V/lux-sec@550nm |
Pixel Size | 1.45µm x 1.45µm |
Video Compression | MJPEG / YUY2(YUYV) / H.264 / H.265 |
Digital Zoom | 2X Digital Zoom |
Resolution & Frame Rate | 3840×2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps 2560×1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920×1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280×720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024×576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960×540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640×480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640×360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps |
Image Processing Time | About 8 seconds after opening the preview software |
Central Definition | 1000LW/PH(Center) |
S/N Ratio | 30dB |
Min illumination | 0.2 Lux |
Shutter Type | Electronic Rolling Shutter/ Frame Exposure |
Connecting Port Type | USB 2.0 Interface &HDMI v1.4 Interface |
AEC/AWB/AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
Lens Parameter | M12 Mount Fisheye lens, HFOV about 150 degree;
Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree), 180 degree Fisheye lens etc. |
Power Supply & Interface | USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
Operating Voltage | DC 5V |
Working Current | 480-500mA |
Dimension | 38mm x 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | -10°C to 70°C |
USB Cable | 2 pieces cables (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port) |
Operating System Request | Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above |
Why choose HDMI?
“HDMI” stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Why choose USB3.0 4K Camera ?
Developing a USB 3.0 4K camera can offer several advantages and address various needs in different industries and applications:
