USB Driver Free H.264 4K USB3.0 HDMI Camera Module with 110 Degree No Distortion Lens
Product Features
Description:

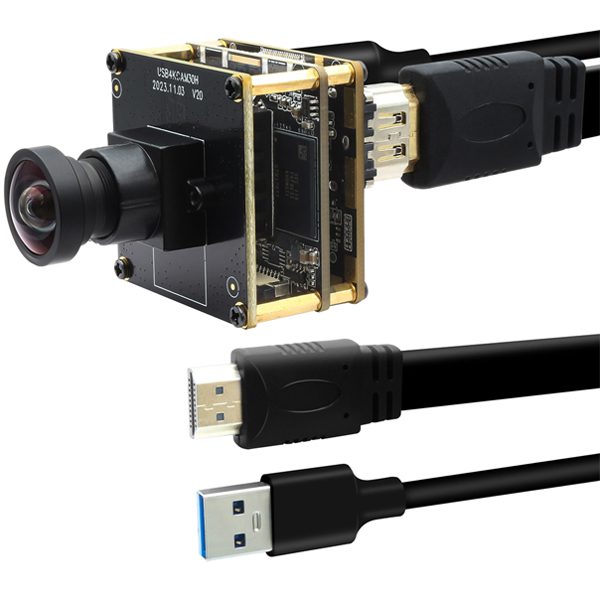

4K HDMI&USB Camera
It adopt 1/2.8″ Sony IMX415 Color CMOS sensor. With powerful H.264/YUY2/MJPEG Video Compression format, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840×2160 60fps,also Full HD 1080P 60fps Video Output. Support Type C and HDMI Dual Output simultaneously. Available to use M12 Mount no distortion lens, wide angle lens, CS Mount 2.8-12mm,3.6-10mm lens or 5-50mm Manual focus zoom Lens, enable 2X digital Zoom and 4X or 10X optic Zoom for super clear details images
Package Includes:
1) 1pcs 4K USB3.0 Camera Support HDMI with no distortion lens Lens. (H110 FOV 110dergee )
2) 1pcs 1.5m usb3.0 cable with type C port
3) 1pcs 1.5m HDMI cable with HDMI port
Specifications:
|
Model |
SMK-USB4KCAM30H-H110 |
|
Sensor |
1/2.8” SONY IMX415 |
|
Max Resolution |
3840(H)*2160(V) |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Pixel Size |
1.45µm x 1.45µm |
|
Video Compression |
MJPEG / YUY2(YUYV) / H.264 |
|
Resolution & Frame Rate |
3840×2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps 2560×1440 MJPEG 60fps/ H.264 60fps / 1920×1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps 1280×720 MJPEG 60fps/ H.264 60fps / YUY2 60fps 640×480 MJPEG 60fps/ H.264 60fps / YUY2 60fps |
|
Image Processing Time |
About 10 seconds after opening the preview software |
|
Central Definition |
1000LW/PH(Center) |
|
S/N Ratio |
30dB |
|
Min illumination |
0.2 Lux |
|
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
|
Connecting Port Type |
USB 3.0 Interface &HDMI v2.0 Interface |
|
AEC/AWB/AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
|
Lens Parameter |
No distortion H110 lens, HFOV about 110 degree.
Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree),
150 degree/180 degree Fisheye lens, M16 4mm lens etc.
|
|
Display Modes & Power Supply |
I. USB Output (USB Bus Power) II. HDMI Output (Power by Portable Power Bank / Charging Adapter ) III. USB Output +HDMI Output Simultaneous (USB Bus Power) |
|
Operating Voltage |
DC 5V |
|
Working Current |
700-780mA |
|
Storage Temperature |
-20°C to 80°C |
|
Working Temperature |
– 10°C to 70°C |
|
USB Cable |
1.5m cable with Type-C & USB 3.0 port (2m, 3m optional) |
|
HDMI Cable |
1.5m cable with HDMI ports |
|
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above |
Why choose HDMI?
“HDMI” stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Why choose USB3.0 4K Camera ?
Developing a USB 3.0 4K camera can offer several advantages and address various needs in different industries and applications:
