5MP 38*38mm Mini HD USB Camera Module IMX335 Sensor 30fps with M12 3.6mm Lens

Product Features

*5Megapixel USB Camera resolution up to max.2592 (H) x 1944 (V) pixels

*CMOS Sony IMX335 sensor for HD image,Sensor Size 1/2.8 inch .

*High Frame Rate 30fps at 1944P 5MP 30fps , 1920x1080P 30fps .

*USB With Camera , High speed USB1.1&2.0 compatible, occupy less bandwidth

*Fixed focus lens 3.6mm focal length default , other M12 Mount optional to change.

*Suppor MJPEG YUY2 picture format.

*Camera with UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

*Free driver to work

38*38mm Mini PCB Camera Board MJPEG 2592X1944 30fps CMOS IMX335 USB2.0 Industrial HD Webcam Camera Module For PC Laptop

Package Include (Model SMK-USB500W07-L361)

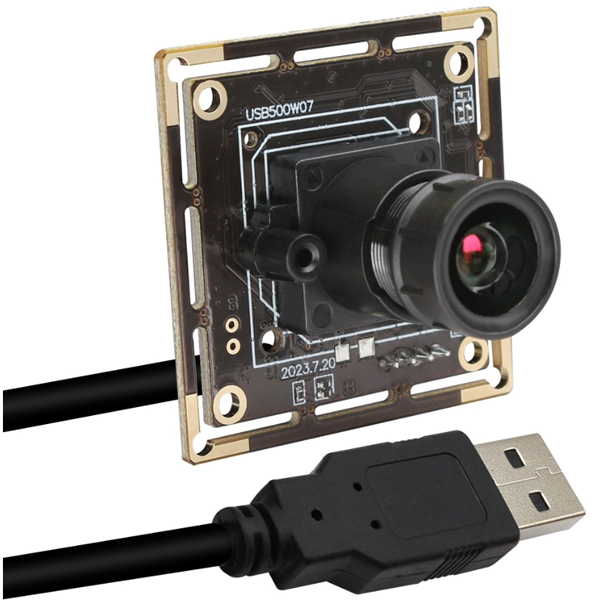

1pc of 5MP IMX335 USB Camera with M12 Mount 3.6mm lens (Optional to change)

1pc of 1m USB Cable (Other lenght optiona )

Other Model Options:

With no distortion lens:

SMK-USB500W07-V83 (HFOV about 81 degree) SMK-USB500W07-L100 (HFOV about 81 degree)

SMK-USB500W07-V100 (HFOV about 79 degree) SMK-USB500W07-LC1100 (HFOV about 62 degree)

SMK-USB500W07-H100 (HFOV about 93 degree) SMK-USB500W07-H110 (HFOV about 107 degree)

SMK-USB500W07-H120 (HFOV about 118 degree)

With M12 lens:

SMK-USB500W07-L21 (2.1mm, HFOV 101 degree) SMK-USB500W07-L361 (3.6mm, HFOV 81 degree)

SMK-USB500W07-L281 (2.8mm, HFOV 102 degree) SMK-USB500W07-L601 (6mm, HFOV 53 degree)

SMK-USB500W07-L80 (8mm, HFOV 39 degree) SMK-USB500W07-L12 (12mm, HFOV 23 degree)

SMK-USB500W07-L16 (16mm, HFOV 18 degree) SMK-USB500W07-L25 (25mm, HFOV 10.5 degree)

With Fisheye Lens:

SMK-USB500W07-L170 (HFOV about 138 degree) SMK-USB500W07-L185 (HFOV anout 200 degree)

With M12 2.8-12mm lens:

SMK-USB500W07-FV

Model	SMK-USB500W07-L361 (M12 3.6mm lens)
Sensor	SONY IMX335 (1/2.8” )
Max Resolution	2592(H) *1944 (V)
Pixel Size	2.0µm x2.0µm
Image Area	5800µmx4750µm
Picture Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	2592×1944 MJPEG 30fps/ YUY2 1fps 2048×1536 MJPEG 30fps/ YUY2 3fps 1920×1080 MJPEG 30fps/ YUY2 3fps 1600×1200 MJPEG 30fps/ YUY2 5fps 1280×960 MJPEG 30fps/ YUY2 5fps 1280×720 MJPEG 30fps / YUY2 5fps 1024 x 768 MJPEG 30fps/ YUY2 5fps 800 x 600 MJPEG 30fps / YUY2 20fps 640×480 MJPEG 30fps / YUY2 30fps 320×240 MJPEG 30fps / YUY2 30fps
Center Definition	1000LW/ PH (Center)
S/ N (Signal Noise Ratio)	30dB
Sensitivity	0.65V/lux-sec@550nm
Min. illumination	0.2 Lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Lens	M12 3.6mm lens; optional for 2.1/2.8/2.9/6/8/12/16/25mm lens, No distortion lens, Fisheye lens
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power	DC 5V
Current	210mA

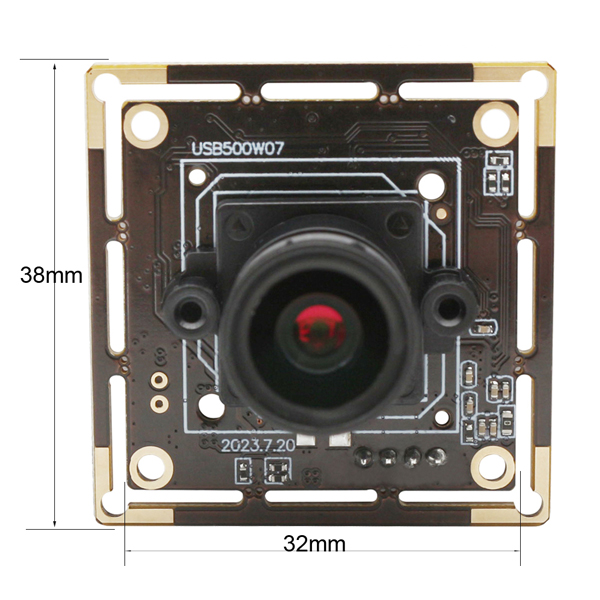

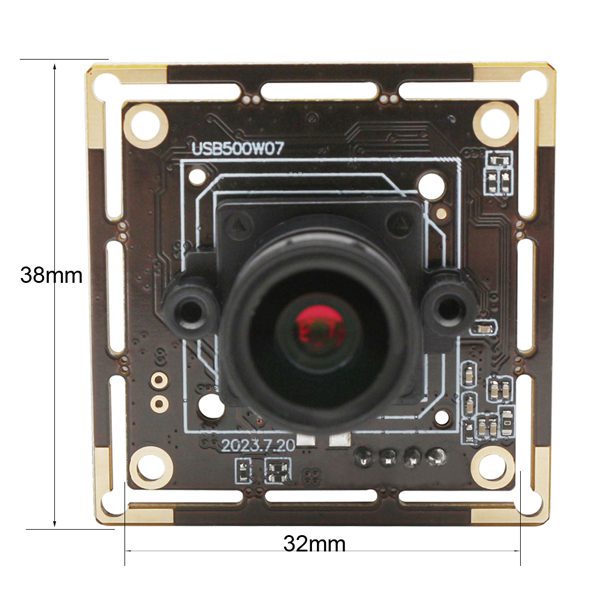

Size	38mm × 38mm (compatible 32X32mm)
Storage Temperature	-20°C to 75°C
Working Temperature	– 10°C to 65°C
USB Cable	1M(2M/3M/5M Optional)
Operating System	Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
