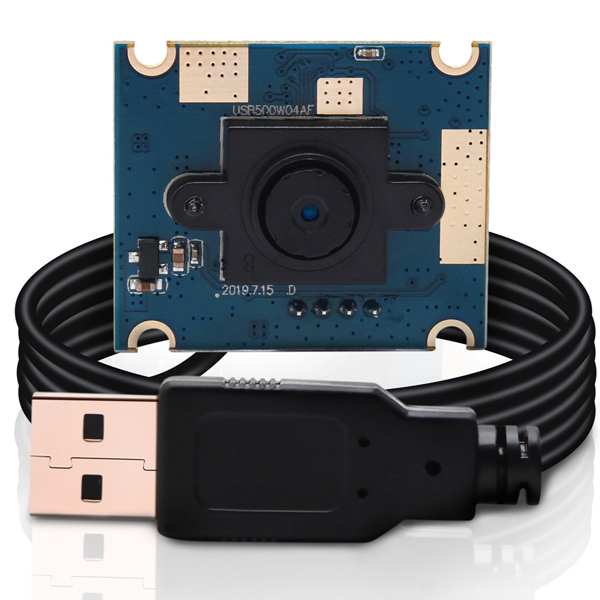

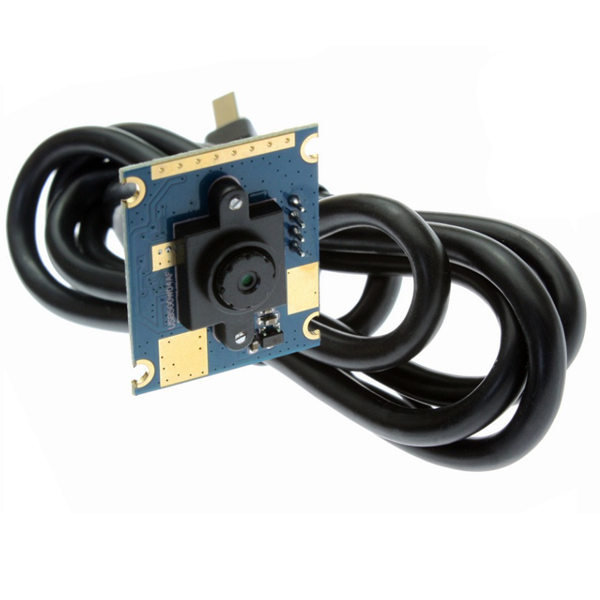

5MP Super Mini 30*25mm CMOS OV5640 UVC USB Camera 60Degree Fixed Focus Lens

5MP Super Mini 30*25mm CMOS OV5640 UVC USB Camera 60Degree Fixed Focus Lens

Product Features

* OV5640 CMOS Sensor for sharp image

* 5mega pixels,Resolution up to 2592*1944
* Super small 25*30mm size outline and thin profile for embedded applications
* With 60degree FIXED focus lens, Support focus auto mode and manual mode

* Image quality controls – Brightness,Contrast,hue,satuaration,sharpness,gamma,white balance

*Support UVC protocol, Free Driver

for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

*OV5640 USB Cameras Do NOT Support OTG

Description:

5MP 2592*1944 Super Mini 30*25mm CMOS OV5640 UVC USB Embedded Camera Module for Industrial Machine (60Degree fixed focus lens)

Specifications:

Model	SMK-USB500W04AF-L60
Item	5MP mini Micro USB camera module
Resolution & FPS	2592×1944@ 15fps MJPEG 2048×1536@ 15fps MJPEG 1600×1200@ 15fps MJPEG 1920×1080@ 15fps MJPEG 1280×1024@15fps MJPEG 1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG 320×240@ 30fps MJPEG
Sensor	Omnivision OV5640	Connecting Port Type	USB2.0 High speed
Sensor Size	1/4 inch	Support free driver	USB Video Class(UVC)
Pixel Size	1.4µm x1.4µm	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	2592 (H) *1944 (V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	Fixed lens DFOV: 65Degree HFOV: 52Degree IR Filter: 650±10nm	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)

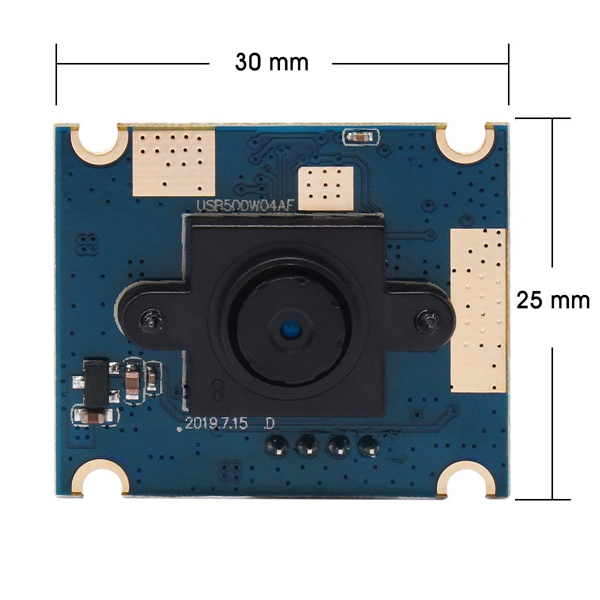

Board Size	30x25mm	Certifications	FCC and CE
Mini illumination	0.1lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	150mW- 200mW
OTG protocol	USB2.0 OTG	Special function	Mini Size, fixed lens
Night vision	without night vision	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 etc. Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
