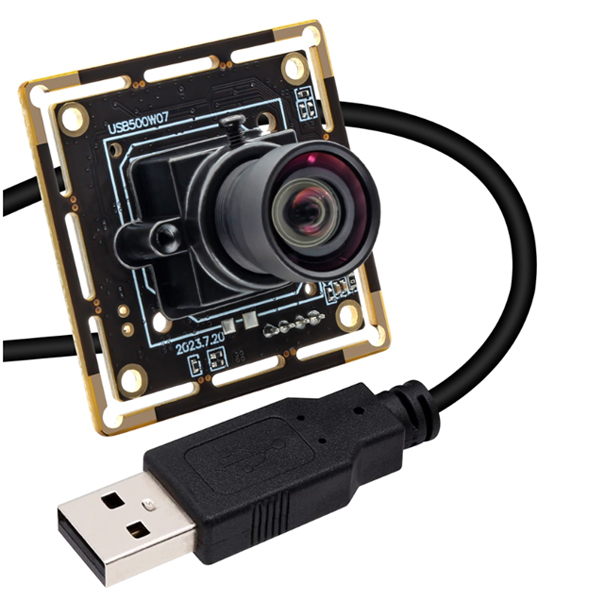

5MP USB Camera Module IMX335 Sensor 30fps Free Driver Mini Board with No Distortion Lens
Product Features
*5Megapixel USB Camera resolution up to max.2592 (H) x 1944 (V) pixels
*CMOS Sony IMX335 sensor for HD image,Sensor Size 1/2.8 inch .
*High Frame Rate 30fps at 1944P 5MP 30fps , 1920x1080P 30fps .
*USB With Camera , High speed USB1.1&2.0 compatible, occupy less bandwidth
*No Distortion lens, M12 Mount V100 FOV 79degree .
*Suppor MJPEG YUY2 picture format.
*Camera with UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Free driver to work ,just plug and play
Description:
5MP USB Camera 30fps 1944P 1080P High Speed Machine Vision Mini Webcam Board No Distortion For Golf Swing Trajectory Analysis Systems
Package Include

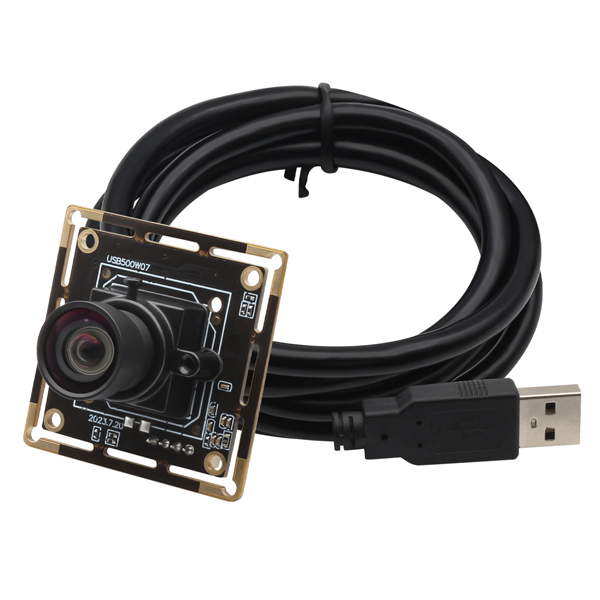

1pc of 5MP IMX335 USB Camera with No Distortion lens
1pc of 1m USB Cable (Other lenght please contact the seller)
Other Model Options:
With no distortion lens:
SMK-USB500W07-V83 (HFOV about 81 degree) SMK-USB500W07-L100 (HFOV about 81 degree)
SMK-USB500W07-V100 (HFOV about 79 degree) SMK-USB500W07-LC1100 (HFOV about 62 degree)
SMK-USB500W07-H100 (HFOV about 93 degree) SMK-USB500W07-H110 (HFOV about 107 degree)
SMK-USB500W07-H120 (HFOV about 118 degree)

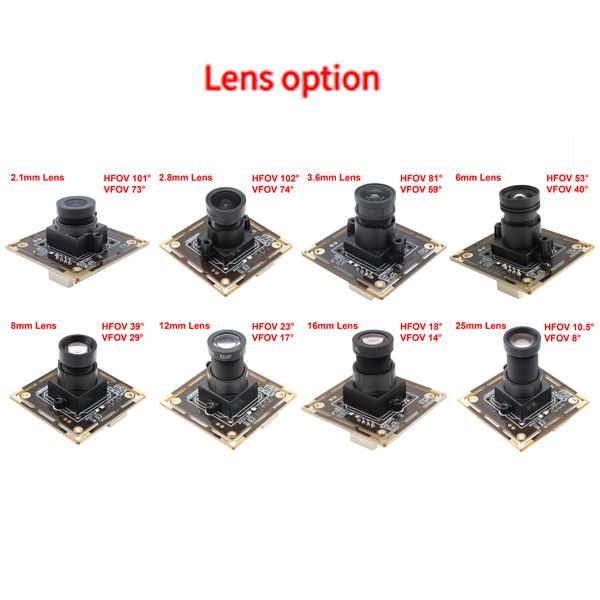

With M12 lens:
SMK-USB500W07-L21 (2.1mm, HFOV 101 degree) SMK-USB500W07-L361 (3.6mm, HFOV 81 degree)
SMK-USB500W07-L281 (2.8mm, HFOV 102 degree) SMK-USB500W07-L601 (6mm, HFOV 53 degree)
SMK-USB500W07-L80 (8mm, HFOV 39 degree) SMK-USB500W07-L12 (12mm, HFOV 23 degree)
SMK-USB500W07-L16 (16mm, HFOV 18 degree) SMK-USB500W07-L25 (25mm, HFOV 10.5 degree)
With Fisheye Lens:
SMK-USB500W07-L170 (HFOV about 138 degree) SMK-USB500W07-L185 (HFOV anout 200 degree)
With M12 2.8-12mm lens:
SMK-USB500W07-FV
Specifications:
|
Model |
SMK-USB500W07-V100 |
|
Sensor |
SONY IMX335 (1/2.8” ) |
|
Max Resolution |
2592(H) *1944 (V) |
|
Pixel Size |
2.0µm x2.0µm |
|
Image Area |
5800µmx4750µm |
|
Picture Format |
MJPEG / YUY2 (YUYV) |
|
Resolution & Frame Rate |
2592×1944 MJPEG 30fps/ YUY2 1fps 2048×1536 MJPEG 30fps/ YUY2 3fps 1920×1080 MJPEG 30fps/ YUY2 3fps 1600×1200 MJPEG 30fps/ YUY2 5fps 1280×960 MJPEG 30fps/ YUY2 5fps 1280×720 MJPEG 30fps / YUY2 5fps 1024 x 768 MJPEG 30fps/ YUY2 5fps 800 x 600 MJPEG 30fps / YUY2 20fps 640×480 MJPEG 30fps / YUY2 30fps 320×240 MJPEG 30fps / YUY2 30fps |
|
Center Definition |
1000LW/ PH (Center) |
|
S/ N (Signal Noise Ratio) |
30dB |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Min. illumination |
0.2 Lux |
|
Shutter |
Electronic rolling shutter / Frame exposure |
|
Interface |
USB2.0 High Speed |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
|
Lens |
No distortion lens, Size: 1/2.3″, HFOV: 80 Degree
Relative Illumination (Sensor) : 70%
IR Filter: 650±10nm
|
|
Power Supply & Connector |
USB BUS POWER 4P-2.0mm socket |
|
Power |
DC 5V |
|
Current |
210mA |
|

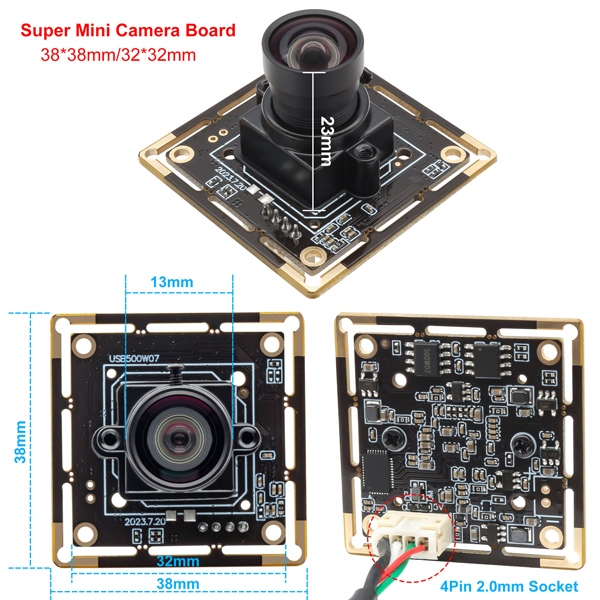

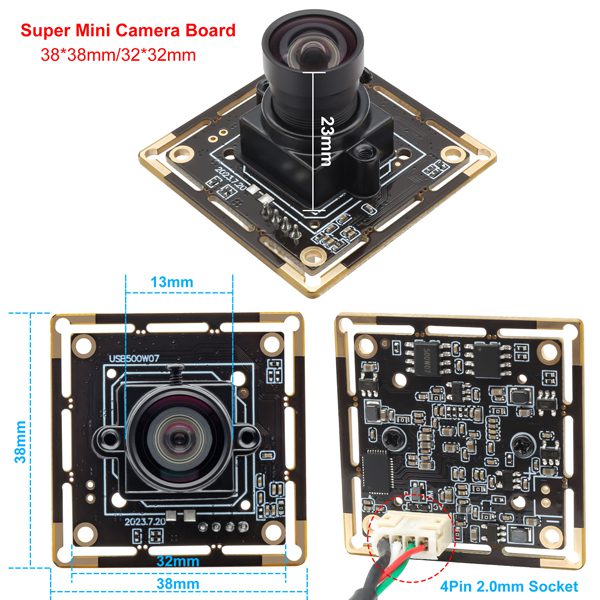

Size |
38mm × 38mm (compatible 32X32mm) |
|
Storage Temperature |
-20°C to 75°C |
|
Working Temperature |
– 10°C to 65°C |
|
USB Cable |
1M(2M/3M/5M Optional) |
|
Operating System |
Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
