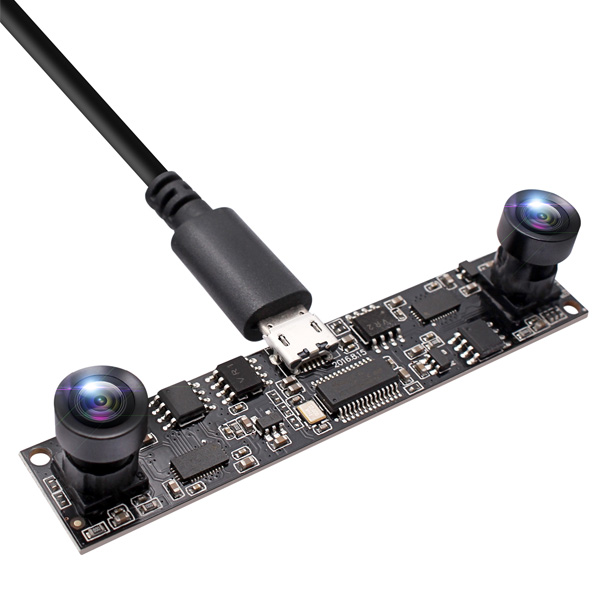

720P Cmos OV9712 Mjpeg YUY2 Dual Lens Stereo usb Camera Module with UVC for Robot vision
Product Features
* HD 720P dual lens camera module
* 1/4” CMOS OV9712 sensor for high quality image

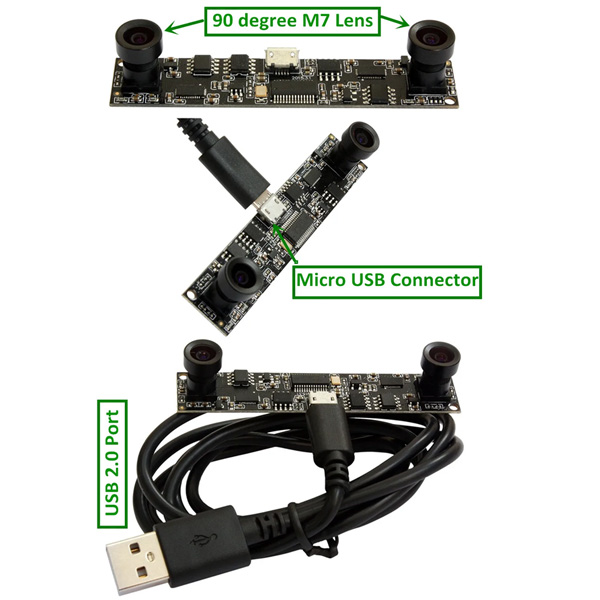

* With 2 pcs HD mini size M7 90 degree lens
* HD resolution up to 1280×720, two camera video stitched can reach 2560*720
* Super Mini size for embedded device
* Compact industrial camera solution for any PC with USB port
* Support Windows, Linux and Android OS with UVC
* Support USB2.0 OTG Protocol – Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.
Description:
Our customer normally develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video. We can supply SDK and display software to customer for integration, It can work on Android, Linux and Windows system with UVC and recognized as 2 cameras, just like two human eyes.
Package include:
1pc 720p usb camera module with dual Lens, USB Cable .
Camera Optional
Specifications:
Model | SMK-1MP2CAM001-HOV90 |
Sensor | OV9712 |
Lens Size | 1/4 inch |
Pixel Size | 3.0um X 3.0um |
image area | 3888 µm x 2430 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | MJPEG / YUV2（YUYV） |
Resolution & frame | 1280X720 MJPEG@ 30fps YUY2@10fps |
USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
S/N Ratio | 40dB |
Dynamic Range | 69dB |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
Lens Parameter | HOV: 90 degree (60/120 degree lens optional) |
Power supply | USB BUS POWER Micro USB |
Operating Voltage | DC5V |
Working current | 130mA~180mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |

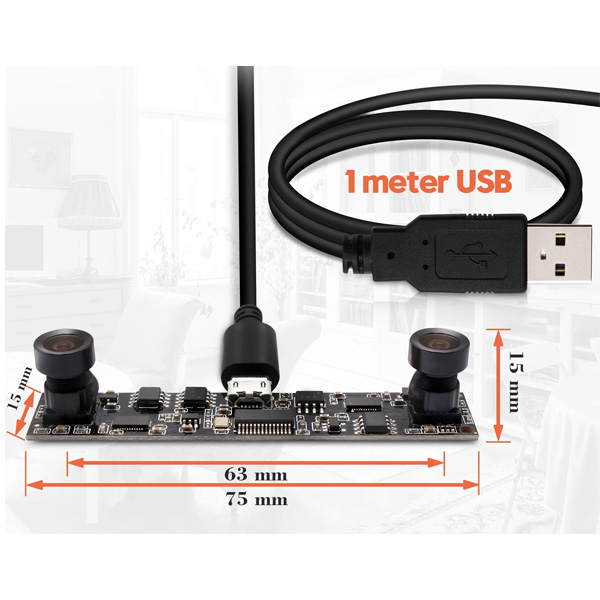

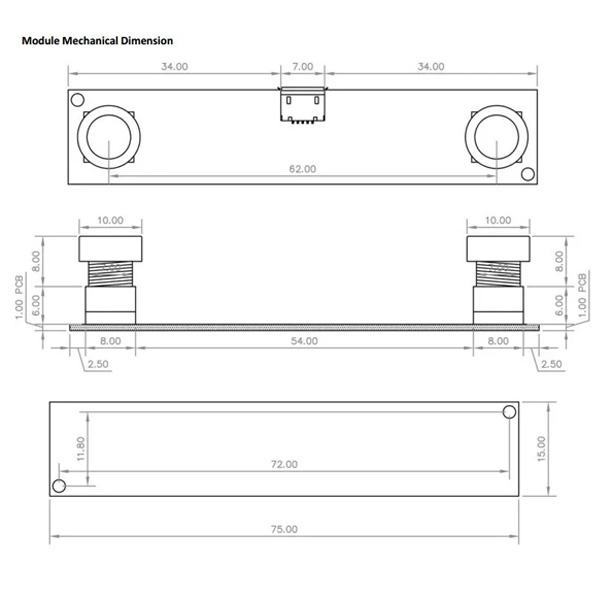

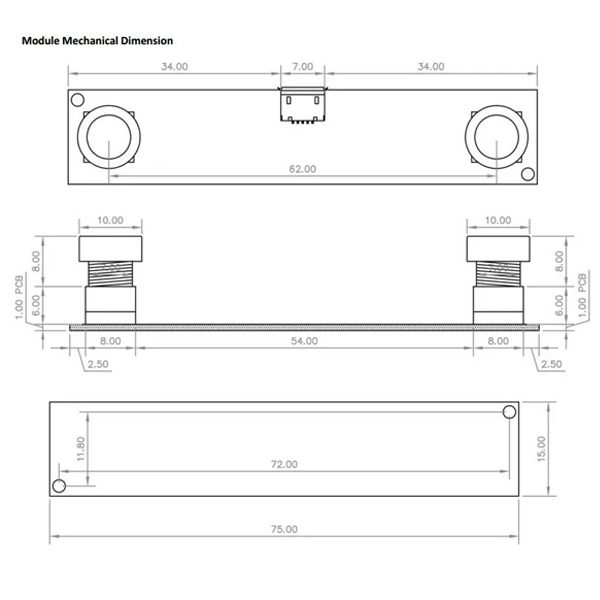

Board size /Weight | 75X15mm |
Cable | Standard 90cm |
Operating system request | WinXP/Vista/Win7/Win8 |
