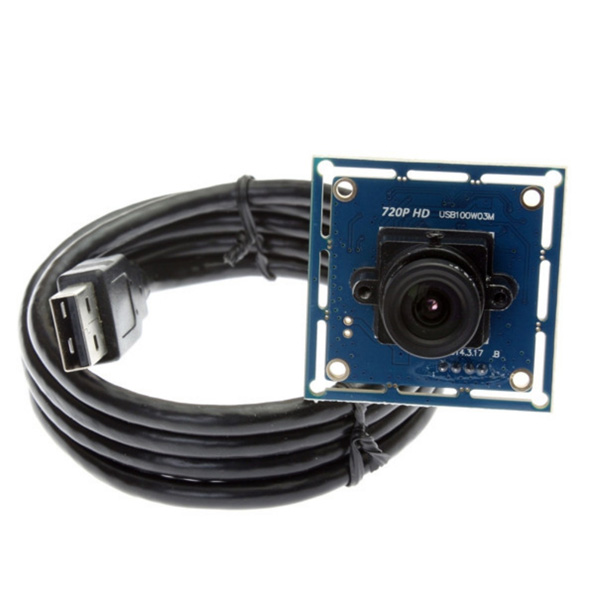

720P USB Camera Module USB2.0 OV9712 Color Sensor YUY2 MJPEG with 3.6mm Lens

Product Features

*HD USB Camera,max resolution 1280x720P, 1.0 mega pixels

*YUY and MJPEG compression format optional

*CMOS sensor NT99141 for high quality image and low power consumption

*High speed USB 2.0 interface for high resolution PC camera interface

*high pixel technology for sharp image and accurate color reproduction

*Super small outline and thin profile for embedded applications(Mini size 32*32/38*38mm)

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

*Camera with UVC

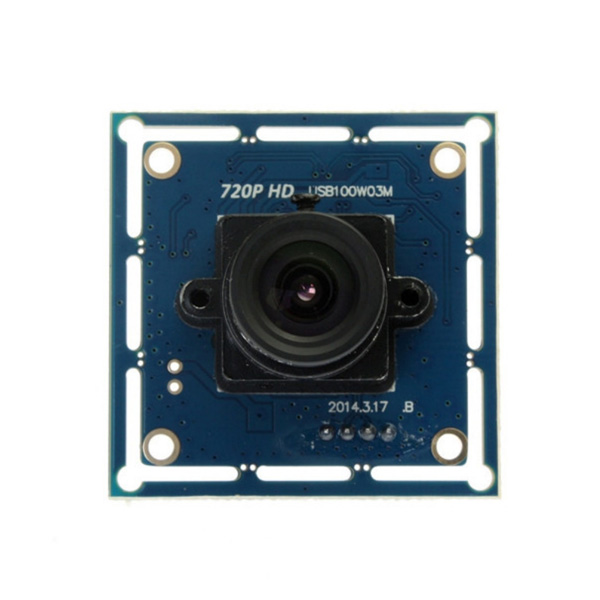

1.0MP Free Driver USB2.0 NT99141 CMOS Sensor HD MJPEG Web Camera Board 720P (3.6mm lens)

Optional Models

SMK-USB100W03M-L36 (3.6mm lens, HFOV 56 degree)

SMK-USB100W03M-L28 (2.8mm lens, HFOV 75 degree)

SMK-USB100W03M-L21 (2.1mm lens, HFOV 72 degree)

SMK-USB100W03M-L60 (6mm lens, HFOV 37 degree)

SMK-USB100W03M-L80 (8mm lens, HFOV 29 degree)

SMK-USB100W03M-L12 (12mm lens, HFOV 17 degree)

models	SMK-USB100W03M-L36( 3.6mm lens)
Sensor	NT99141
Lens size	100W, 1.0megapixel, 1280X720
Max. Resolution	640X480 VGA
Picture format	YUY2
Picture format	MJPEG
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps 960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps 176(H) x 144 (V) pixels MJPEG 30fps YUY2 30fps 160 (H) x 120 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	optional, can choose IR board
view angle	3.6mm lens, Optional other M12 Mount lens
voltage	DC 5V
current	150mA
work temperature	DEGREES(-20~70)
Size	32x32mm
Support OS	WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above
