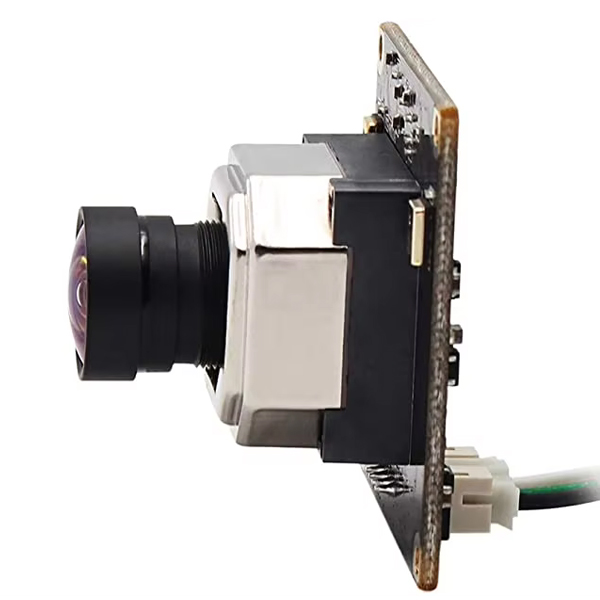

Autofocus 4K USB Camera Webcam Module HD 3840×2160 CMOS Sony IMX415 Sensor

Product Features

* 4K 3840*2160 High resolution auto focus USB Camera module

* 1/2.5”Sony IMX415 sensor for high quality image

* With HD 100 degree no distortion M12 lens, 2.1/2.8/3.6/6/8/12mm, fisheye lens optional

* With microphone for audio recording

* High frame rate – MJPEG 3840*2160 30fps

* MJPEG/YUY2 dual output format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface

* Low power consumption – ideal for portable equipment.

* UVC compliant – support Windows, Linux, Android system with UVC

Autofocus 4K Camera Module HD 3840×2160 CMOS Sony IMX415 Mini 38*38mm Board USB Camera for Windows Android Linux MAC

*high resolution USB 4K Camera module, autofocus USB Camera

*38x38mm UVC camera moudle USB with No distortion lens, with about 90-95 degree FOV

*USB 2.0 Camera module 4k resolution

*UVC usb camera for use in WindowsAndroidLinuxMac OS

*HD Megapixel HD usb webcam with 1/2.8″ Sony IMX415 sensor

Optiona model:

SMK-USB4K02AF-V100(with 100 degree M12 lens)

SMK-USB4K02AF-L21(with 2.1mm M12 lens)

SMK-USB4K02AF-L28(with 2.8mm M12 lens)

SMK-USB4K02AF-L36(with 3.6mm M12 lens)

SMK-USB4K02AF-L60(with 6mm M12 lens)

SMK-USB4K02AF-L80(with 8mm M12 lens)

SMK-USB4K02AF-L12(with 12mm M12 lens)

SMK-USB4K02AF-L16(with 16mm M12 lens)

SMK-USB4K02AF-L25(with 25mm M12 lens)

SMK-USB4K02AF-L170(with 170 degree fisheye M12 lens)

Package Include

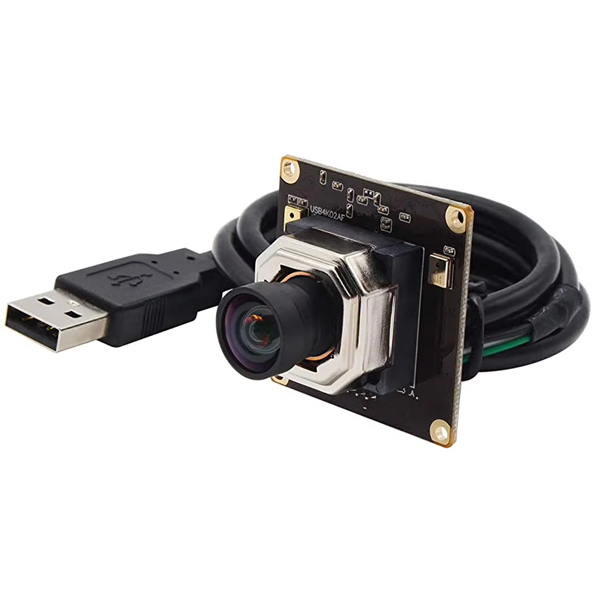

1 Piece of 4K Autofocus USB Camera with No Distortion lens ,

1 piece of USB Cable supplied . (standard 1meter )

Model	SMK-USB4K02AF-V100
Sensor	SONY IMX415 (1/2.8” )
Max Resolution	3840(H) *2160 (V)
Picture Size	1.45µmx1.45µm
Picture format	MJPEG / YUY2(YUYV)
Resolution & FPS	3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE 1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2 1920×1080@ 5fps YUY2/1280×960@5fps YUY2 1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 / 320×240@ 30fps YUY2
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	30dB
Sensitivity	0.65V/lux-sec@550nm
Low illumination	0.2lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens	Size: 1/2.5, FOV: 94.5Degree IR filter: 650±10nm

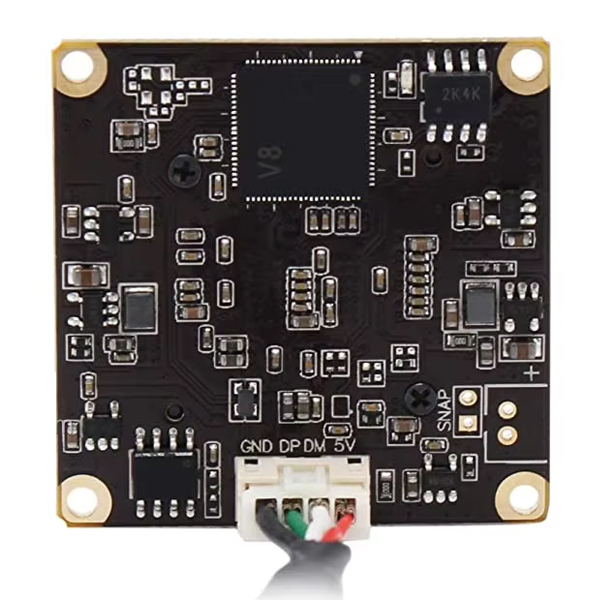

Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power	DC5V
Current	200mA

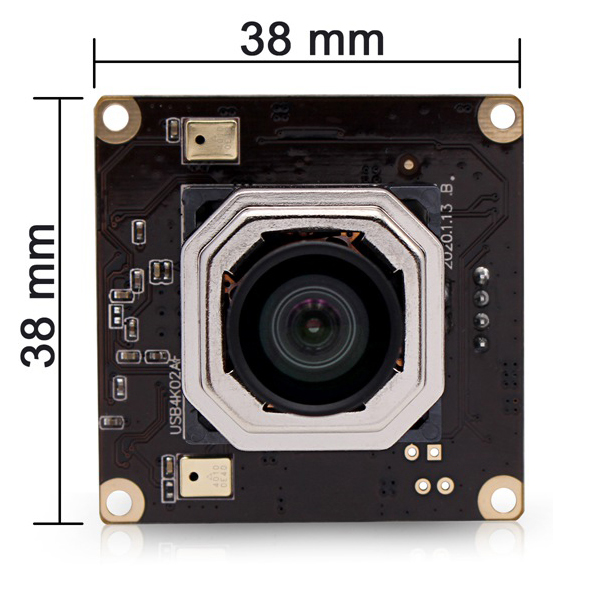

Size	38mm × 38mm
Storage Temperature	-20°C to 70°C
Working Temperature	0°C to 60°C
USB Cable	1M(2M/3M/5M Optional)
Operating System	Win XP/Vista/Win7/Win8 / Win9/ Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
