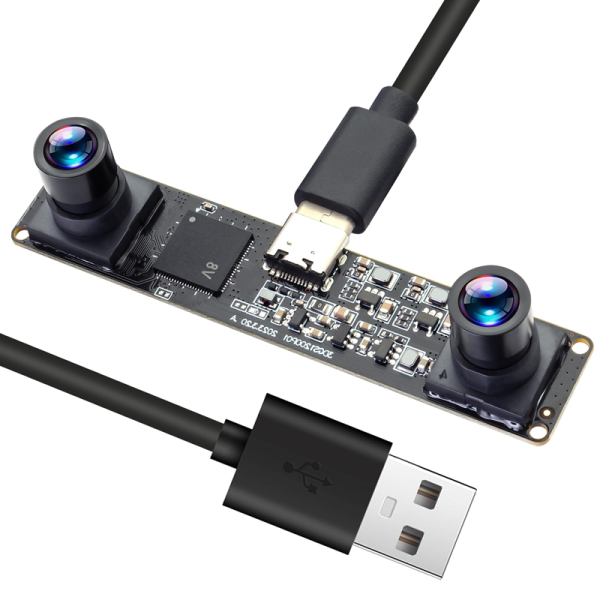

1200P Global Shutter Color CMOS Sensor Synchronous Dual Lens USB Camera Module With M9 Lens

Product Features

*Sensor: 1/2.9″ OG02B10 Sensor, color image and video

*Sychronous dual lens camera: 4 megapixel 1200P dual lens usb camera (Two images Synchronized)

*High Rate: 3200X1200@60fps /2560X720@60fps /1600X600@120fps /1280X480@120fps /640X240@120fps

*HD Lens: With dual lens, M9 lens 94 degree horizontal view angle (Many other lens optional)

*Small size: 80×16.5mm type C connector usb camera module

*UVC free driver: Plug and Play, simple to use, suitable for all kinds of users

1200P Global Shutter Color CMOS Sensor Synchronous Dual Lens USB Camera Module

Product Features

*Sensor: 1/2.9″ OG02B10 Sensor, color image and video

*Sychronous dual lens camera: 4 megapixel 1200P dual lens usb camera (Two images Synchronized)

*High Rate: 3200X1200@60fps /2560X720@60fps /1600X600@120fps /1280X480@120fps /640X240@120fps

*HD Lens: With dual lens, M9 lens 94 degree horizontal view angle (Many other lens optional)

*Small size: 80×16.5mm type C connector usb camera module

*UVC free driver: Plug and Play, simple to use, suitable for all kinds of users

*System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC

Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

*Multi-applications: 1200P Full dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system…

*Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure…

*Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi…

*Shutter Type: The global shutter sensor’s excellent low-light sensitivity makes it shoot crisp sharp and accurate complete images even for high-speed moving objects. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

Specifications:

Model	SMK-USB3DGS1200P01-V90 (HFOV 94 degree)
Sensor	OG02B10
Lens Size	1/2.9 inch
Pixel Size	4857µm x 3955 µm
Max. Resolution	3200(H)X1200(V)
Default Resolution	3200(H)X1200(V)
Compression Format	MJPEG
Resolution & Frame Rate	MJPEG: 3200X1200@60fps / 2560X720@60fps / 1600X600@120fps 1280X480@120fps / 640X240@120fps
Surface Mount Technology	SMT
Focus	Fixed Focus
Free Drive Protocol	USB Video Class(UVC)
Sensitivity	3.7V/lux-sec@550nm
Minillumination	0.1 Lux
Shutter Type	Global Shutter
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AdjustableParameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
LensParameter	M9 Lens HFOV: 94 degree, VFOV: 68 degree (Many other lens optional)
Power Supply	USB BUS POWER Type-C
Operating Voltage	DC5V
Working Current	180mA~230mA
Storage Temperature	-20～85℃
Working Temperature	-10～60℃
Board size /Weight	80X16.5mm/ About 45g
Cable	Standard 1.2M
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC- OSX10.4.8 or later
