Full HD 1080P 2K Starvis Low Light 2MP USB Camera Module with No Distortion Lens 117 Degree
Product Features
*Sensor: 1/1.8” SmartSens SC2210 Starvis CMOS
*Max Resolution: 1920×1080 MJPEG 30fps/ H.264 30fps
*Video Formats: MJPEG / H.264 / YUY2 (UVC)
*Low Illumination: 0.0001Lux, Super Low Light Performance
*HD M12 Mount No Distortion lens, HFOV about 117 Degree
*HDR Support: High Dynamic Range, Up to 100dB

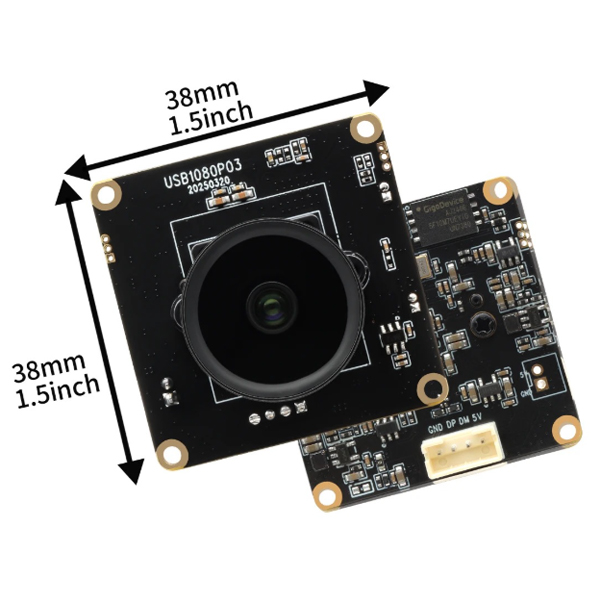

*38x38mm, small size, easy to embedded in kinds of smart machines.
*Standard with 1m cable (2m/3m/5m…optional)
*Free driver, Plug & Play
*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI…OTG support
*Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time…)
Starvis Low Light Camera Module 2MP FHD 1080P 30fps High Sensitivity HDR Webcam S/N Ratio100dB H.264 No Distortion with Wide Angle Lens
High Sensitivity 2K Starvis USB Camera Module, Model: SMK-USB1080P03 series is
This starvis camera is equipped with a high-sensitivity 1/1.8” SC2210 Starvis sensor for ultra low-light imaging.
It supports 1080P resolution, high dynamic range, and multiple video compression formats including MJPEG, YUY2, and H.264. Ideal for AI vision, industrial inspection, and low-light monitoring systems.
UVC compaliant USB 2.0 cameras. No extra drivers are needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera.
Why choose an H.264 camera?
Package includes:
1PC of 2MP Low light Camera with No distortion lens ,
1pc of USB Cable length default 1m
Specifications:
Model | SMK-USB1080P03-H100 |
Sensor | 1/ 1.8” SmartSens SC2210 |
Max. Resolution | 1920(H)*1080(V) |
| Sensitivity | 1.08V/lux-sec |
| Pixel Size | 4.0 µm x 4.0 µm |
Compression format | MJPEG / YUY2(YUYV) / H.264 |
Resolution & frame | 1920×1080 MJPEG 30fps/ H.264 30fps / YUY2 5fps 1280×720 MJPEG 30fps/ H.264 30fps / YUY2 10fps |
| Central Definition | About 5 seconds after opening the preview software |
| Min illumination | Minimum to 0.0001Lux |
S/N Ratio | UP to 100dB |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
Lens Parameter | Standard H100= 100Degreee No Distortion lens,
Lens for options: |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 150mA~180mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |
Board size /Weight | 32X32mm（Compatible 26X26mm）/ about 30g |
USB Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | Win7/Win8/Win9/Win10/Win11 etc. |
Lens options
M12 S-mount Lens:
SMK-USB1080P03-F16L28 (2.8mm lens, HFOV 110 degree) SMK-USB1080P03-F16L4 (4mm lens, HFOV 88 degree)
SMK-USB1080P03-F16L6 (6mm lens, HFOV 60 degree)
M16 Mount Lens:
SMK-USB1080P03-F1L28 (2.8mm lens, HFOV 110 degree) SMK-USB1080P03-F1L4 (4mm lens, HFOV 95 degree)
SMK-USB1080P03-F1L6 (6mm lens, HFOV 59 degree)
M12 Mount Lens:
SMK-USB1080P03-L12 (12mm lens, HFOV 35 degree) SMK-USB1080P03-L16 (16mm lens, HFOV 28 degree)
SMK-USB1080P03-L25 (25mm lens, HFOV 16 degree)
M12 No Distortion Lens:
SMK-USB1080P03-V6 (HFOV 66 degree) SMK-USB1080P03-LC1100 (HFOV 86 degree)
SMK-USB1080P03-V100 (HFOV 101 degree) SMK-USB1080P03-H100 (HFOV 117 degree)
M12 Fisheye Lens:
SMK-USB1080P03-L170 (HFOV 190 degree)
