Full HD 1080P USB Camera 180 Degree Fisheye Lens OV2710 640X480 100fps Webcam

Full HD 1080P USB Camera 180 Degree Fisheye Lens OV2710 640X480 100fps Webcam

Product Features

* High Quality Sensor: 1/2.7″ CMOS OV2710 Sensor

* Full HD 1080P: Max Resolution 1920×1080

* High Speed, High Frame Rate:1920×1080 MJPEG 30FPS, 1280×720 MJPEG 60FPS, 640×480 MJPEG 100FPS

* Wide Angle Fisheye Lens: HFOV about 195 degree, VFOV about 123 degree

* Compact Size: 38x38mm (Compatible 32x32mm)

* Default with 1m USB Cable: other length cable optional (2m/3m/5m/0.3m/0.5m…optional)

* UVC Compliance: free driver, Plug & Play

* OTG support: can connect android tablet, smartphone… via OTG cable

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

Description:

Optional Models

No/Macro Distortion Lens:

SMK-USBFHD01M-H100 (HFOV 100 degree, VFOV 67 degree) SMK-USBFHD01M-H110 (HFOV 113 degree, VFOV 76 degree)

SMK-USBFHD01M-H120 (HFOV 125 degree, VFOV 87 degree) SMK-USBFHD01M-L100 (HFOV 87.5 degree, VFOV 55 degree)

SMK-USBFHD01M-L297 (HFOV 92 degree, VFOV 60 degree) SMK-USBFHD01M-V100 (HFOV 85 degree, VFOV 53 degree)

SMK-USBFHD01M-LC1100 (HFOV 68 degree, VFOV 41 degree)

Wide Angle Fisheye Lens:

SMK-USBFHD01M-L170 (HFOV 155, VFOV 83) SMK-USBFHD01M-L180 (HFOV 195, VFOV 123)

Normal M12 Lens:

SMK-USBFHD01M-L12 (HFOV 25, VFOV 14) SMK-USBFHD01M-L80 (HFOV 42, VFOV 23)

SMK-USBFHD01M-L60 (HFOV 53, VFOV 30) SMK-USBFHD01M-L36 (HFOV 90, VFOV 46)

SMK-USBFHD01M-L28 (HFOV 113, VFOV 61) SMK-USBFHD01M-L21 (HFOV 117, VFOV 60)

Package Include :

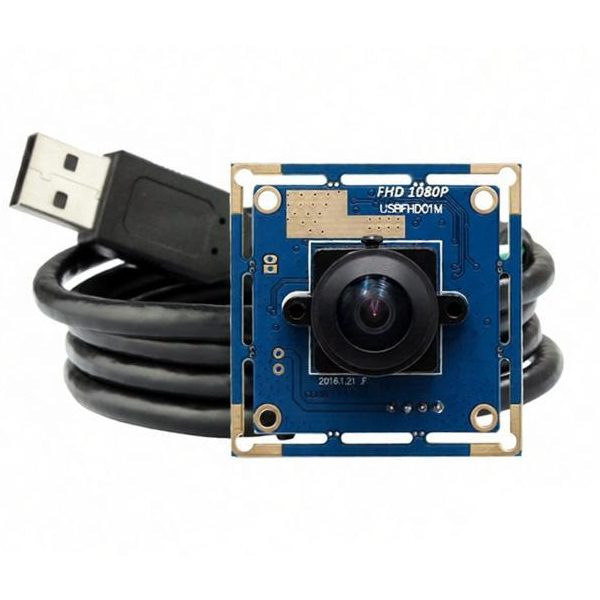

1pc of 2MP USB Camera

1pc of 1meter USB Cable supplied

Specifications:

Model	SMK-USBFHD01M-L180
Sensor	OV2710
Sensor Size	1/2.7 inch
Pixel Size	3μm x 3μm
image area	5856 μm x 3276 μm
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
Special function	Lens correction/ Defective pixel correction/ Black sun cancellation
Mini illumination	0. 05lux
Shutter Type	Electronic rolling shutter / Frame exposure
USB protocol	USB2.0 HS/FS
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
Lens Parameter	FOV(D)187 Degree, optional 2.1/2.5/2.8/3.6/6mm/FOV(D)170 Degree
Night vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket

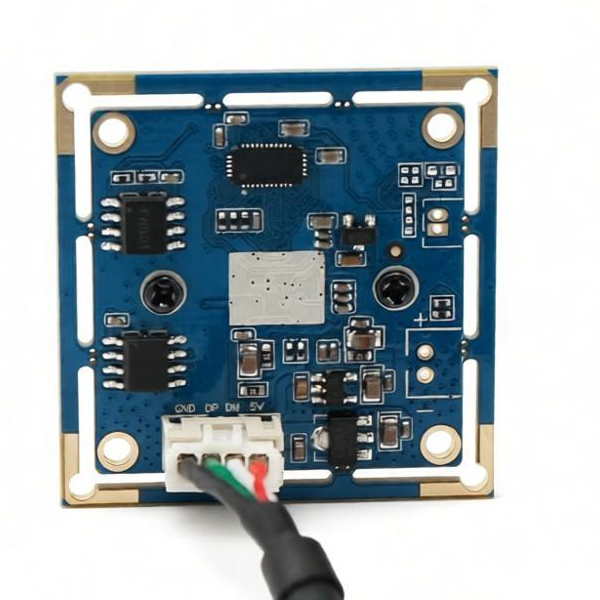

Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	120mA~220mA
Working current	0～60℃
Working temperature	-20～75℃

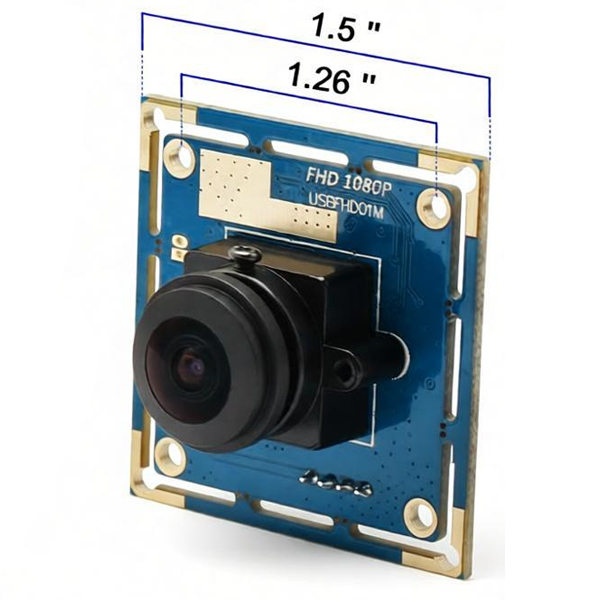

Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
