IMX415 USB Webcam CMOS 4K Fixed Focus Camera Module 110 Degree Low Distortion Lens
Product Features
* 4K 3840*2160 High resolution USB Camera module
* 1/2.5”Sony IMX415 sensor for high quality image
* With HD 110 degree low distortion M12 lens
* High frame rate – MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38×38/32x32mm for embedded application
* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
Description:
Low Distotion 4K Webcam 110degree Lens 3840×2160 30fps CMOS Sony IMX415 Machine Vision Embeded Industrial Camera Module Security CCTV for Automatic vending machine
1) 4K Fixed focus Webcam High resolution , Max resolution 3840×2160 @30fps
2) Advanced Sony (1/2.8” ) IMX415 image sensor
3) High quality lens, Standard H110 none distortion Lens, optional other M12 Mount lens ,like 2.1/2.8/3.6/6/8/12mm lens
4) Support OS: Windows , Android,Linux , support raspberry pi,Mac
5) Compression : MJPEG&YUY2
Package include

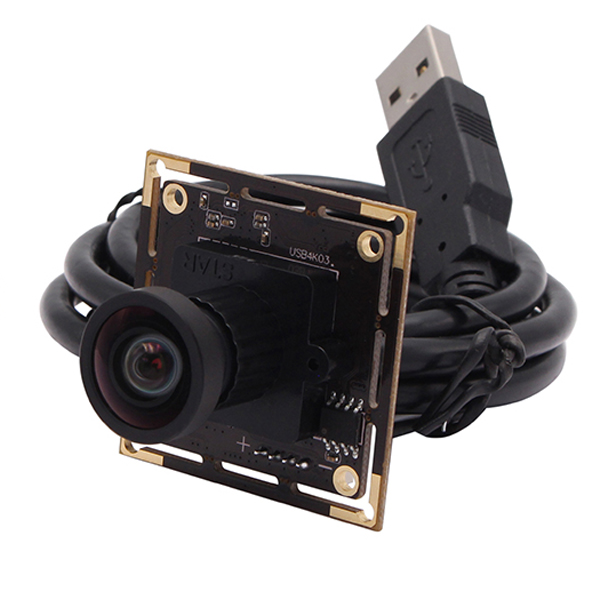

1pc 4K USB Camera with No Distortion lens, 1m USB Cable
Specifications:
Model NO: | SMK-USB4K03-H110 （Fixed Focus） |
Image Sensor | SONY IMX415 (1/2.8” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2（YUYV） |
Resolution & frame | 3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE 1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2 1920×1080@ 5fps YUY2/1280×960@5fps YUY2 1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 / 320×240@ 30fps YUY2 |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Auto Focus | Support |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |
Lens Parameter
| Size: 1/2.5, FOV: 110Degree ,No distortion Lens IR filter: 650±10nm |

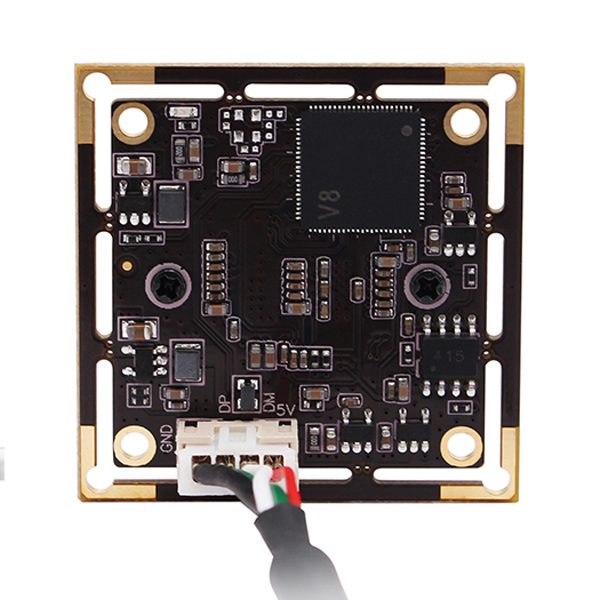

Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Board Size | 38mm × 38mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
USB Cable | 1M(2M/3M/5M optional) |
Operating System support | Windows, Linux ,Androd, Mac and etc with UVC |
