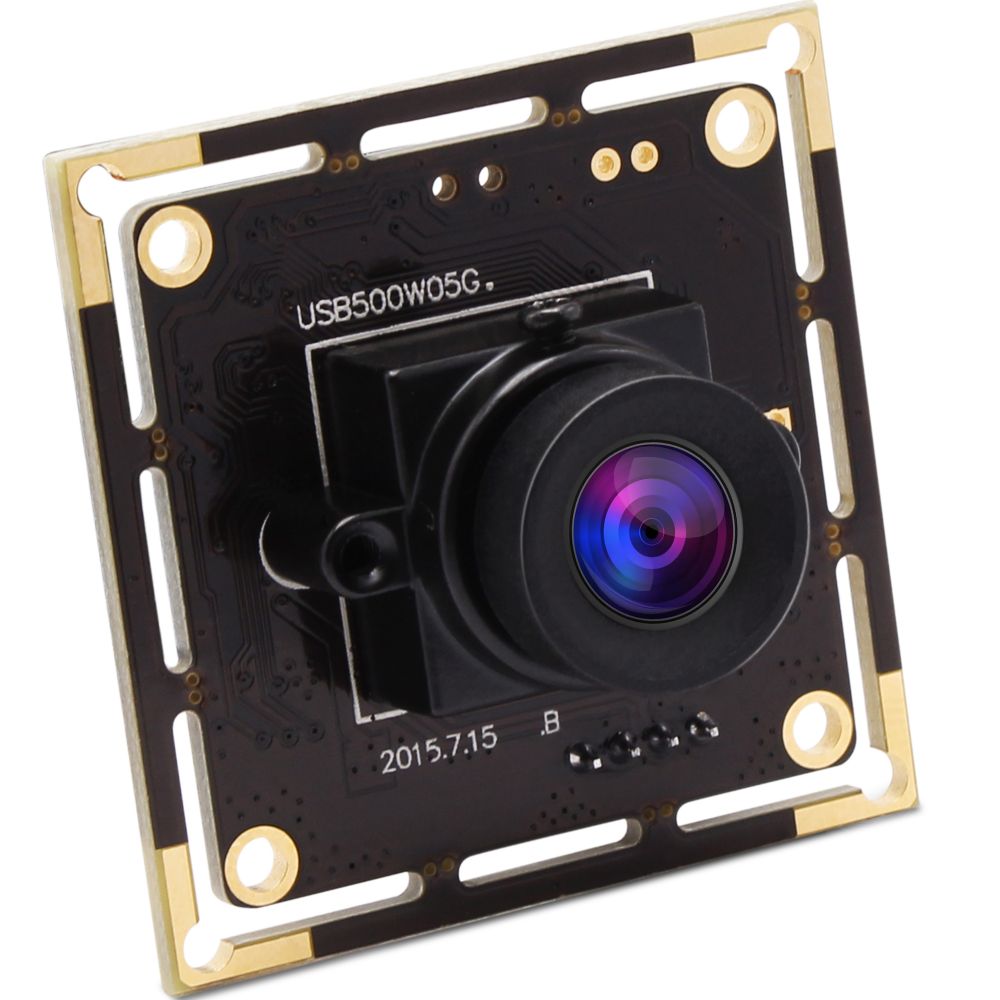

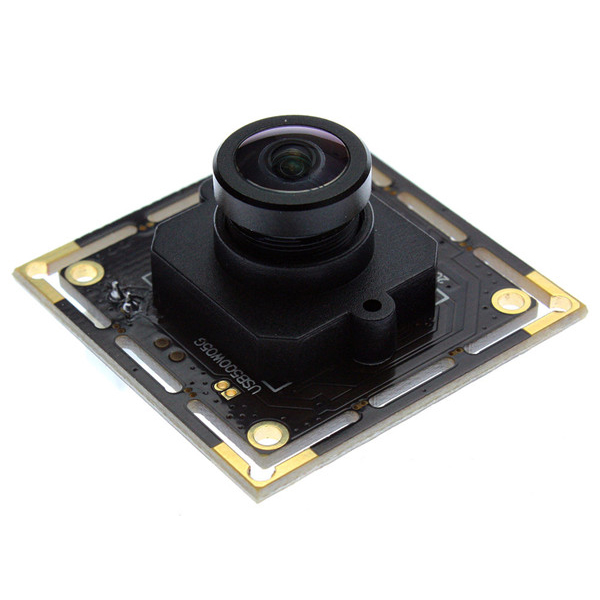

MI5100 5MP USB Camera Module USB2.0 Aptina Color CMOS Sensor 100Degree Lens

Product Features

* 5MP USB Camera module

* 1/2.5” Aptina MI5100 CMOS sensor for high quality image

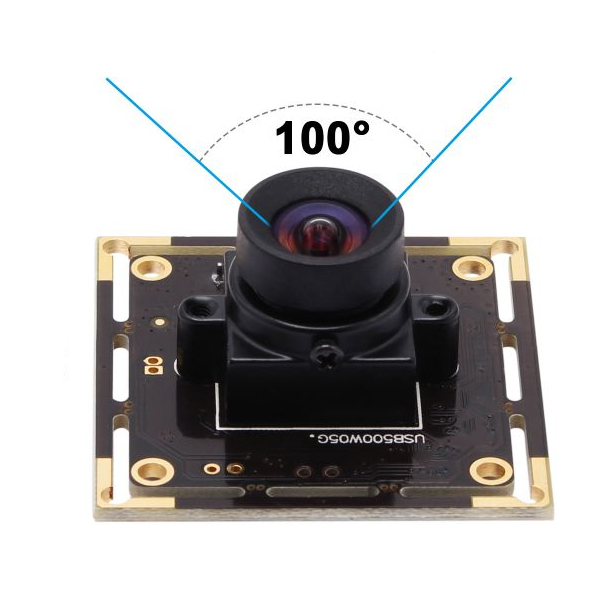

* With HD 100 degree no distortion M12 lens

* MJPEG/YUY2 dual video format optional

* Mini size 38×38/32x32mm for embedded application

* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface

* Low power consumption – ideal for portable equipment.

* UVC compliant – support Windows, Linux, Android system with UVC

* Support USB2.0 OTG Protocol – Can be external camera for mobile phone, Tablet and other device which support OTG

Free Driver Vending Robotics Webcam High Definition 2592×1944 5MP USB 2.0 Video Camera Module Professional Aptina MI5100 Sensor

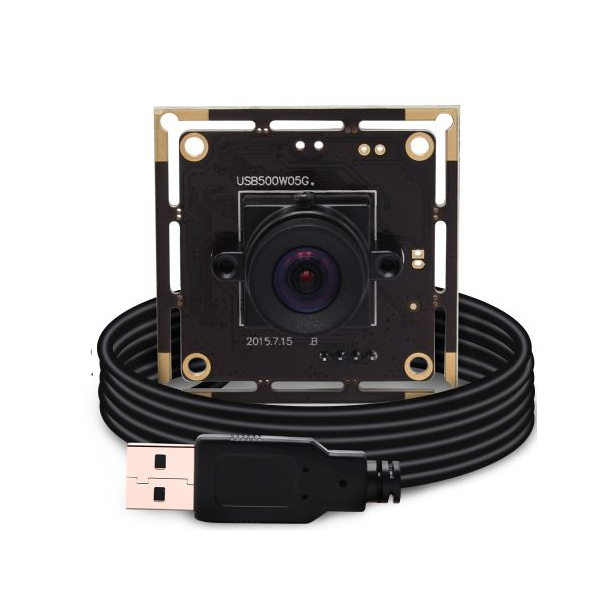

(Model:SMK-USB500W05G-FD100 ,standard 5MP USB Camera equiped with FD100 no distortion lens ,1m USB Cable )

Zero Distortion Lens optional : FOV : FD100 > L297 > LC1100

Model	SMK-USB500W05G-FD100
Sensor	Aptina MI5100
Lens Size	1/2.5 inch（4:3）
Pixel Size	2.2um
image area	5.7mm x 4.28mm
Max. Resolution	2592(H) X 1944(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	2592×1944 @ 15fps MJPEG / 2048×1536 @ 15fps MJPEG 1600×1200 @ 15fps MJPEG / 1280×1024 @ 15fps MJPEG 1920×1080 @ 30fps MJPEG / 1280×720 @ 30fps MJPEG 800×600 @ 30fps MJPEG / 640×480 @ 30fps MJPEG
S/N Ratio	38dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Mini illumination	0.1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
OTG protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Button camera	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree
LED board control interface	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	150Ma~200Ma
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size	38X38mm（compatible 32X32mm）
Operating system request	WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
