SMK-USB500W04AF-A60-2

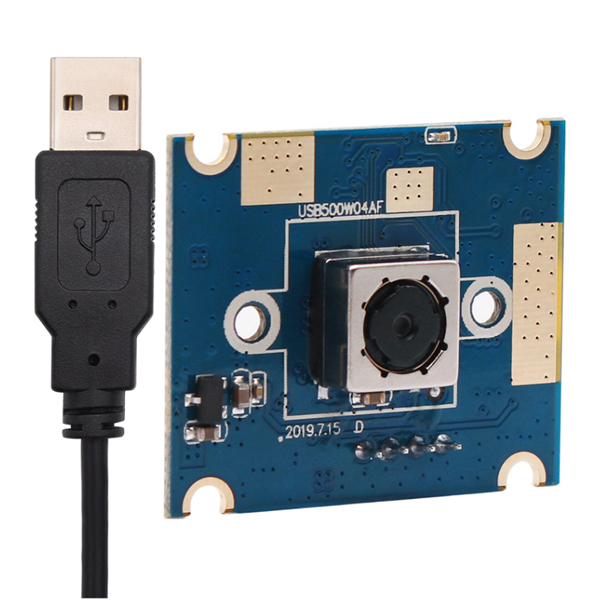

SMK-USB500W04AF-A60

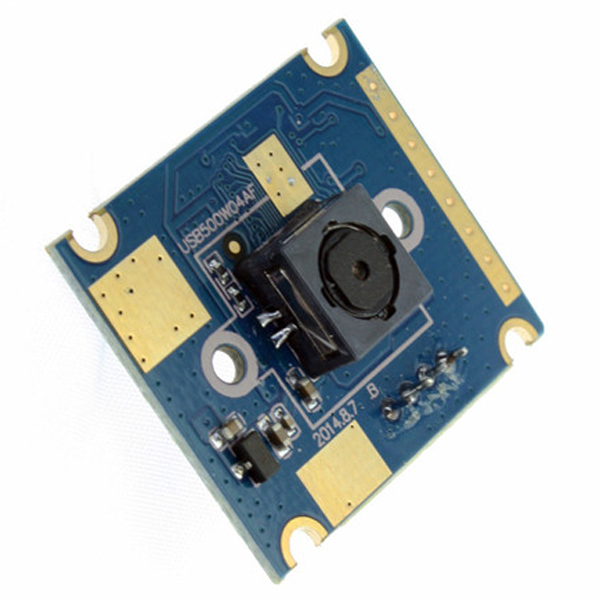

SMK-USB500W04AF-A60-1

OV5640 Full HD MINI 5MP AF USB Camera Module CMOS Sensor with 60degree Autofocus Lens

Product Features

* OV5640 CMOS Sensor for sharp image
* 5mega pixels,Resolution up to 2592*1944
* Super small 25*30mm size outline and thin profile for embedded applications
* With 60degree autofocus lens, Support focus auto mode and manual mode
* Image quality controls – Brightness,Contrast,hue,satuaration,sharpness,gamma,white balance
*Support UVC protocol,
for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
Get A Quote
Description:

Plug Play CMOS OV5640 Mini Support focus auto mode 5mega pixels camera with 60degree autofocus lens  SMK-USB500W04AF-A60

*OV5640 USB Cameras Do NOT Support OTG

Specifications: ​
Module:  SMK-USB500W04AF-A60 (60Degree auto focus lens)
Maximum Image & Transfer Rate 2592×1944@ 15fps MJPEG / 2048×1536@ 15fps MJPEG
1600×1200@ 15fps MJPEG / 1920×1080@ 15fps MJPEG
1280×1024@15fps MJPEG/ 1280×720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG
Sensor OV5640 (1/4inch )Output Formats YUYV/MJPEG
Pixel Size 1.4µm x1.4µmLens Parameter

Size: 1/4, Iris: F2.8, Focus: 3.2mm,

FOV: 65Degree
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm

Image area 3673.6µmx2738.4µmObject distance 5CM-100M
Max. Resolution 2592 (H) *1944 (V)USB Cable 1M(2M/3M/5M Optional)
Resolution 600LW/PH (Center)Module Size 30x25mm
S/N Ratio 36dBWeightabout 20g
Dynamic Range 68dBAGC/AEC/AWB/ABF Auto
Sensitivity 600mV/ Lux-secCertifications FCC and CE
Shutter Rolling shutter/
 frame exposure

Camera Board

Assembly technique

SMT (ROSH)
interface USB 2.0 High SpeedAdjustable parameter

Brightness Contrast Hue Saturation

Sharpness Gamma White
Balance Exposure Focus

protocol USB Video Class(UVC)

LED board power

 connector

Support 2P-2.0mm socketPackage CSP, Bare Die
Power supply USB BUS POWER 4P-2.0mm socketPackage LQFN-40pin
Operating Voltage DC5VWork Temperature   -20°C to 70°C

Power

consumption

150mW (VGA);

200mW (QSXGA);

Storage Temperature

 0°C to 60°C

Operating system

request

Win XP/Vista/Win7/Win8 /
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
