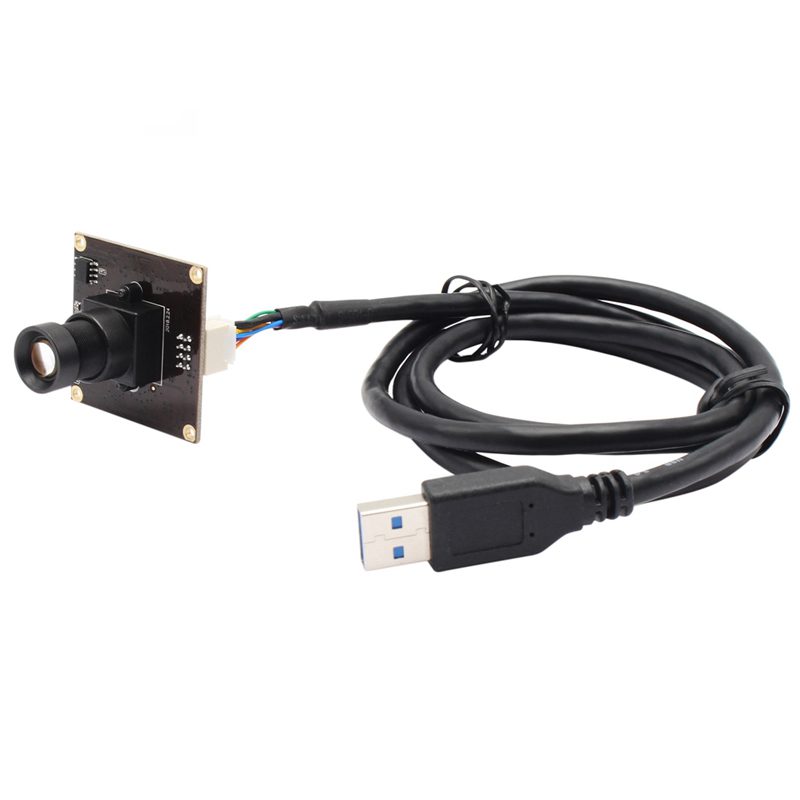

USB3.0 Camera 50fps 1080P 720P 2MP Sony Sensor USB 3.0 Webcam For Linux Android Windows

Product Features

*1080P USB 3.0 Camera Module with no distortion lens

*With 1/2.8 SONY IMX291 Color CMOS Sensor for high quality image

*High speed USB 3.0 interface for high resolution PC camera interface.

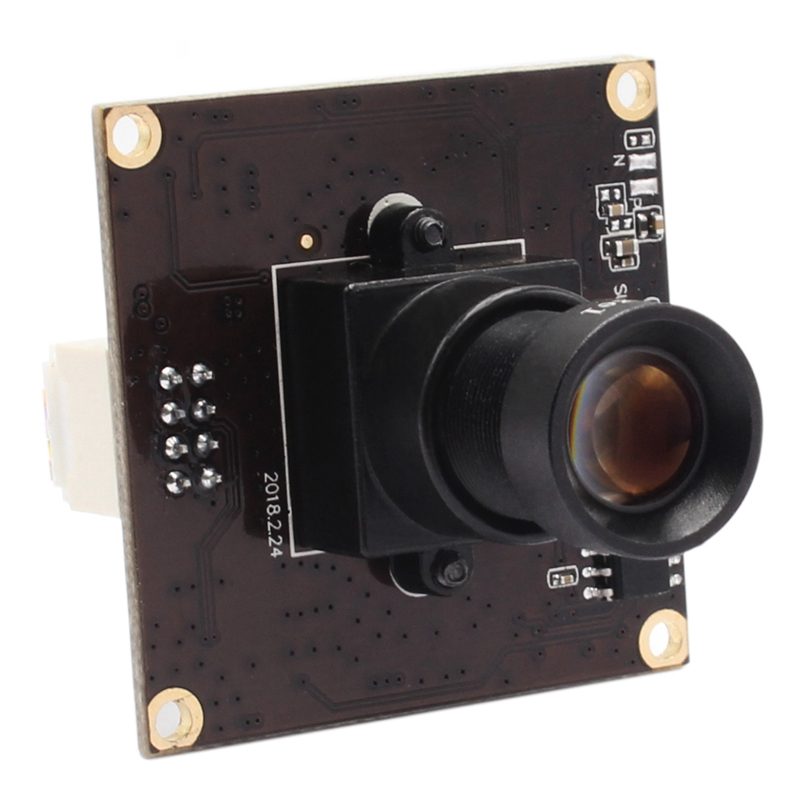

*Super small outline 38*38mm and thin profile for embedded applications.

*High frame rate– deliver 50 fps in 1920X1080 resolution.

*OTG support
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Specifications:

Model	SMK-SUSB1080P01-L80 (8mm lens)
Sensor	IMX291
Lens Size	1/2.8 inch
Pixel Size	2.9µm X 2.9µm
Max. Resolution	1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio	40dB
Dynamic Range	65dB
Sensitivity	1.9V/lux-sec@550nm
Mini illumination	0. 01lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB3.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure

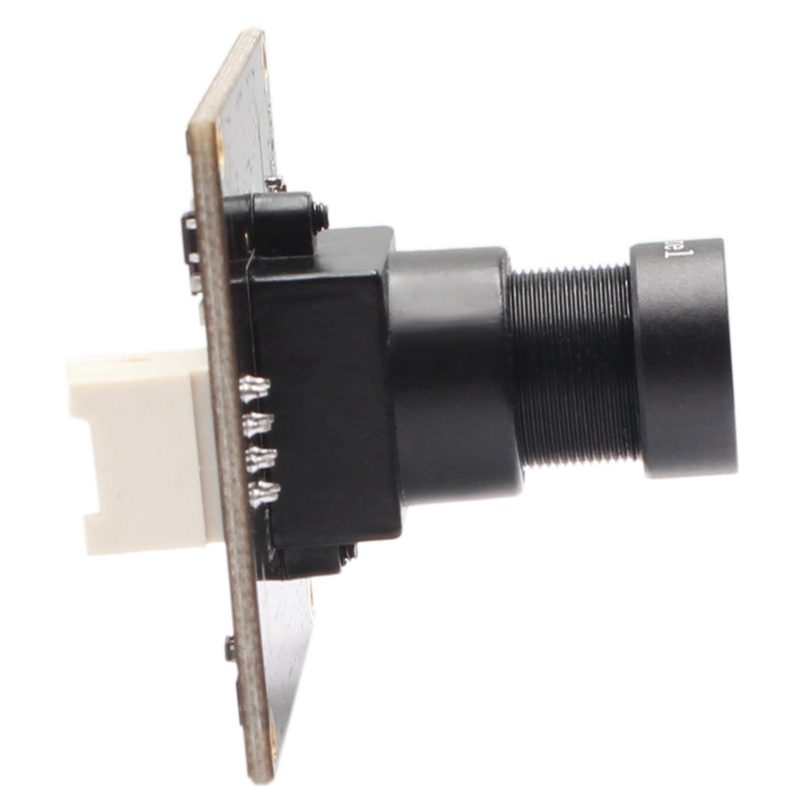

Lens Parameter	M12 Mount/ S mount 8mm lens Optional other M12 mount lens like 2.8mm,2.9mm, 3.6mm,6mm and etc
Audio input	Support
Power supply	USB BUS POWER
Operating Voltage	DC5V
Working current	170mA~210mA
Working temperature	0～70℃
Board size /Weight	38X38mm/ about 50g
Cable	Standard 1M / optional 2M,3M
Operating system request	Win XP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
