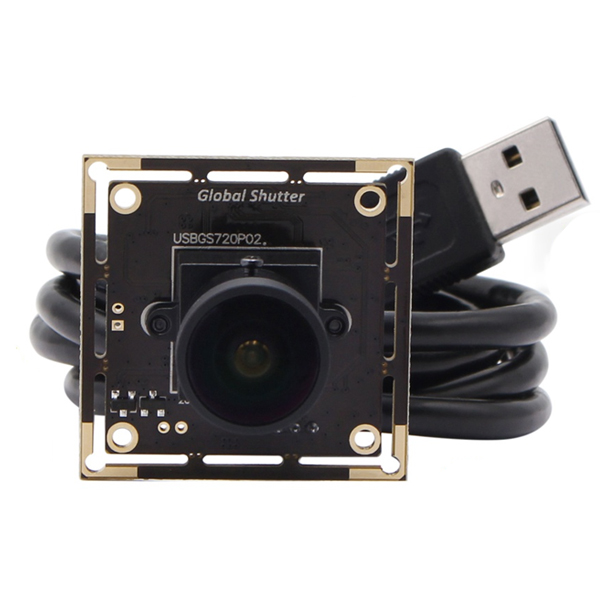

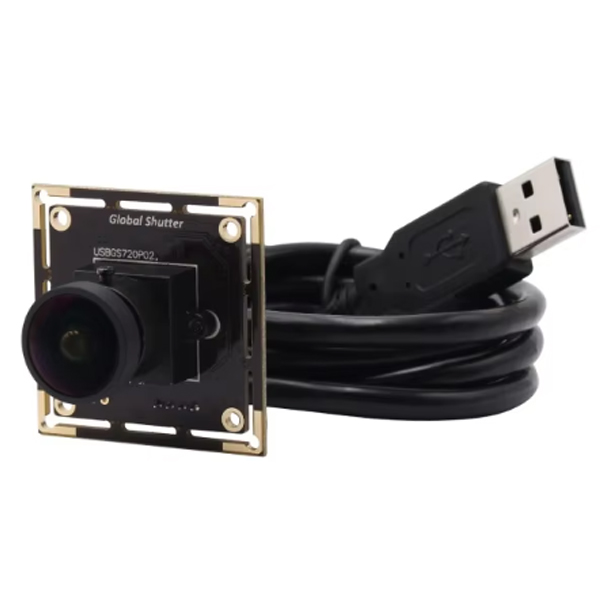

Wide Angle HD Global Shutter USB Camera Module MJPEG 60fps 1280*720 Aptina AR0144 Webcam

Wide Angle HD Global Shutter USB Camera Module MJPEG 60fps 1280*720 Aptina AR0144 Webcam

Product Features

* High quality Aptina AR0144 Sensor for high quality image ,color and mono version optional

* Shutter Type : Global shutter ,captures an image by exposing the entire sensor at once

* High frame rate- deliver 1280X720MJPEG@ 60fps

*Equiped with wide angle 170 degree lens, other M12 lens optional to change

*HD Snap webcam without shadow,. widely used for barcode scanner, drone

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Description:

720P Fisheye Global Shutter USB Camera Module MJPEG 60fps 1280*720 Aptina AR0144 Webcam for Mac Linux Android Windows

720P Global shutter camera module have color version / mono version optional ,
Default supply color version camera ,this one offer image is color /RGB mode '
Also available to select the mono version ,this offer image black and white .

Why Global Shutter

A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.

This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

Difference of Rolling Shutter and Global Shutter

Specifications:

Model	SMK-USBGS720P02-L170 (Black and white) SMK-USBGS720P02C-L170 (Color)
Sensor	Aptina AR0144
Lens Size	1/4 inch
Pixel Size	3.0µm
image area	3888µm x 2430 µm
Effective Pixels	1280(H)X720(V) 1MP
Compression format	MJPEG / YUV2 (YUYV)
Resolution & frame	1280X720MJPEG@ 60fps YUY2@5fps 800X600MJPEG@ 60fps YUY2@20fps 640X480 MJPEG@ 60fps YUY2@ 30fps
S/N Ratio	38dB
Dynamic Range	63.9dB
Sensitivity	3.1V/lux-sec@550nm
Mini illumination	0.2 Lux
Shutter Type	Global Shutter
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard L170 lens (2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional)

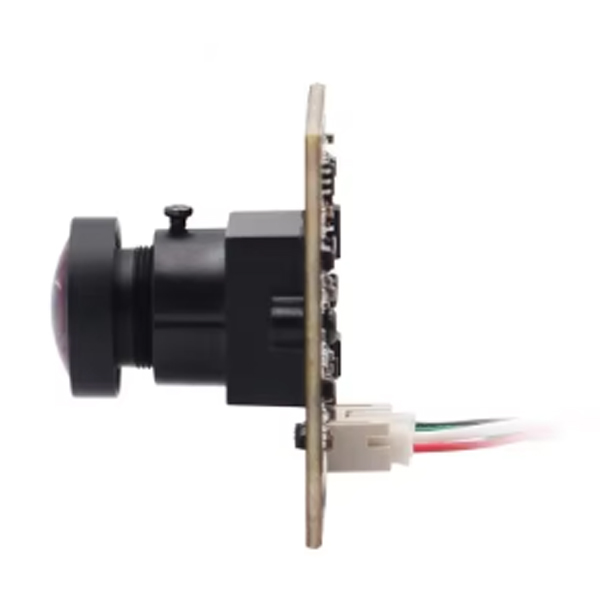

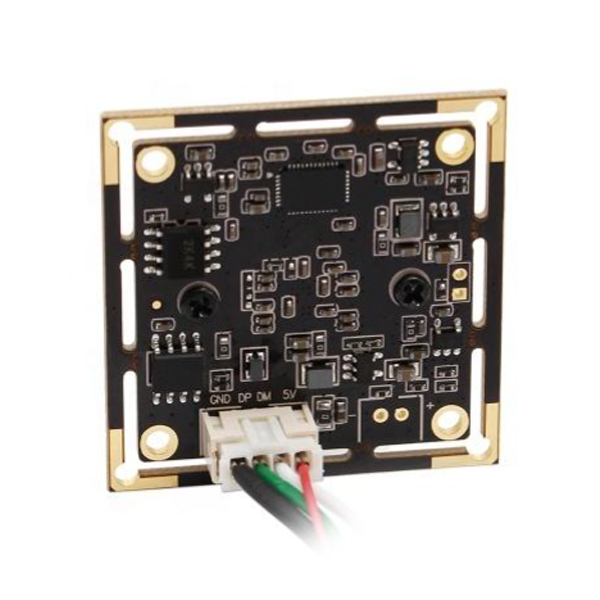

Power supply connector	USB BUS POWER 4P-2.0mm socket
Work Power Voltage	DC5V
Work Power Current	110mA~160mA
Working temperature	-10～70℃
Storage temperature	-20～75℃
Board size /Weight	38*38mm / About 30g
Cable	Standard 1m cables (2M,3M,5M optional )
Support OS	Win7 Win8 Linux 2.6 or above Android 4.0 or above
